Barco G62-W11 Projector

Barco G62-W11 11,000 Lumens, WUXGA, DLP Laser Phosphor Projector

The G62-W11 expands Barco's single-chip projector line-up with a powerful WUXGA solution delivering 11,000 lumens. Built for versatility, it opens doors to a wider range of applications while maintaining the trusted Barco service and support you depend on. Featuring a laser phosphor light source, this projector combines exceptional image quality with significantly lower maintenance than traditional lamp-based alternatives. Barco's Projector Toolset software simplifies installation and management from your computer, streamlining deployment across multiple units. With HDMI 2.0 inputs and enhanced bandwidth, the G62-W11 is 4K compatible and 3D capable, ensuring your premium content displays at its finest. Choose between black or white chassis to match your environment perfectly.

The compact design, wide lens shift range, and compatibility with other Barco products maximize installation flexibility in any space.

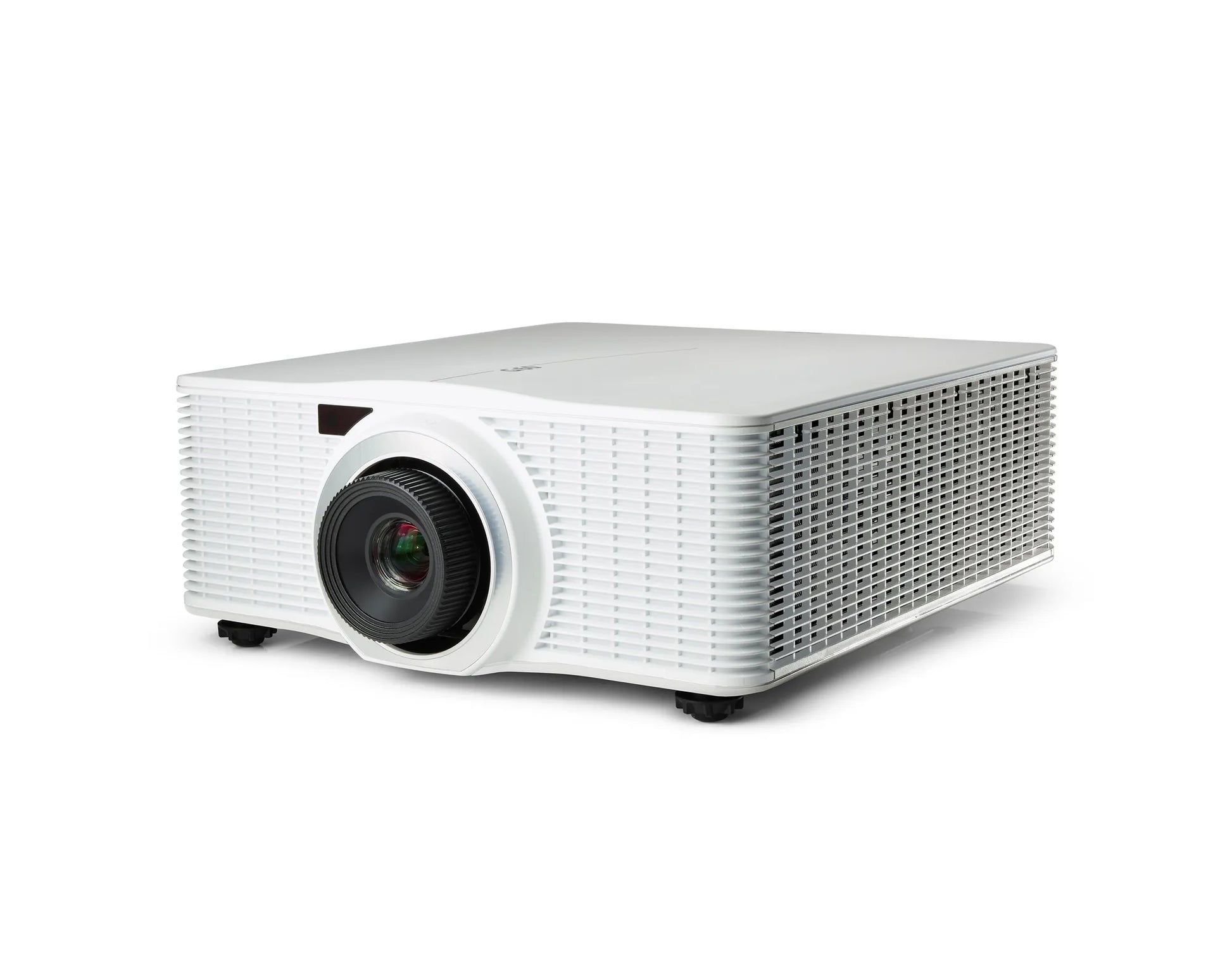

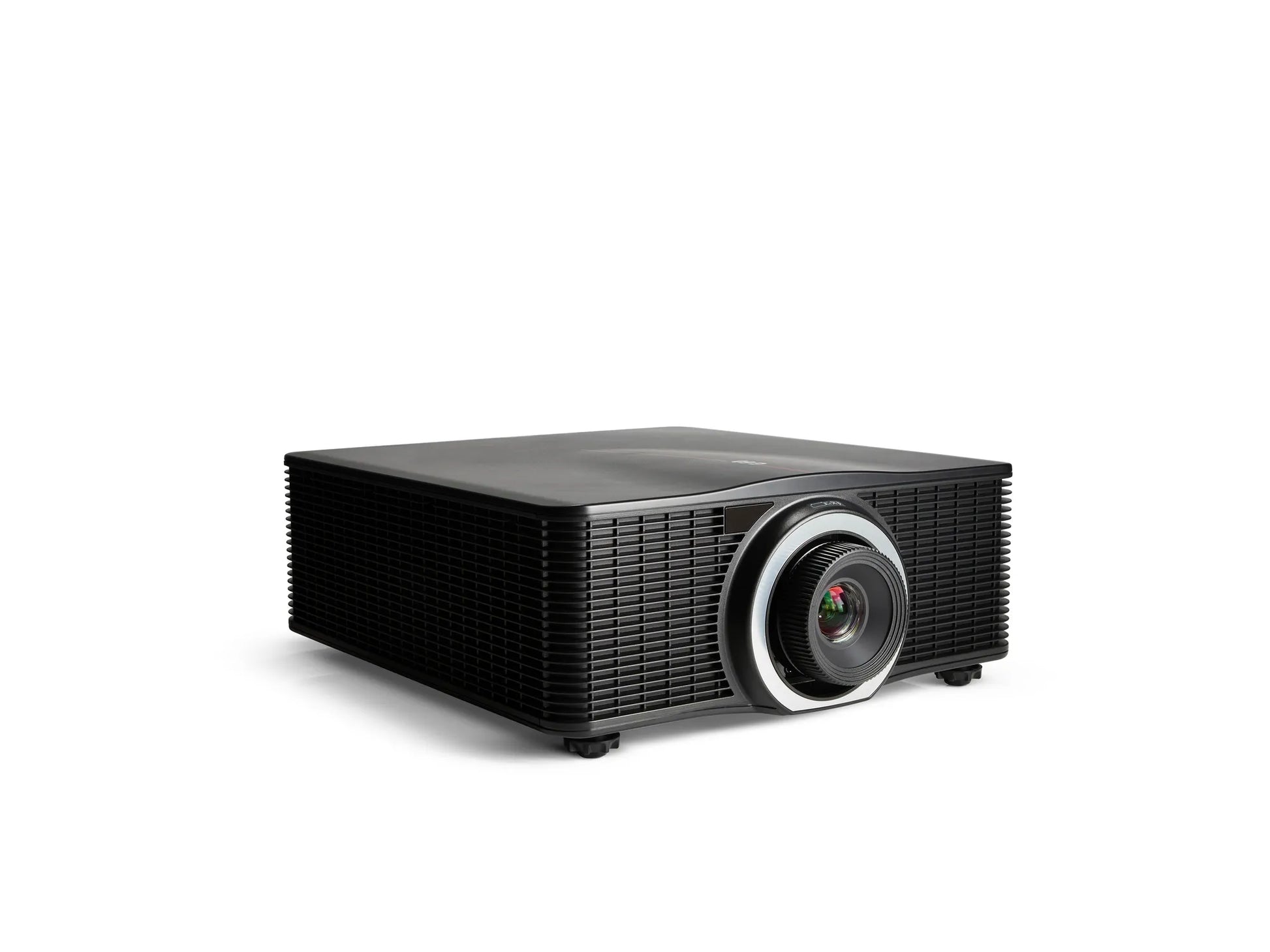

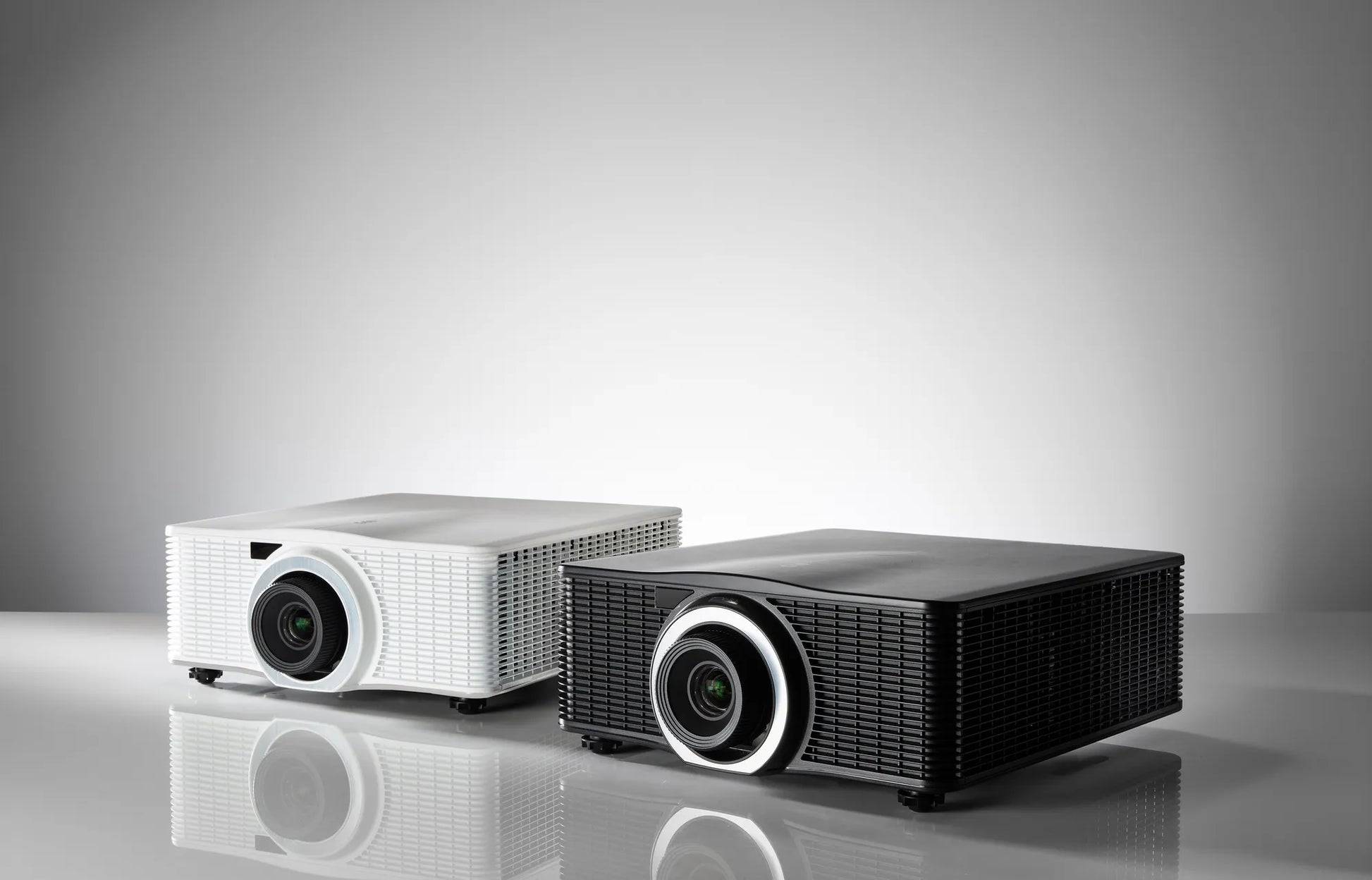

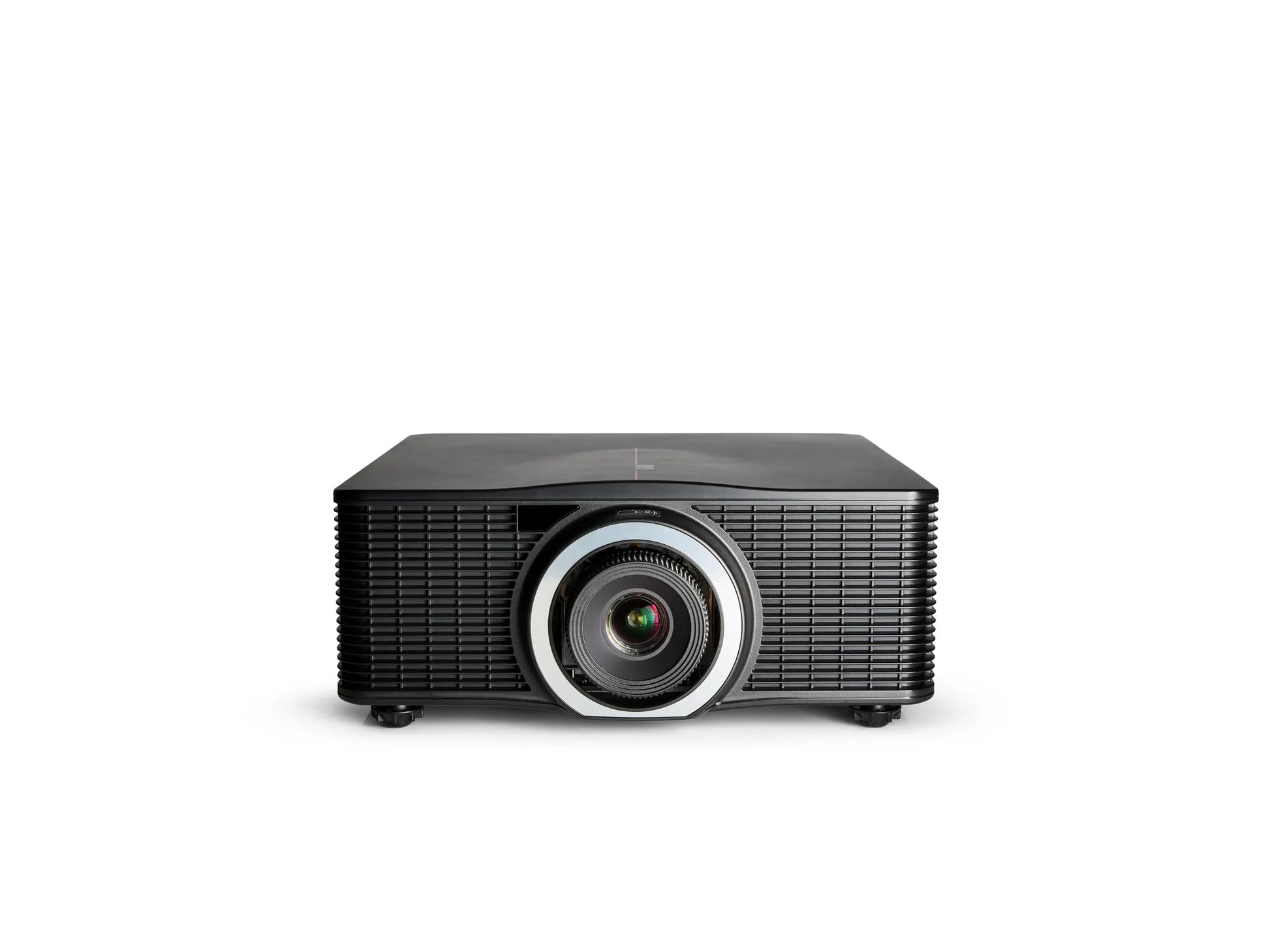

The G62-W11 Projector is available in black or white.

Features:

• Great image quality
• Optimal integration capabilities
• 4K compatible and 3D-ready
• Guaranteed service and support
• 11K Lumens
• 4K Input
• 1 Chip DLP
• Laser Phosphor

Specifications:

• Projector type: Single chip DLP laser phosphor projector
• Resolution: 1,920 x 1,200 (WUXGA)
• Brightness:
  • 10,000 ANSI lumens
  • 10,600 centre lumens
  • 11,000 ISO lumens
• Brightness uniformity: 90%
• Contrast ratio: 1,200:1 sequential; 6,000:1 dynamic; Extreme black: 750,000:1
• Light source: Laser phosphor
• Light source lifetime: Up to 20,000hrs
• Aspect ratio: 16:10
• Orientation: 360° rotation, no restrictions
• Sealed DLP core: Yes
• Colour correction: Yes
• CLO (constant light output): Yes
• Image processing: Embedded warp & blend possible via Ptoolset
• 3D: Active stereoscopic 3D
• Lens type: G-lenses - 0.36:1 / 0.37-0.4:1 / 0.65-0.75:1 / 0.75-0.95:1 / 0.95-1.22:1 / 1.22-1.53:1 / 1.52-2.92:1 / 2.90-5.50:1
• Optical lens shift:
  • Vertical up to 100%, depending on lens
  • Horizontal up to 30%, depending on lens
  • Motorized zoom and focus
  • Motorized lens shift
• Inputs: 2x HDMI In (version 2.0) (with locking screw) / 1x DVI-D (only support digital signal) / 1x HDBaseT / 1x 3D SYNC In / 1x 3G-SDI
• Input resolutions:
  • Up to 4K @60Hz
  • Refresh rates: 24Hz to 60Hz for WUXGA and 4K/4KUHD (4096 x 2160 / 3840 x 2160)
  • 4K input signals will be scaled to the projector’s output resolution
• Software tools: Projector Toolset and Insight Management Suite (IMS)
• Control: IR, RS232, RJ45, 3.5mm phone jack for wired remote

• Network connection: 10/100 Ethernet, RJ45
• Power requirements: 100-240V / 50-60Hz
• Power consumption: 810W nominal, 970W maximum
• Standby power: less than 0.5W
• BTU per hour: 2,747 BTU/h nominal; 2883 BT/h maximum
• Noise level (typical at 25°C/77°F): 35dB(A) - 39dB(A) depending on the used mode
• Operating temperature: 0 ~ 40 °C (sea level)
• Operating humidity: 10 - 85% RH, non-condensing
• Storage temperature: -10 ~ 60 °C
• Storage humidity: 5 - 90% RH, non-condensing
• Dimensions (WxLxH):
  • without feet: 484 x 529 x 195 mm / 19.1 x 20.8 x 7.7 inch
  • with feet: 484 x 529 x 206 mm / 19.1 x 20.8 x 8.1 inch
• Weight: without lens: 22.7 kg / 50.1 lbs
• Standard accessories: Power cord, wireless remote control
• Certifications: CE, FCC Class A, cTUVUS, CCC, EAC, KCC, RCM, BIS, BSMI
• Warranty: Limited 3 years parts and labour
