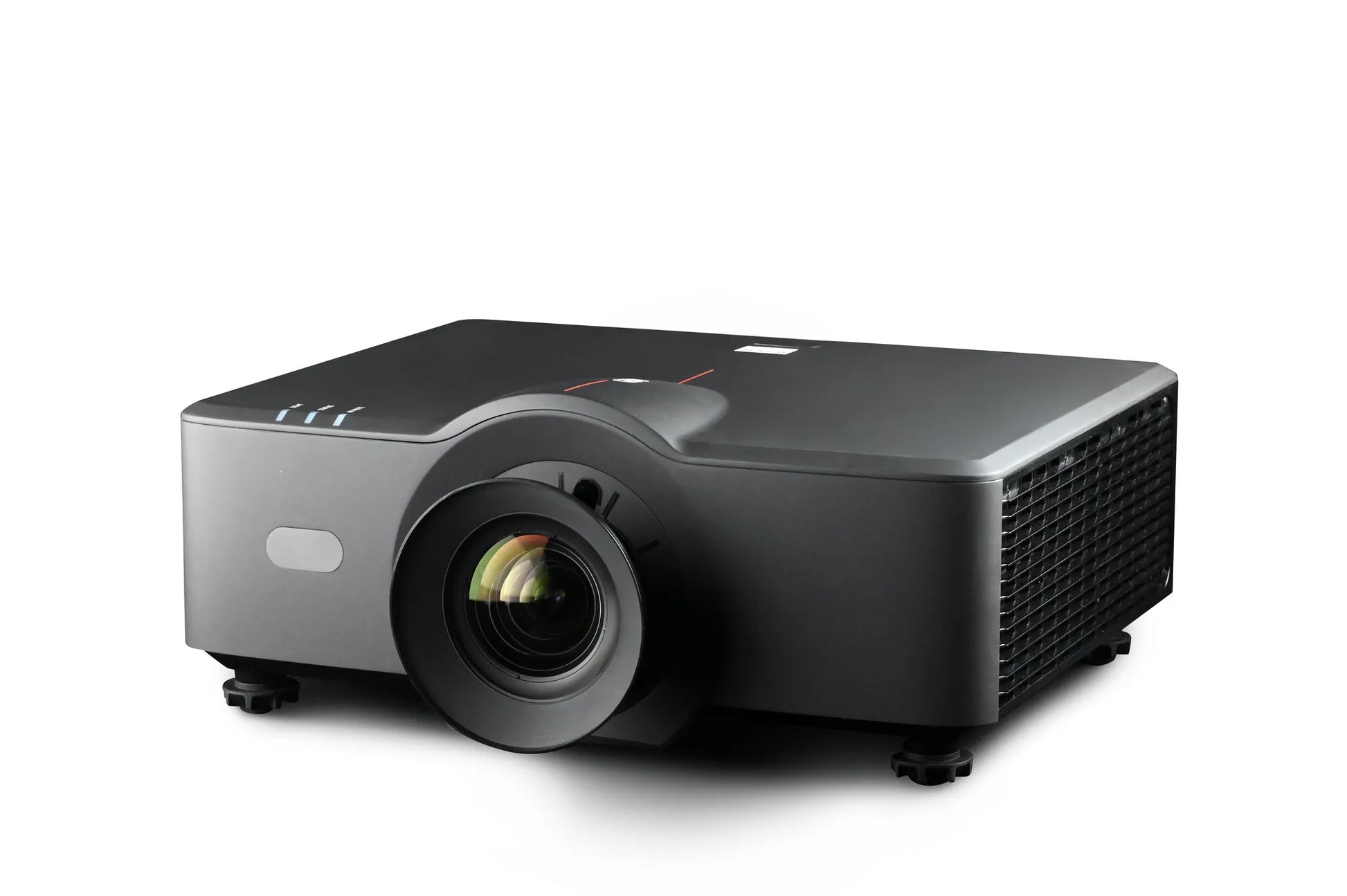

Barco G50‑W7 Projector

Barco G50‑W7 7,000 Lumens, WUXGA, DLP Laser Phosphor Projector

The G50-W7 delivers professional-grade projection in a compact, energy-efficient package.

This single-chip WUXGA projector combines laser phosphor technology with 7,000 lumens of brightness, ensuring vibrant colours and exceptional image uniformity across boardrooms, museums, exhibitions, and simulation environments. Built for flexibility, the G50-W7 integrates seamlessly with Barco's extensive G-series lens library and features a wide lens shift range to adapt to any installation.

Its compact footprint and high light efficiency make it one of the market's most space-conscious solutions without compromising performance. Backed by Barco's comprehensive service and support, the G50-W7 supports the Insights Management Suite for cloud-based monitoring and diagnostics, plus Projector Toolset software for remote installation and management.

An ideal choice for organizations seeking reliable, cost-effective projection technology.

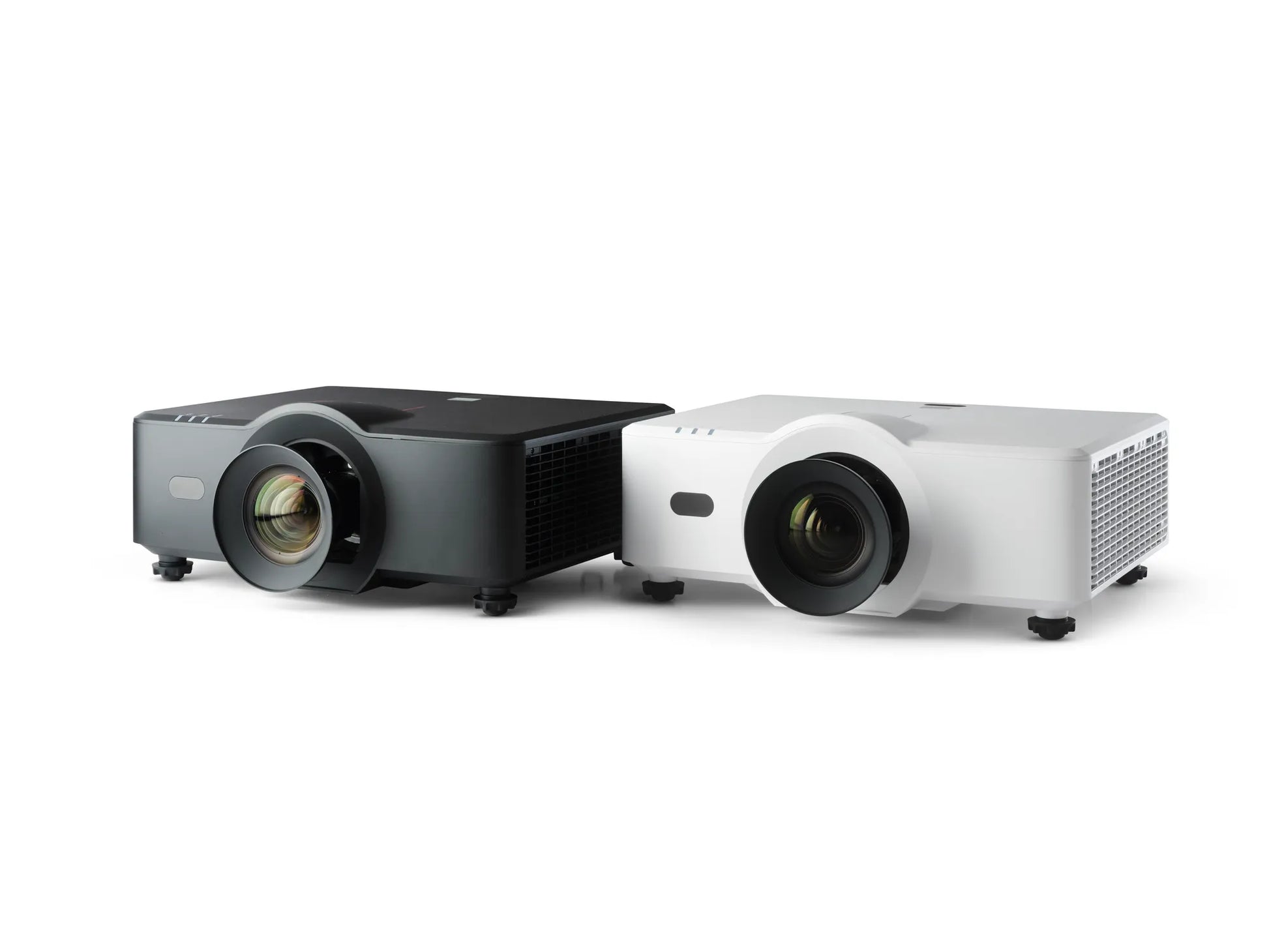

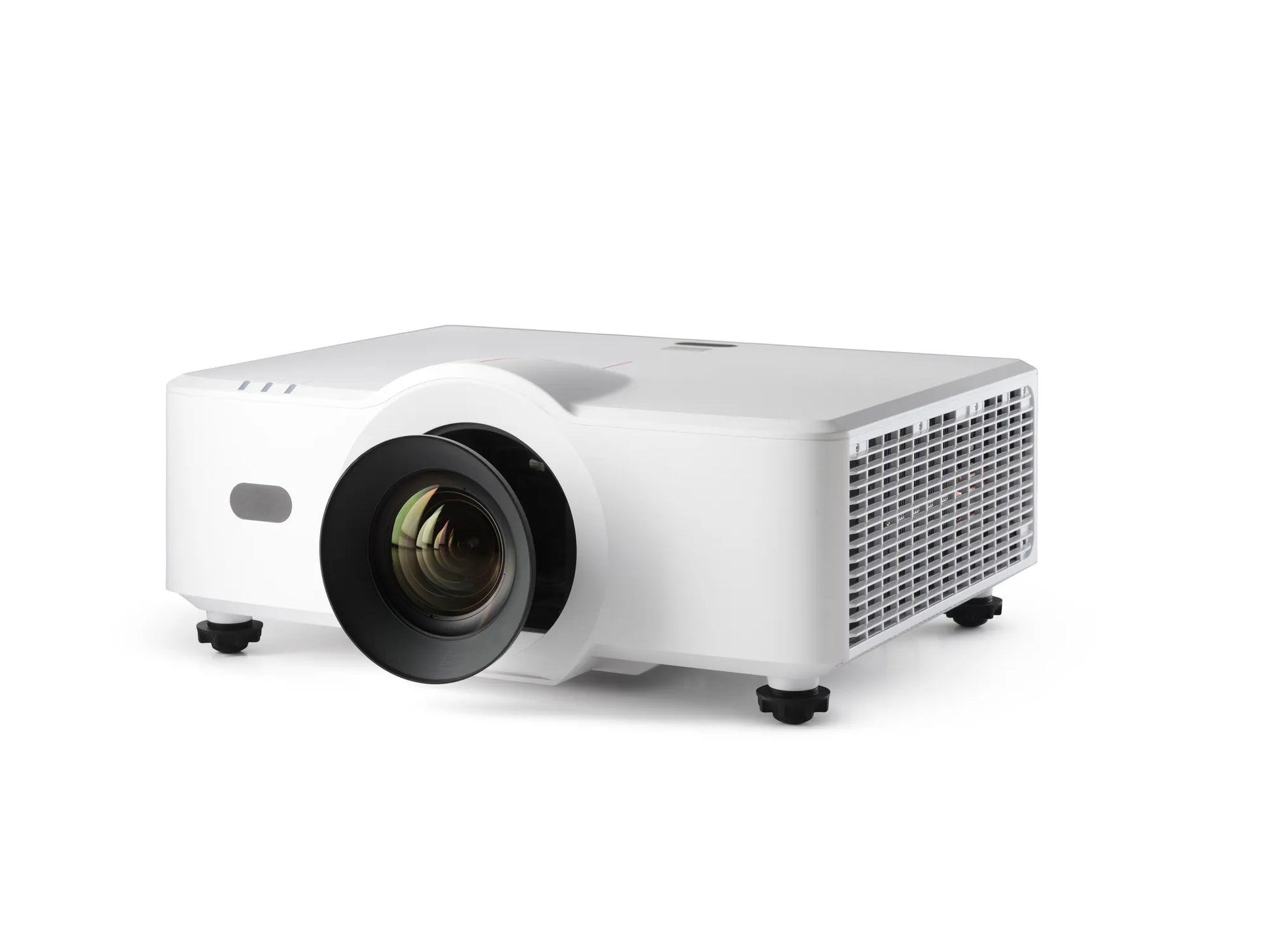

The Barco G50-W7 Projector is available in black or white, and is also available in a TAA-compliant version.

Features:

• Smallest and lightest projector in its category
• Industry leading energy efficiency in the 5-8K lumens segment
• Consistent image quality over time
• Full range of interchangeable lenses (with widest lens shift)
• Guaranteed service and support
• 4K Input
• 3D Stereo
• Reuse Lens
• Laser Phosphor
• 7K Lumens
• WUXGA 1920 x 1200
• 1 Chip DLP

Specifications:

• Projector type: Single chip DLP laser phosphor projector
• Resolution: 1,920 x 1,200 (WUXGA)
• Brightness:
  • 6,300 ANSI lumens
  • 7,000 centre lumens
  • 7,400 ISO lumens
• Brightness uniformity: 90%
• Contrast ratio:
  • 1,200:1 sequential;
  • 6,000:1 dynamic;
  • Extreme black: 750,000:1
• Light source: Laser phosphor
• Light source lifetime: Up to 20,000hrs
• Aspect ratio: 16:10
• Orientation: 360° rotation, no restrictions
• Sealed DLP core: Yes
• Colour correction: Yes
• CLO (constant light output): Yes
• Keystone correction: Yes
• Image processing: Embedded warp & blend possible via Ptoolset
• 3D: Active stereoscopic 3D
• Lens type: G-lenses - 0.37-0.4:1 / 0.65-0.75:1 / 0.75-0.95:1 / 0.95-1.22:1 / 1.22-1.53:1 / 1.52-2.92:1 / 2.90-5.50:1
• Optical lens shift:
  • Vertical up to 100%, depending on lens
  • Horizontal up to 30%, depending on lens
  • Motorized zoom and focus
  • Motorized lens shift
• Inputs: 2 x HDMI™ In (Compliant with HDMI™ 2.0b, HDCP2.2) / 1 x Display Port (1.2a) / 1 x HDBaseT(HDCP1.4) / 1 x 3D SYNC In
• Outputs: 1 x HDMI™ Out (Loop through HDMI™1/HDMI™2/HDBaseT/DP) 1 x 3D SYNC Out 1 x DC 12V Out 1 x Audio out, 3.5mm phone jack
• Input resolutions:
  • Up to 4K @60Hz
  • Refresh rates: 24Hz to 60Hz for WUXGA and 4K/4KUHD (4096 x 2160 / 3840 x 2160)
  • 4K input signals will be scaled to the projector’s output resolution
• Software tools: Projector Toolset
• Control:
  • 1 x RS232 (D-sub 9 pin) (PC Control)
  • 1 x Wired In (3.5mm phone jack) (Remote In)
  • 1 x RJ45 (LAN)
• Network connection: 10/100 Ethernet, RJ45
• Speakers: 10W / 6 Ohm *2
• Power requirements: 100-240V / 50-60Hz
• Power consumption: 390W @110V 380W @220V
• Standby power: less than 0.5W
• BTU per hour: 1331 @110V 380W @220V
• Noise level (typical at 25°C/77°F): 32dB(A) - 36dB(A) depending on the used mode

• Operating temperature: 0 - 40°C (sea level)
• Operating humidity: 10 - 85% RH, non-condensing
• Storage temperature: -10 - 60°C
• Storage humidity: 5 - 90% RH, non-condensing
• Dimensions (WxLxH): without feet: 486 x 376 x 181.2 mm
• Weight: without lends: 11.8 kg / 26.01 lbs
• Standard accessories: Power cord, wireless remote control
• Certifications: CE, FCC Class A, cTUVUS, CCC, EAC, KCC, RCM, BIS, BSMI
• Warranty: Limited 3 years parts and labour
• *Note: Brightness levels +/- 10%
