Barco G50-W6 Projector

Barco G50-W6 6,000 Lumens, WUXGA, DLP Laser Phosphor Projector

The G50-W6 is an affordable and compact single-chip WUXGA projector engineered for boardrooms, museums, exhibitions, experience centres, and entry-level simulation applications. Part of Barco's economical G50 series, it delivers exceptional price-performance with the market's smallest footprint and highest energy efficiency. Powered by laser phosphor light source technology, the G50-W6 produces superb colour accuracy and uniform image quality.

Its compact design pairs seamlessly with Barco's extensive G-series lens library and wide lens shift range, offering flexible installation options for any environment.

The projector supports Barco's Insights Management Suite, a cloud-based IoT platform for remote monitoring, diagnostics, and control. Projector Toolset software simplifies installation and management from your computer. Combined with Barco's valued service and support, the G50-W6 provides a complete, manageable projection solution.

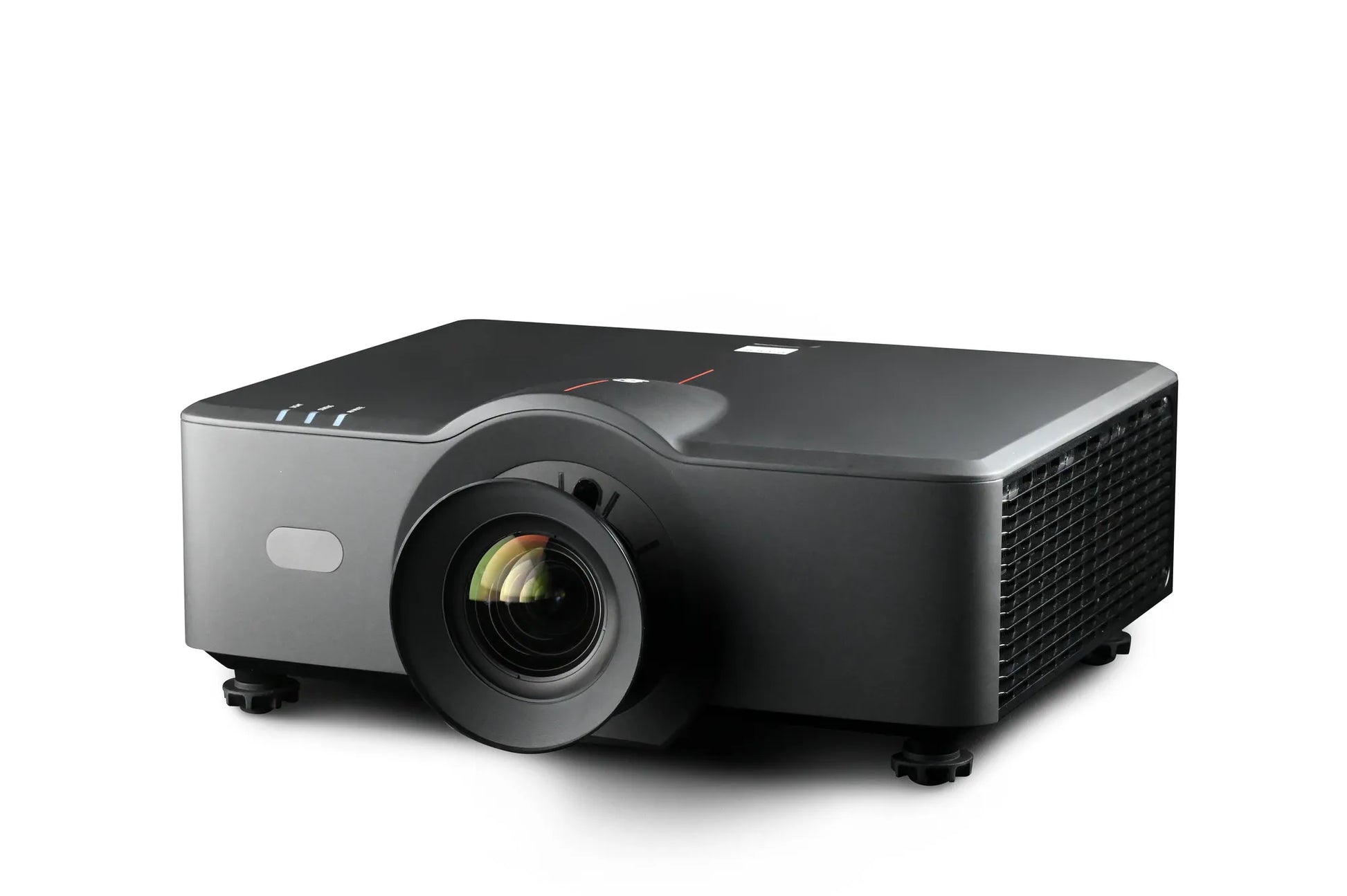

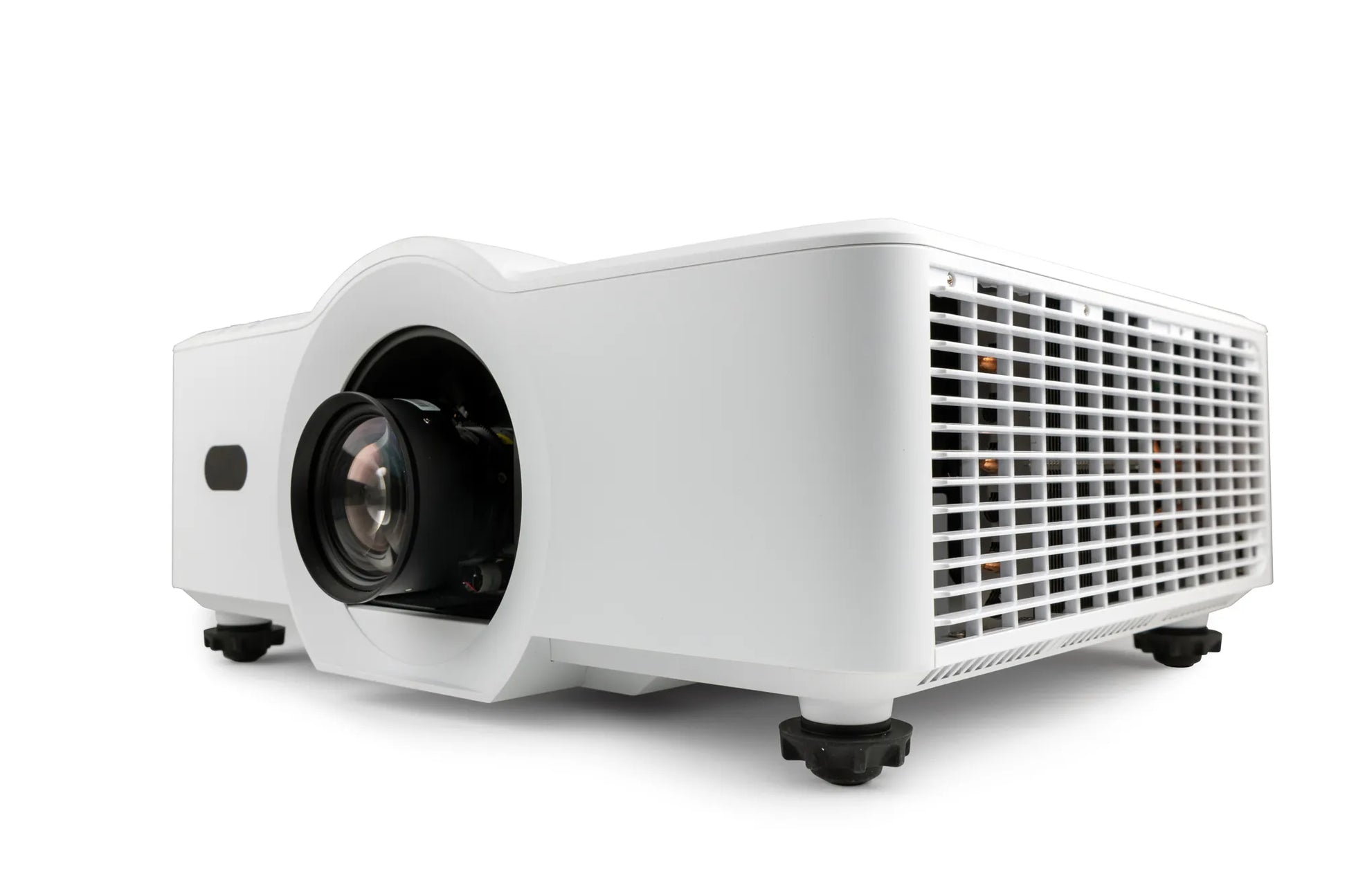

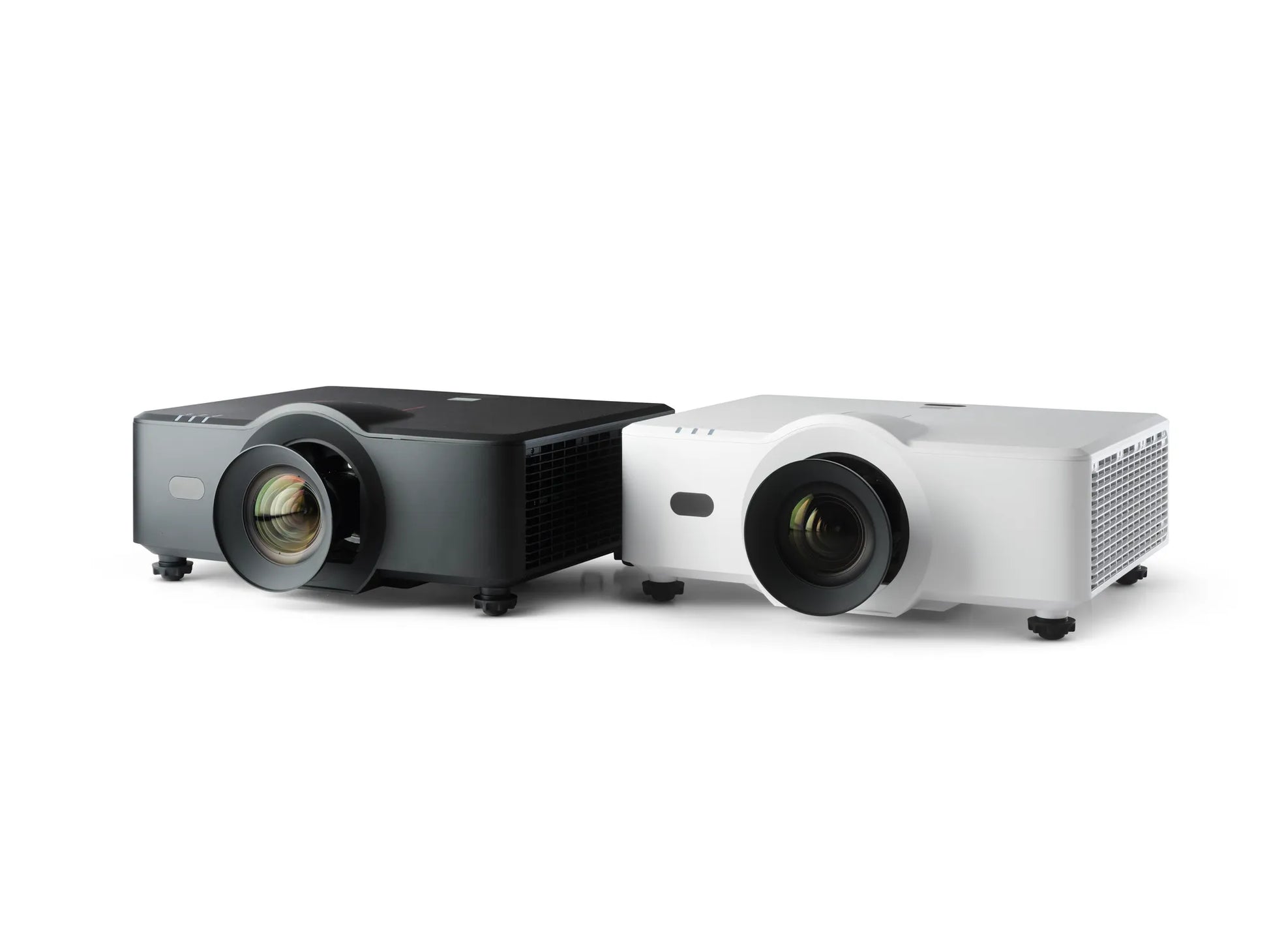

The Barco G50-W6 Projector is available in black or white, and is also available in a TAA-compliant version.

Features:

• Smallest and lightest projector in its category
• Industry leading energy efficiency in the 5-8K lumens segment
• Consistent image quality over time
• Full range of interchangeable lenses (with widest lens shift)
• Guaranteed service and support
• 4K Input
• 3D Stereo
• Reuse Lens
• Laser Phosphor
• 6K Lumens
• WUXGA 1920 x 1200
• 1 Chip DLP


Specifications:

• Projector type: Single chip DLP laser phosphor projector
• Technology: Single chip DLP laser phosphor projector
• Resolution: 1,920 x 1,200 (WUXGA)
• Brightness:
  • 5,400 ANSI lumens
  • 6,000 centre lumens
  • 6,400 ISO lumens
• Brightness uniformity: 90%
• Contrast ratio:
  • 1,200:1 sequential;
  • 6,000:1 dynamic,
  • Extreme black: 750,000:1
• Light source: Laser phosphor
• Light source lifetime: Up to 20,000 hrs
• Aspect ratio: 16:10
• Orientation: 360° rotation, no restrictions
• Sealed DLP core: Yes
• Colour correction: Yes
• CLO (constant light output): Yes
• Keystone correction: Yes
• Image processing: Embedded warp & blend possible via Ptoolset
• 3D: Active stereoscopic 3D
• Lens type: G-lenses - 0.37-0.4:1 / 0.65-0.75:1 / 0.75-0.95:1 / 0.95-1.22:1 / 1.22-1.53:1 / 1.52-2.92:1 / 2.90-5.50:1
• Optical lens shift:
  • Vertical up to 100%, depending on lens
  • Horizontal up to 30%, depending on lens
  • Motorized zoom and focus
  • Motorized lens shift
• Inputs: 2 x HDMI In (Compliant with HDMI 2.0b, HDCP2.2) / 1 x Display Port (1.2a) / 1 x HDBaseT (HDCP1.4) / 1 x 3D SYNC In
• Outputs: 1 x HDMI Out (Loop through HDMI1/HDMI2/HDBaseT/DP) 1 x 3D SYNC Out 1 x DC 12V Out 1 x Audio out, 3.5mm phone jack
• Input resolutions:
  • Up to 4K @60Hz
  • Refresh rates: 24Hz to 60Hz for WUXGA and 4K/4KUHD (4096 x 2160 / 3840 x 2160)
  • 4K input signals will be scaled to the projector’s output resolution
• Software tools: Projector Toolset
• Control:
  • 1 x RS232 (D-sub 9 pin) (PC Control)
  • 1 x Wired In (3.5 mm phone jack) (Remote In)
  • 1 x RJ45 (LAN)
• Network connection: 10/100 Ethernet, RJ45
• Speakers: 110W / 6 Ohm *2
• Power requirements: 100-240V / 50-60Hz
• Power consumption: 300W @110V 290W @220V
• Standby power: Less than 0.5W
• BTU per hour: 1024 @110V 990 @220V
• Noise level (typical at 25°C/77°F): 32 dB(A) - 36 dB(A) depending on the used mode
• Operating temperature: 0 - 40°C (sea level)
• Operating humidity: 10 - 85% RH, non-condensing
• Storage temperature: -10 - 60°C
• Storage humidity: 5 - 90% RH, non-condensing
• Dimensions (WxLxH): without feet: 486 x 376 x 181.2mm
• Weight: without lens: 11 kg / 24.25 lbs
• Standard accessories: Power cord, wireless remote control
• Certifications: CE, FCC Class A, cTUVUS, CCC, EAC, KCC, RCM, BIS, BSMI
• Warranty: Limited 3 years parts and labour
• *Note: Brightness levels +/- 10%
