Barco G100‑W25 Projector

Barco G100‑W25 25,000 Lumen, WUXGA, Single-chip Laser Phosphor Projector

The Barco G100-W25 delivers exceptional image performance with 25,000 lumens of brightness, ensuring vivid projections in any environment, indoors or out.

This single-chip laser-phosphor projector combines superior colour accuracy via HDMI 2.0 support with advanced cooling that maintains operation at temperatures up to 50°C with minimal noise (46 dB max). Built for flexibility, the G100-W25 features a stable lens holder and extensive GC-lens range (0.38–10.8 throw ratio) for seamless multi-channel installations in planetariums, domes, theatres, and projection mapping applications.

The intuitive Barco Projector Toolset software simplifies setup and management across multiple units. Engineered for reliability, its laser-phosphor light source delivers over 20,000 operating hours without lamp replacement, dramatically reducing maintenance costs.

The future-proof design meets the highest standards for image quality, durability, and sustainability.

Features:

• Single-chip high-brightness projections
• Up-to-date input capabilities & future-proof design
• Full operational flexibility through wide lens range
• 1 Chip DLP
• Laser Phosphor
• HDBaseT Compliant
• 24/7 Operation
• 3D Ready
• Rugged
• Low Noise
• Bright

Specifications:

• Projector type: Single-chip DLP laser phosphor projector
• Resolution: 1,920 x 1,200 (WUXGA) - 0.96" DLP chip
• Brightness:
  • 25,000 ISO lumen
  • 23,500 centre lumen
  • 21,100 ANSI lumen
• Brightness uniformity: 90%
• Contrast ratio: 1,100:1 sequential; 5,500:1 dynamic; Extreme black: 100,000:1
• Light source: Laser phosphor (Blue + Red lasers)
• Light source lifetime: Up to 20,000hrs
• Aspect ratio: 16:10
• Orientation: 360° rotation, no restrictions
• Sealed DLP core: Yes
• Colour correction: Yes
• CLO (constant light output): Yes
• Keystone correction: Yes
• Image processing: Embedded warp & blend. Also available via Pulse Toolset
• 3D: Active and passive stereoscopic 3D (up to 1080p @ 120Hz)
• Lens type:
  • FLDX-lens: 0.38:1
  • GC-lenses: 0.65-0.75:1 / 0.84-1.02:1 / 1.2-1.5:1 / 1.5-2.0:1 / 2.0-4.0:1 / 4.0-7.2:1 / 7.2-10.8:1
  • GC++ lens: 0.75-1.08:1/1.08-1.5:1 (available soon)
• Optical lens shift:
  • Vertical up to 120%, depending on lens
  • Horizontal up to 50%, depending on lens
  • Motorized zoom and focus
  • Motorized lens shift

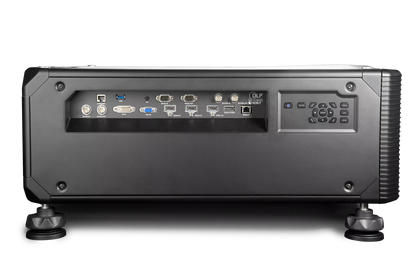

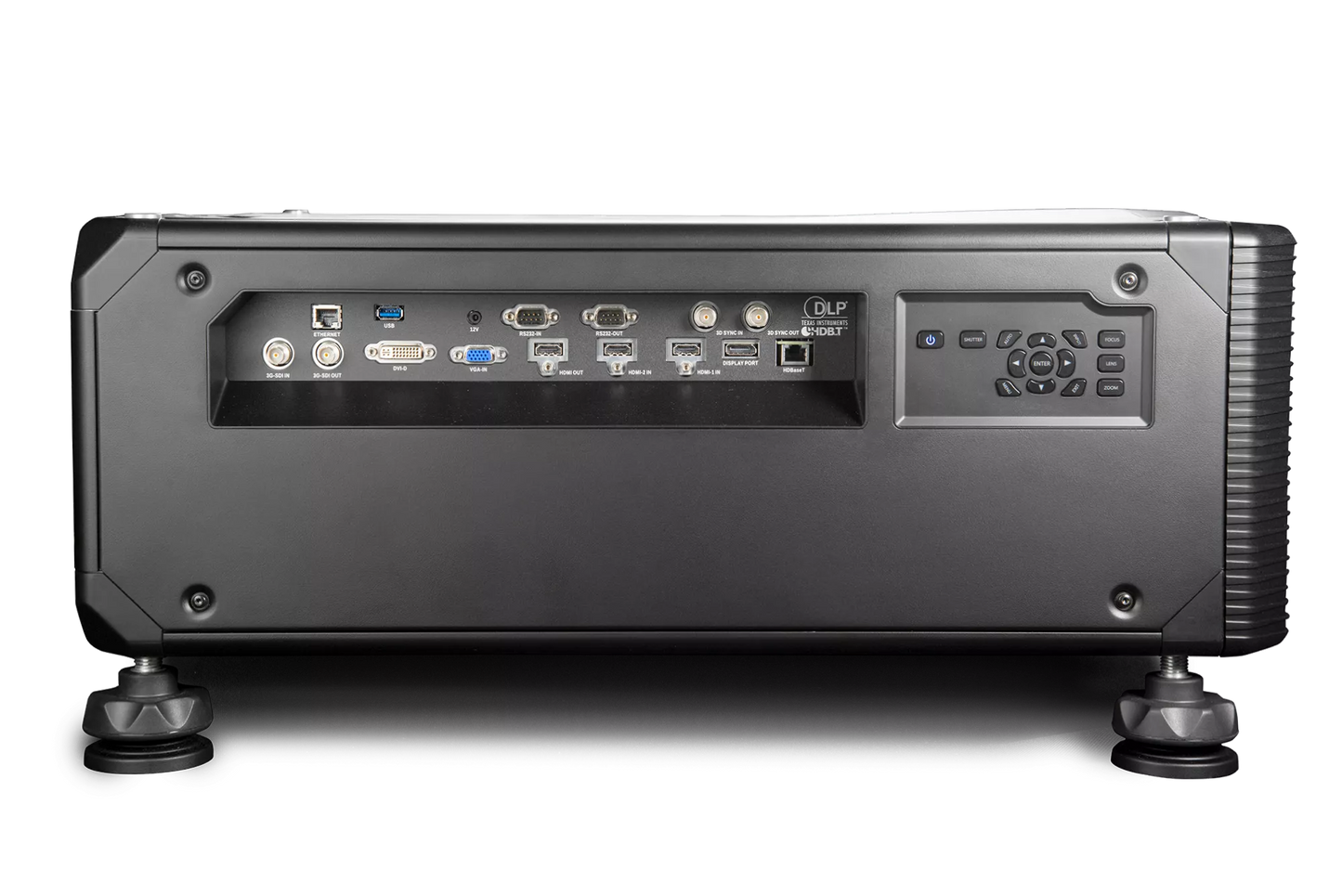

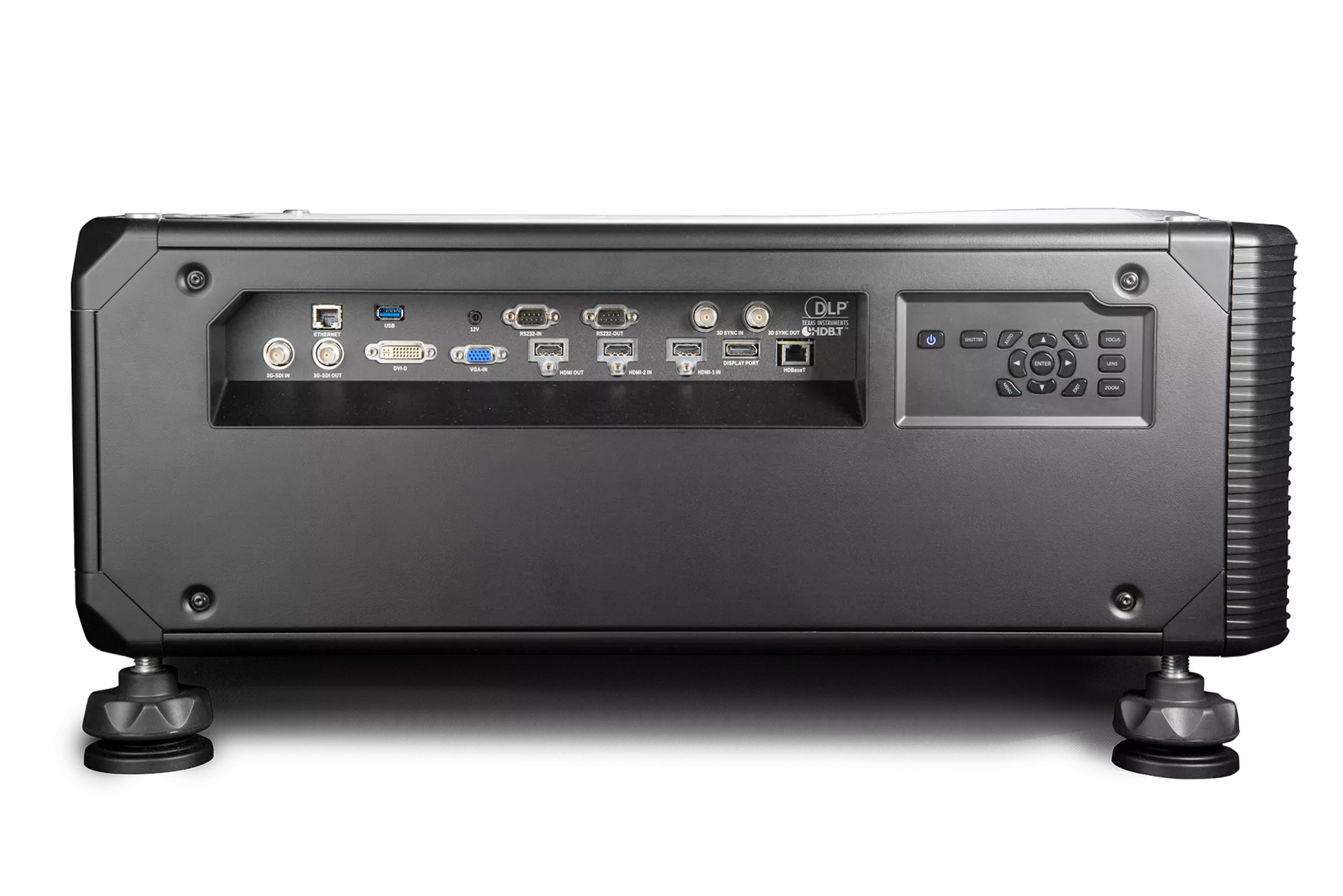

• Inputs: 2x HDMI 2.0b / DisplayPort 1.2a / DVI-D / HDBaseT / 3G-SDI / VGA (D-Sub 15 pin)
• Input resolutions:
  • Up to 4K UHD @60Hz
  • Refresh rates: 24Hz to 60Hz for WUXGA and 4KUHD (4096 x 2160 / 3840 x 2160)
  • 4K input signals will be scaled to the projector’s output resolution
• Software tools: Pulse Toolset
• Control: IR, RS232, RJ45, USB type A
• Network connection: 10/100 Ethernet, RJ45
• Power requirements: 100-240v / 50-60Hz
• Power consumption: 1300W minimal, 1500W maximum
• Standby power: less than 0.5W
• BTU per hour: 4436 BTU/h minimal, 5118 BTU/h maximum
• Noise level (typical at 25°C/77°F): 38dB(A) - 46dB(A) depending on the used mode
• Operating temperature: 0 - 50 °C (sea level)
• Operating humidity: 5 - 90% RH, non-condensing
• Storage temperature: -10 to 60 °C
• Storage humidity: 5 - 90% RH, non-condensing
• Dimensions (WxLxH):without feet: 650 x 710 x 251 mm / 25.6 x 27.9 x 9.9 in
• Weight: without lens: 55.2 kg / 121.7 lbs
• Standard accessories: Power cord, wireless remote control
• Certifications: CE, FCC Class A, cTUVUS, CCC, KC, BIS, RCM, BSMI, VCC/J1000, PSE
• Warranty: Limited 3 years parts and labour
