Barco G100‑W19 Projector

Barco G100‑W19 19,000 Lumen, WUXGA, Single-chip Laser Phosphor Projector

The Barco G100-W19 delivers exceptional image performance with 19,000 lumens of brightness, ensuring vivid projections in both indoor and outdoor environments.

This single-chip laser-phosphor projector combines WUXGA resolution with HDMI 2.0 support for deep colour accuracy and qualitative imaging. Built for complete operational flexibility, the G100-W19 features an extensive lens range with throw ratios from 0.38 to 10.8, enabling both short and long-distance projection with 360° orientation capabilities.

The stable lens holder guarantees reliable blending in multi-channel setups ideal for planetariums, domes, theatres, and projection mapping installations. Engineered for reliability, the laser-phosphor light source delivers over 20,000 operating hours without lamp replacement, significantly reducing maintenance costs. Advanced cooling technology allows operation at temperatures up to 50°C with minimal noise at just 42 dB. Barco's Projector Toolset software provides intuitive remote installation and management from your computer, with integrated blending and warping capabilities for seamless multi-projector configurations.

The G100-W19 combines future-proof design with sustainability, meeting the highest standards for image quality, reliability, and performance across any creative project.

Features:

• Single-chip high-brightness projections
• Up-to-date input capabilities & future-proof design
• Full operational flexibility through wide lens range
• 1 Chip DLP
• Laser Phosphor
• 19K Lumens
• HDBaseT Compliant
• 24/7 Operation
• 3D Ready

• Rugged
• Low Noise
• Bright

Specifications:

• Projector type: Single chip DLP laser phosphor projector
• Resolution: 1,920 x 1,200 (WUXGA) - 0.96" DLP chip
• Brightness: 19,000 ISO lumen / 17,800 center lumen / 16,000 ANSI lumen
• Brightness uniformity: 90%
• Contrast ratio: 1,100:1 sequential; 5,500:1 dynamic; Extreme black: 100,000:1
• Light source: Laser phosphor
• Light source lifetime: Up to 20,000hrs
• Aspect ratio: 16:10
• Orientation: 360° rotation, no restrictions
• Sealed DLP core: Yes
• Colour correction: Yes
• CLO (constant light output): Yes
• Keystone correction: Yes
• Image processing: Embedded warp & blend. Also available via Projector Toolset
• 3D: Active and passive stereoscopic 3D
• Lens type:
  • GC lenses - 0.65-0.75:1 / 0.84-1.02:1 / 1.02-1.36:1 / 1.2-1.5:1 / 1.5-2.0:1 / 2.0-4.0:1 / 4.0-7.2:1 / 7.2-10.8:1
  • FLDX lens - 0.38 : 1 UST 90°
• Optical lens shift:
  • Vertical up to 120%, depending on lens

  • Horizontal up to 50%, depending on lens

  • Motorized zoom and focus

  • Motorized lens shift

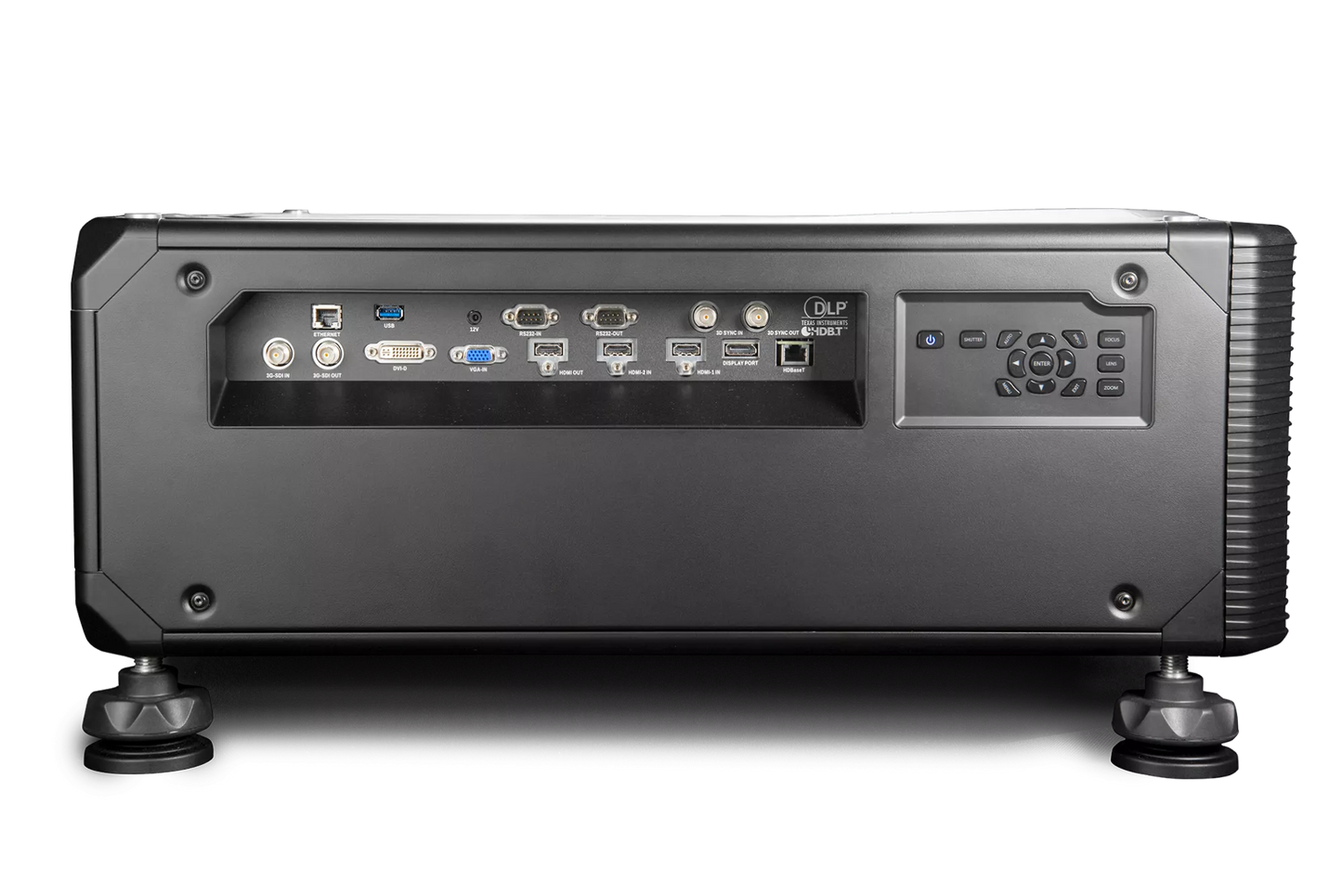

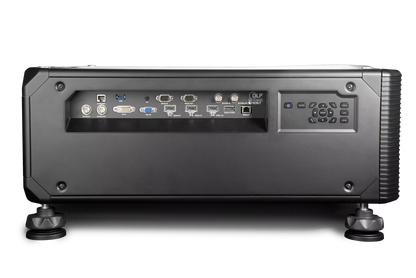

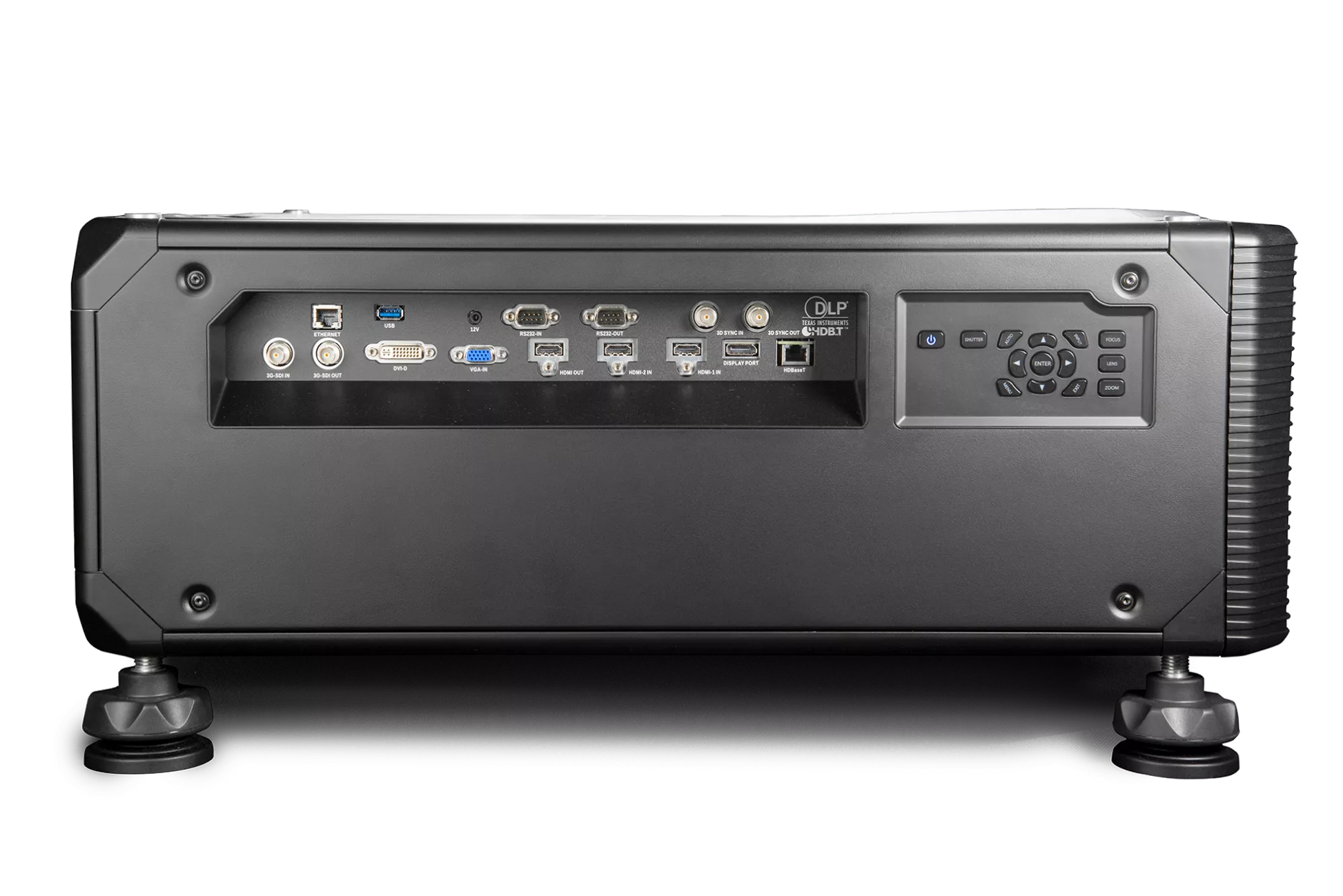

• Inputs: 2x HDMI 2.0b / DisplayPort 1.2a / DVI-D / HDBaseT / 3G-SDI / VGA (D-Sub 15 pin)
• Input resolutions:
  • Up to 4K UHD @60Hz
  • Refresh rates: 24Hz to 60Hz for WUXGA and 4KUHD (4096 x 2160 / 3840 x 2160)
  • 4K input signals will be scaled to the projector’s output resolution
• Software tools: Projector Toolset
• Control: IR, RS232, RJ45, USB type A
• Network connection: 10/100 Ethernet, RJ45
• Power requirements: 100-240v / 50-60Hz
• Power consumption: 1000W nominal, 1150W maximum (@220V)
• Standby power: less than 0.5W
• BTU per hour: 3415 BTU/h minimal, 3925 BTU/h maximum (@220V)
• Noise level: typical at 25°C/77°F): 36dB(A) - 40dB(A) depending on the used mode
• Operating temperature: 0 - 50 °C (sea level)
• Operating humidity: 10 - 85% RH, non-condensing
• Storage temperature: -10 to 60 °C
• Storage humidity: 5 - 90% RH, non-condensing
• Dimensions (WxLxH): without feet: 650 x710 x 251 mm / 25.6 x 27.9 x 9.9 in
• Weight: without lens: 50.0 kg / 110.2 lbs
• Standard accessories: Power cord, wireless remote control
• Certifications: CE, FCC Class A, cTUVUS, CCC, EAC, KCC, RCM, BIS, BSMI
• Warranty: Limited 3 years parts and labour
