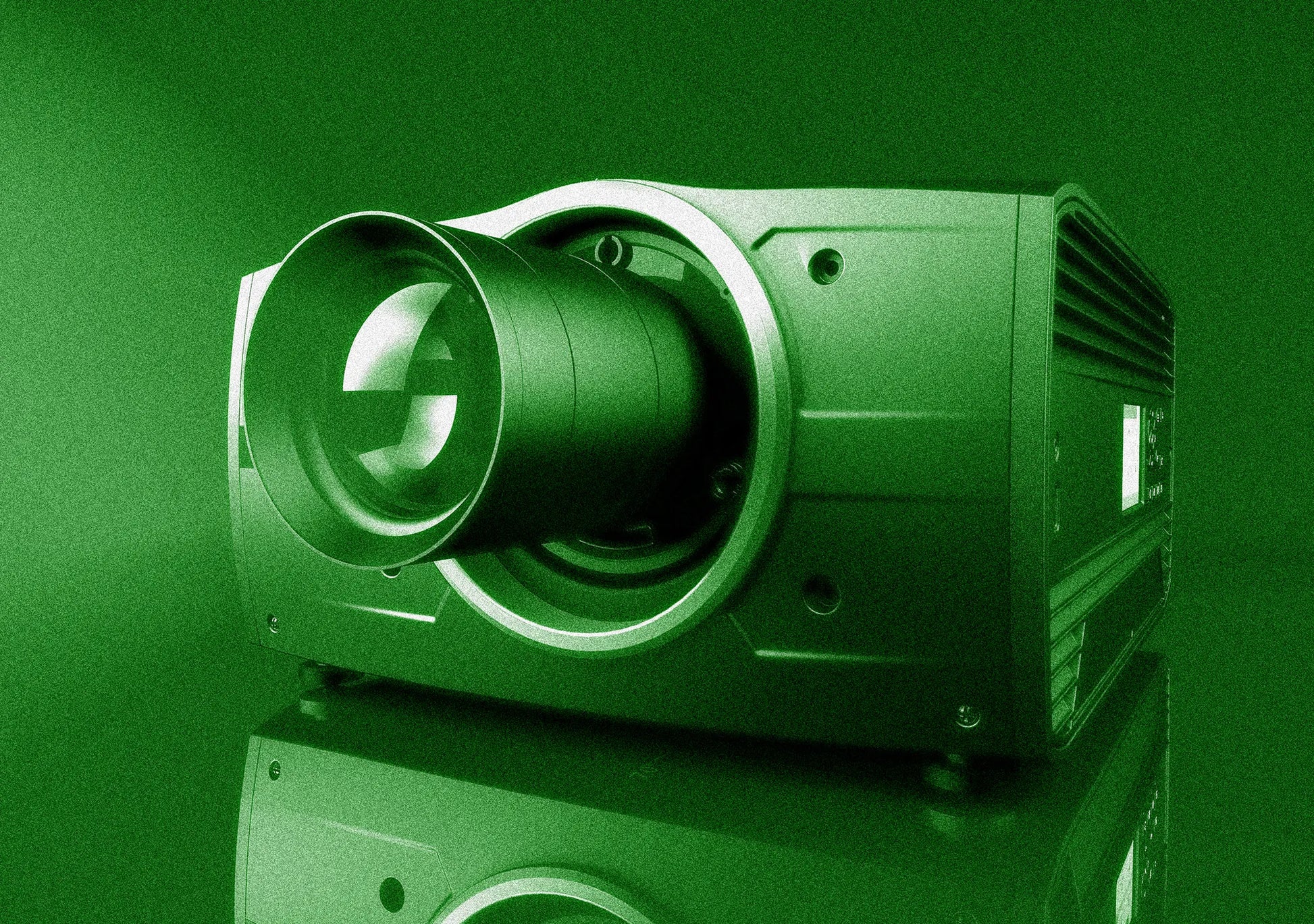

Barco FS70‑W6 Projector

Barco FS70‑W6 WUXGA Laser-phosphor Projector with NVG Stimulation

The Barco FS70-W6 is a laser-phosphor projector engineered for simulation training applications. Featuring WUXGA resolution and up to 5,500 lumens brightness, it delivers sharp, detailed imagery across any lighting condition. Built for durability with protective metal encasing and a 50,000-hour lifespan, the FS70-W6 withstands motion platform movements and 24/7 operation. Advanced simulation features include Constant Light Output (CLO) for predictable brightness and colour consistency, Smear Reduction Processing (SRP), dual iris and optical filters for superior contrast and black levels, and dedicated Night Vision Goggle stimulation at 740nm IR transmission. Independent control of visual and IR intensity enables realistic NVG training from dawn through night, with dimming from 0-100%. Dual input at 120Hz and purpose-designed optics make the FS70-W6 the ideal choice for professional training and simulation systems.

Features:

• Designed for simulation
• Night Vision Goggles stimulation
• Durable and robust for 24/7 operation
• High brightness ((5,500 lumen)
• Long lifetime (up to 50,000 hours)
• 24/7 Operation
• Constant Light Output
• Infra Red
• Laser Phosphor
• Pulse Processing

Specifications:

• Brightness: 5,900 Typical ANSI Lumens
• Contrast ratio: 1,800 – 6,000:1 sequential
• IR for NVG: yes
• Brightness uniformity: 90%
• Aspect ratio: 16:10
• Projector type: 1DLP laser phosphor
• Resolution: 1,920 x 1,200 (WUXGA)
• Lens type: FLD-series
• Optical lens shift:
  • Vertical up to 134%, depending on lens

  • Horizontal up to 70%, depending on lens

  • Motorized zoom and focus (+ lens memory FLDX lenses)

  • Motorized lens shift (with position memory on all lenses)
• Colour correction: P7 RealColor
• CLO (constant light output): Yes
• Light source: Laser phosphor
• Light source lifetime:
  • Minimum 25,000 hours @ full power

  • Up to 50,000 hours, depending on mode of operation
• Sealed DLP core: Yes
• Orientation: 360° rotation, no restrictions
• 3D: Active stereoscopic 3D
• Image processing: Embedded warp & blend engine
• Keystone correction: Yes
• Inputs:
  • HDSDI

  • 2x DP1.2

  • 2x dual link DVI-I

  • HDBaseT

  • HDMI 2.0 (HDCP2.2, HDR10)

  • RJ 45 Ethernet

  • DMX in/out

  • RS232 in

  • 2x USB

  • 12v out
• Input resolutions:
  • Including and up to:
  • 1,920 x 1200 @ 60Hz
  • 2,560 x 1,600 @ 120Hz
• Input colour depth: Up to 12-bit, depending on configuration
• Software tools: Projector Toolset
• Control: IR, RS232, RJ45
• Network connection: IR, RS232, RJ45
• Power requirements: 100-240V / 50-60Hz
• Power consumption: 743 W nominal, 1100 W maximum
• BTU per hour: Max 4,000 BTU/h
• Noise level (typical at 25°C/77°F): 36 dB(A)
• Operating temperature: 10 - 40 °C (sea level)
• Storage temperature: -20 to 60 °C
• Operating humidity: 20 -  80% RH
• Storage humidity: 10-90% RH
• Dimensions (WxLxH): 475 x 593 x 286 mm / 18.7 x 23.3 x 11.2 in
• Weight: 37 kg / 81.5 lbs
• Standard accessories: Power cord, wireless remote control
• Certifications: CE, FCC Class A and cNus
• Warranty: Limited 5 years parts and labour, extendable
