Barco FS70‑4K6 Projector

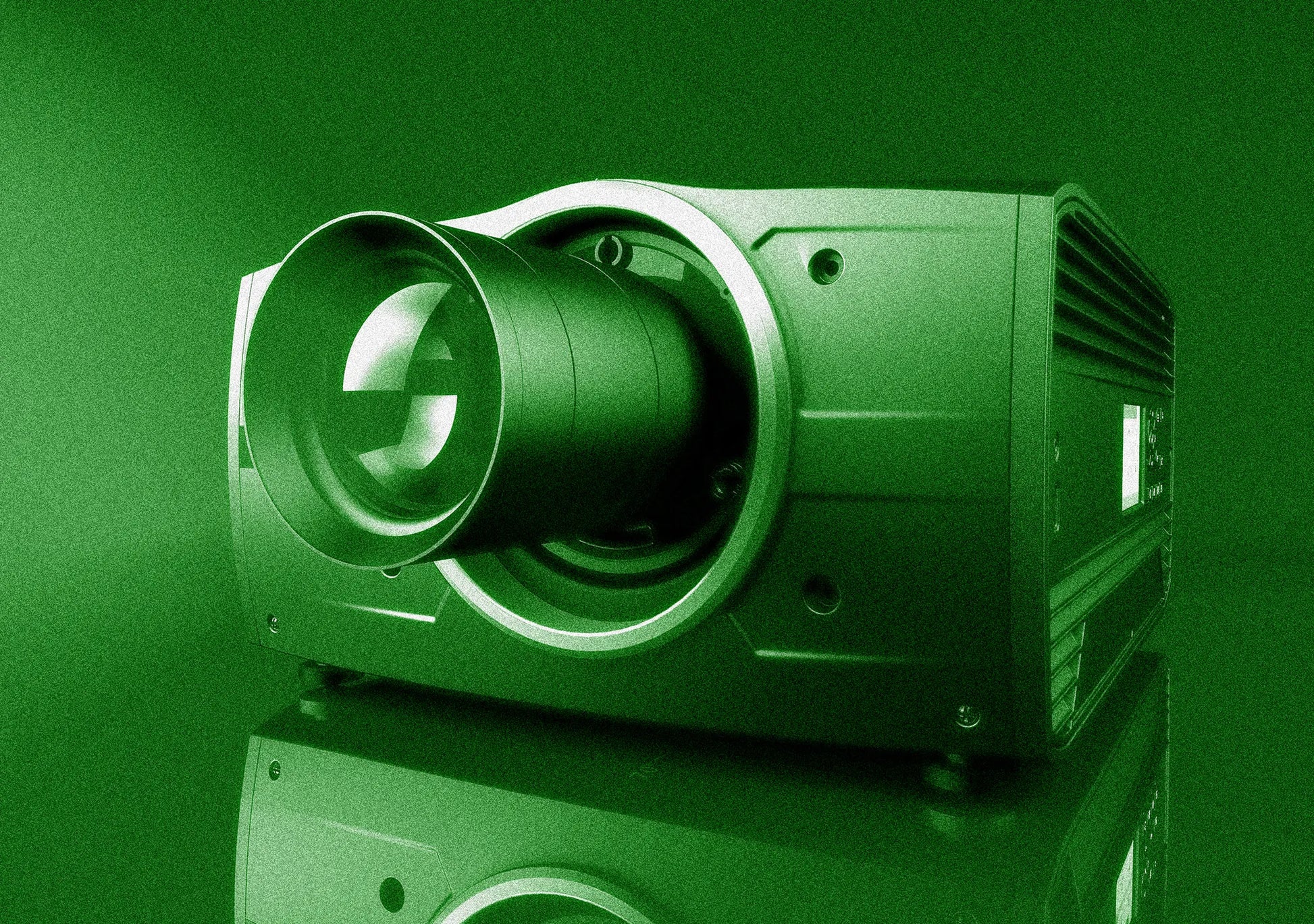

Barco FS70‑4K6 4K UHD Laser-phosphor Projector with NVG Stimulation

The Barco FS70-4K6 is a laser-phosphor projector engineered for demanding simulation applications. Featuring native WQXGA resolution with 4K UHD capability, it delivers up to 5,400 lumens of brightness, among the highest for single-chip DLP projectors at this resolution. Built for extreme durability, the FS70-4K6 is encased in protective metal to withstand rapid platform movements and vibration. With a lifespan of up to 50,000 hours, it's designed for continuous 24/7 operation without compromise. Advanced imaging technology sets this projector apart. Barco's proprietary Single Step Processing (SSP) handles all 4K UHD image processing, warp, blend, gamma, and colour, in one operation, resulting in sharper images, fewer artifacts, and reduced latency. Constant Light Output maintains predictable brightness and colour consistency over extended periods. Simulation-specific features include independent visual and IR intensity control for NVG stimulation at 740nm, dual iris and optical filters for superior contrast and black levels, and Smear Reduction Processing (SRP) to minimize motion artifacts. Dual input WQXGA @120Hz and 4K UHD @60Hz support flexible configuration options.

The FS70-4K6 combines laser-sharp image quality with the robustness and reliability required for mission-critical simulation environments.

Features:

• Designed for simulation
• Night Vision Goggles simulation
• 4K UHD resolution
• Durable and robust for 24/7 operation
• High brightness (5,000 lumen)
• Long lifetime  (up to 50,000 hours)
• 24/7 Operation
• Constant Light Output
• Infra Red
• Laser Phosphor
• Pulse Processing

Specifications:

• Brightness: 5,400 Typical ANSI Lumens
• Contrast ratio: 1,800 – 6,000:1 sequential
• IR for NVG: yes
• Brightness uniformity: 90%
• Aspect ratio: 16:10 native
• Projector type: 1DLP laser phosphor
• Resolution: 3,840 x 2,400 / 3,840 x 2,160 / 2,560 x 1,600 (native)
• Lens type: FLD-series
• Optical lens shift:
  • Vertical up to 146%, depending on lens

  • Horizontal up to 70%, depending on lens

  • Motorized zoom and focus (+ lens memory FLDX lenses)

  • Motorized lens shift (with position memory on all lenses)
• Colour correction: P7 RealColor
• CLO (constant light output): Yes
• Light source: Laser phosphor
• Light source lifetime:
  • Minimum 25,000 hours @ full power

  • Up to 50,000 hours, depending on mode of operation
• Sealed DLP core: Yes
• Orientation: 360° rotation, no restrictions
• 3D: Active stereoscopic 3D
• Image processing: Embedded warp & blend engine (Barco Pulse)
• Keystone correction: Yes
• Inputs:
  • HDSDI

  • 2x DP1.2

  • 2x dual link DVI-I

  • HDBaseT

  • HDMI™ 2.0 (HDCP2.2, HDR10)

  • RJ 45 Ethernet

  • DMX in/out

  • RS232 in

  • 2x USB

  • 12v out
• Input resolutions:
  • Including and up to:

  • 3,840 x 2,400 @ 60Hz
  • 3,840 x 2,160 @ 60Hz
  • 4,096 x 2,160 @ 60Hz
  • 2,560 X 1,600 @ 120Hz
• Input colour depth: Up to 12-bit, depending on configuration
• Software tools: Projector Toolset
• Control: IR, RS232, RJ45
• Network connection: IR, RS232, RJ45
• Power requirements: 100-240V / 50-60Hz
• Power consumption: 743 W nominal, 1100 W maximum
• BTU per hour: Max 4,000 BTU/h
• Noise level (typical at 25°C/77°F): 36 dB(A)
• Operating temperature: 10 - 40 °C (sea level)
• Storage temperature: -20 to 60 °C
• Operating humidity: 20 -80% RH
• Storage humidity: 10 - 90% RH
• Dimensions (WxLxH): 475 x 593 x 286 mm / 18.7 23.3 x 11.2 in
• Weight:  37 kg / 81.5 lbs
• Standard accessories: Power cord, wireless remote control
• Certifications: CE, FCC Class A and cNus
• Warranty: Limited 5 years parts and labour, extendable
