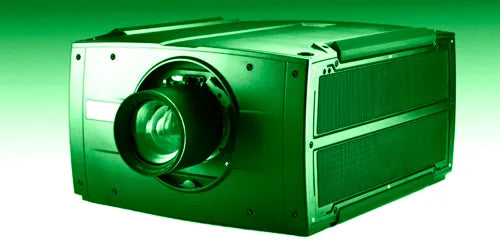

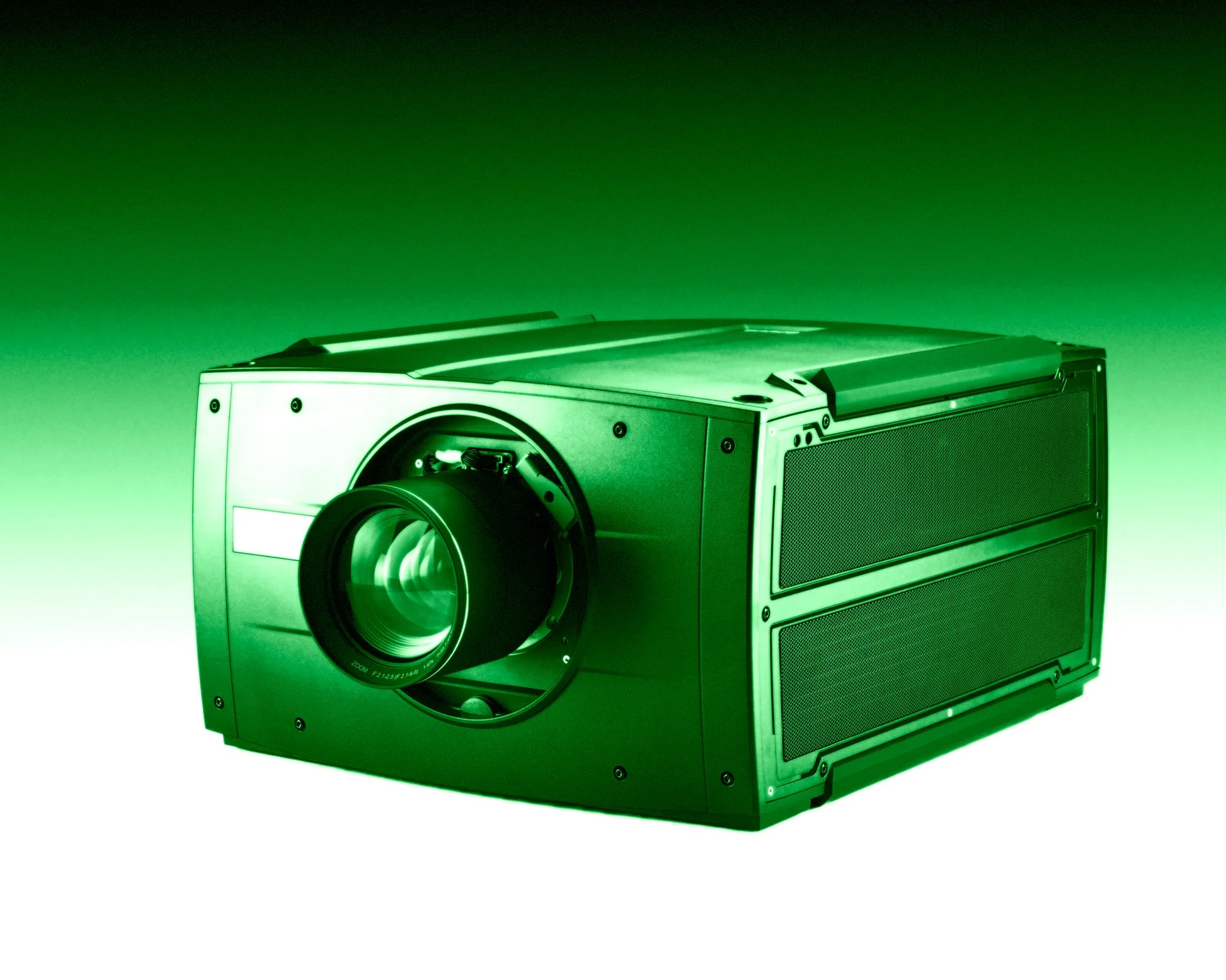

Barco FS400‑4K Projector

Barco FS400‑4K 4K UHD up to 120Hz Projector for NVG Training

The FS400-4K is a solid-state static laser-phosphor projector engineered for simulation and training environments. Delivering 4K resolution at up to 120Hz processing speed, it excels in the most demanding applications.

This projector features a dedicated IR light source with 7x higher IR intensity than previous models, enabling independent control of visible light and IR output. Processing speeds up to 120Hz at WQXGA resolution ensure dynamic, high-speed scenarios are rendered with perfect fidelity and minimal latency. Built for performance in all circumstances, the FS400-4K leverages next-generation Barco Pulse electronics, a powerful, flexible software architecture that executes advanced low-latency operations like pixel-shifting, warping, and blending in a single processing step.

This is critical for real-time simulator systems. An open API allows partners to integrate custom management tools and value-add features. Motion platforms demand rugged equipment.

The FS400-4K is fully solid-state with no moving parts, no colour or phosphor wheels, and is fully rated for shock and vibration. Its H-beam shaped aluminium core provides optimized strength-to-weight ratio for a sturdy, serviceable platform. Optional accessories support lens mounting on motion-based platforms for enhanced image robustness.

Features:

• Up to 4K resolution @60-120Hz framerate for great image performance
• Revolutionary static laser-phosphor for speckle-free, outstanding image quality
• Superior IR illumination with 7x higher IR intensity for NVG stimulation
• Rock-solid and true solid-state, fully rated for shock and vibration
• Next Gen Barco Pulse for more powerful processing and unified interface across all Barco projectors
• 5 years warranty as standard
• 4K
• 1 Chip DLP
• Constant Light Output
• Pulse processing
• 24/7 Operation
• Laser
• Infra Red
• Eco

Specifications:

• Brightness:
  • 5,400 typical ANSI lumens

  • 5,750 typical centre lumens
• Contrast ratio: 1,800 – 6,000:1 sequential
• IR for NVG: Yes
• Brightness uniformity: 90%
• Aspect ratio: 16:10
• Projector type: 1-chip DLP laser phosphor
• Resolution:
  • 2,560x1,600 (WQXGA native)

  • 3,840x2,400 (4K UHD)
• Lens type: FLD+ / FLDX
• Optical lens shift:
  • Vertical up to 144% depending on iris

  • Horizontal up to 71% depending on lens

  • Motorized zoom & Focus + Lens memory (FLDX)

  • Motorized lens shift (all lenses)
• Colour correction: P7 RealColor
• Colour space: REC709
• CLO (constant light output): Yes
• Light source: Static laser phosphor
• Light source lifetime:
  • Minimum 25,000 hours @ full power

  • Up to 50,000 hours, depending on mode of operation
• Sealed DLP core: Yes
• Orientation: 360° rotation no restrictions
• 3D: Active stereoscopic 3D
• Image processing: Embedded warp & blend
• Keystone correction: Yes
• Inputs:
  • 1 x DP 1.4 (HDCP 2.2)

  • 1 x HDMI 2.1 (HDCP 2.2)

  • 4 x DP 1.2
• Input resolutions:
  • Including and up to: 3840 x 2400 @ 60HZ

  • 3840 x 2160 @ 60Hz

  • 4096 x 2160 @ 60Hz

  • 2560 x 1600 @ 120Hz
• Input colour depth: Up to 12Bits depending on set-up`s
• Software tools: Projector Toolset + Android app + iOS app
• Control: IR RJ45
• Network connection: 10/100/1000 Mbit
• Power requirements: 100-240V / 50-60Hz
• Power consumption:
  • 815W typical
  • 1200W maximum rated
• BTU per hour:
  • 2781 BTU/h typical
  • 4095 BTU/h maximum
• Noise level (typical at 25°C/77°F): 34 dB(A)
• Operating temperature: 10°-40°C (sea level)
• Standby power: < 0.5W
• Storage temperature: -20 to 60 °C
• 24/7 operation: Yes
• Operating humidity: 20 - 80% RH (no condense)
• Storage humidity: 10 - 90% RH (no condense)
• Dimensions (WxLxH): 562 x 472 x 286 mm / 22 x 18,5 x 11,2 in
• Weight: 31Kg / 68 lbs (no lens)
• Standard accessories: Power cord, wireless remote control
• Certifications: CE, FCC Class A and cSGSus, KCC, CCC
• Warranty: Limited 5 years on parts and labour Extendable
