Barco FS40‑WU MKII Projector

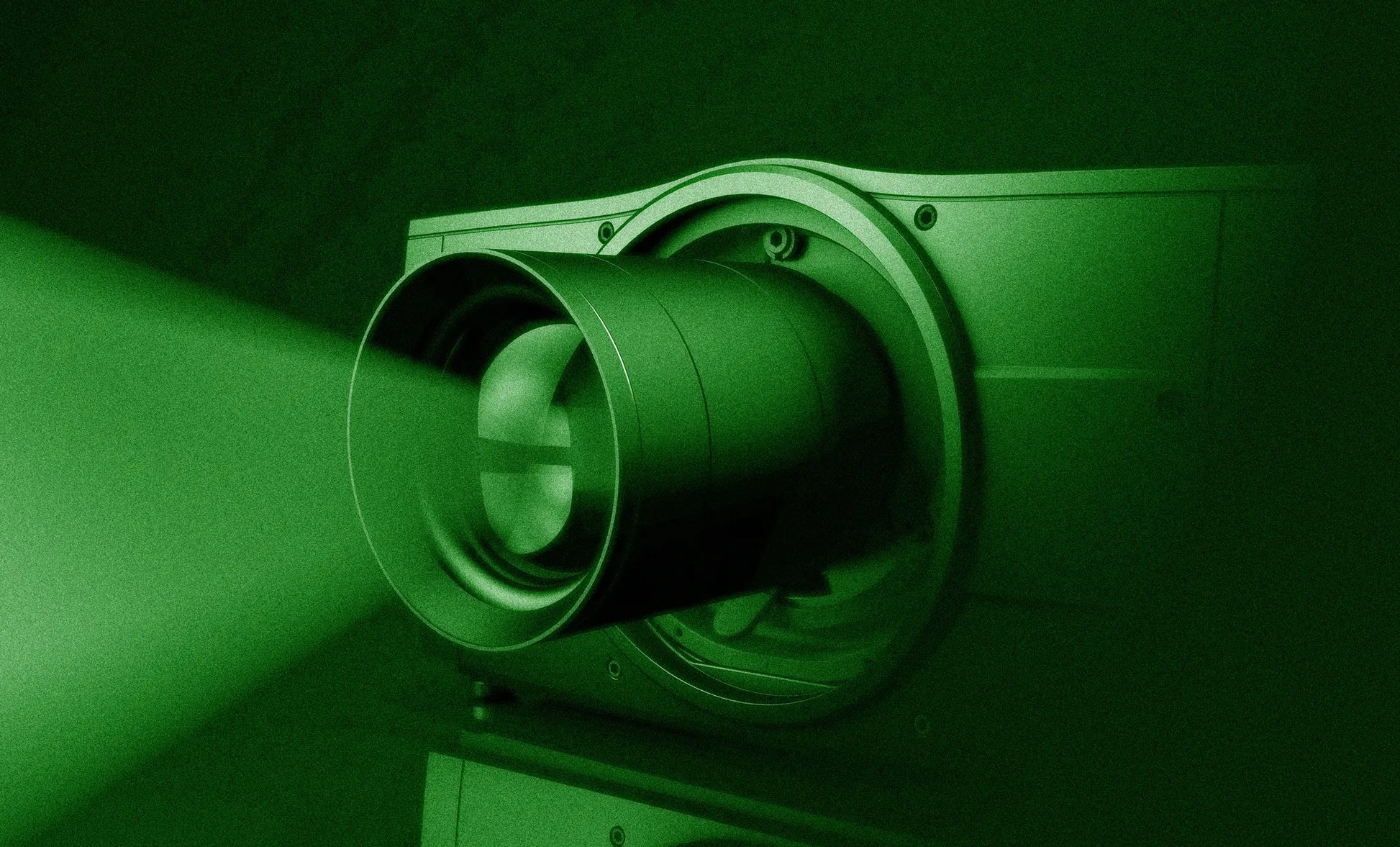

Barco FS40‑WU MKII Rock-solid and Powerful WUXGA LED Projector for NVG Training

The FS40-WU MKII is Barco's latest true solid-state simulation-ready projector, engineered for the most demanding training environments. Combining advanced LED illumination with Barco Pulse electronics, it delivers visual excellence and extreme reliability with minimal total cost of ownership. Designed specifically for simulation applications, the FS40-WU MKII features both RGB and dedicated IR light sources, enabling independent control of visible and infrared intensity to simulate realistic daytime and nighttime training scenarios. Dual iris and optical filters optimize contrast and deepen black levels for superior image clarity. Built for motion platforms with zero moving parts, this rock-solid projector features a magnesium alloy baseplate and multiple mounting points, making it perfectly suited for any orientation on dynamic platforms.

Its sealed DLP optical engine and solid-state LED technology eliminate lamp changes and colour adjustments for up to 75,000 hours of operation. Barco's Single Step Processing (SSP) technology delivers warp and blend capabilities with smooth images up to 240Hz frame rate. Constant Light Output (CLO) functionality ensures predictable linear brightness performance throughout the projector's lifespan. Optional intelligent high-efficiency air filters provide enhanced protection in dusty and harsh environments, further reducing maintenance demands and extending equipment life.

Features:

• Night Vision Goggle stimulation
• True solid-state and ruggedised
• Bright LEDs with exceptional colour fidelity
• 100-0% LED dimming for training at any time
• Barco Pulse software ensures powerful processing and lowest latency
• 1 Chip DLP
• Constant Light Output
• Pulse Processing
• 24/7 Operation

Specifications:

• Brightness: 3,200 Typical ANSI Lumens
• Contrast ratio: 1800-6000:1
• IR for NVG: Yes
• Brightness uniformity: 90%
• Aspect ratio: 16:10
• Projector type: 1DLP RGB LED
• Resolution: 1920 x 1200 (native)
• Lens type: FLD/FLD+/FLDX
• Optical lens shift:
  • Vertical up to 134%, depending on lens

  • Horizontal up to 70%, depending on lens

  • Motorized zoom and focus (+ lens memory FLDX lenses)

  • Motorized lens shift (with position memory on all lenses)
• Colour correction: P7 RealColor
• CLO (constant light output): Yes
• Light source: RGB LED
• Light source lifetime:
  • Minimum 50,000 hours @ full power

  • Up to 75,000 hours, depending on mode of operation
• Sealed DLP core: Yes
• Orientation: 360° rotation, no restrictions
• 3D: Active stereoscopic 3D
• Image processing: Embedded warp & blend engine
• Keystone correction: Yes
• Inputs:
  • 2x DP1.2

  • 2x dual link DVI-I

  • HDBaseT upgradable

  • HDMI™ 2.0 (HDCP2.2, HDR10)

  • RJ 45 Ethernet

  • RS232 in

  • 2x USB

  • 12v out
• Input resolutions:
  • Including and up to:

  • 1,920 x 1200 @ 60Hz
  • 1,920 x 1200 @ 240Hz
• Input colour depth: Up to 12-bit, depending on configuration
• Software tools: Projector toolset
• Control: IR, RS232, RJ45
• Network connection: IR, RS232, RJ45
• Power requirements: 100-240V / 50-60Hz
• Power consumption: 520 W typical, 700 W maximum
• BTU per hour: 1,707 BTU/h typical, 1,945 BTU/h max
• Noise level (typical at 25°C/77°F): 33 dB(A)
• Operating temperature: 10 - 40 °C (sea level)
• Storage temperature: -20 to 60 °C
• Operating humidity: 20 - 80% RH
• Storage humidity: 10 - 90% RH
• Dimensions (WxLxH): 450 x 457 x 244 mm / 17.7 x 18.0 x 9.6 in
• Weight: 21.5 kg / 47.4 lbs
• Standard accessories: Power cord, wireless remote control
• Certifications: CE, FCC Class A and cNus
• Warranty: Limited 5 years parts and labour, extendable
