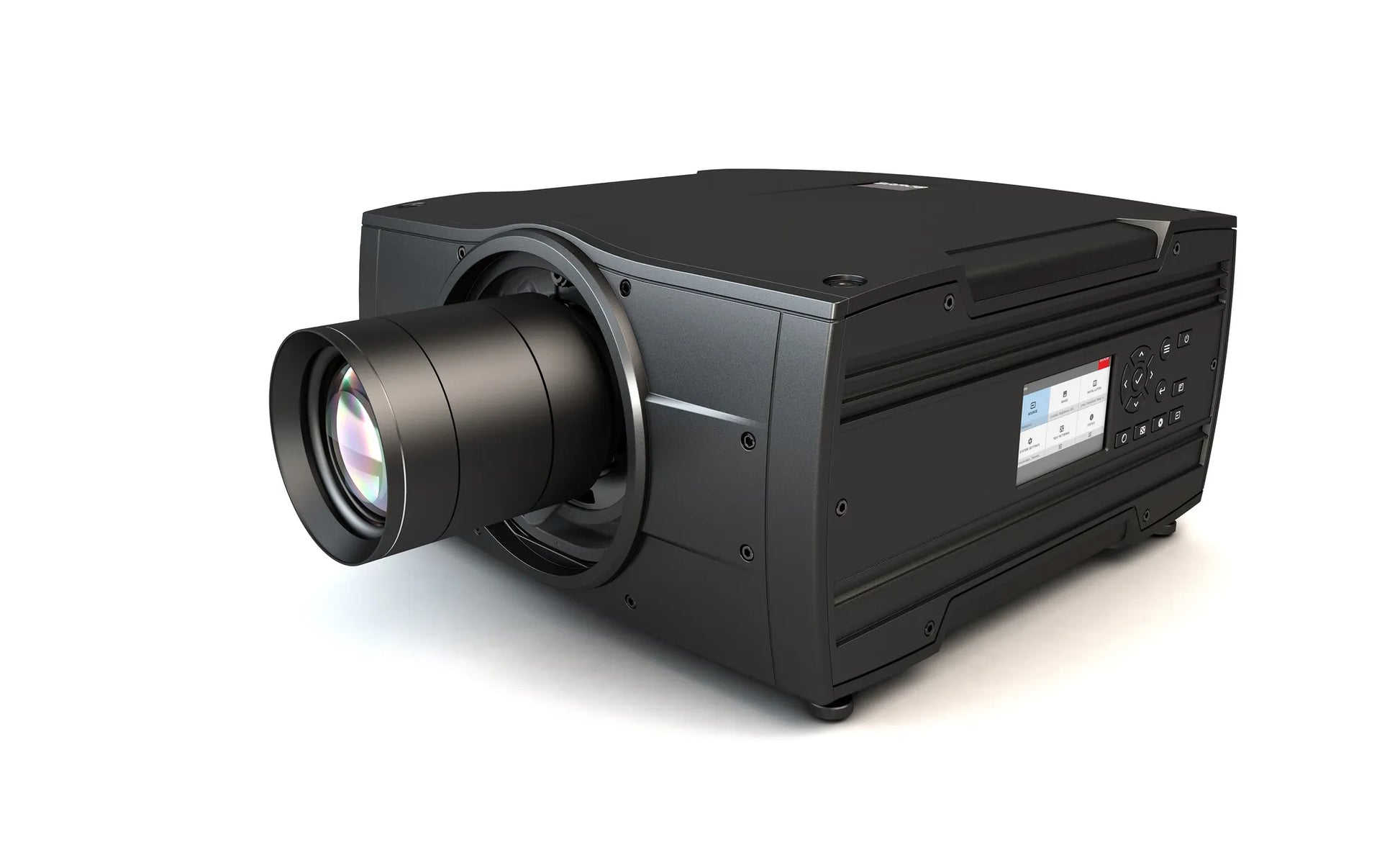

Barco FL40‑WU MKII Projector

Barco FL40‑WU MKII Rock-solid and Powerful WUXGA LED Projector

The FL40-WU MKII represents the latest evolution in true solid-state simulation-ready projectors from Barco.

This WUXGA LED projector combines cutting-edge LED illumination technology with Barco Pulse electronics to deliver visual excellence and extreme reliability while maintaining a low total cost of ownership. Built for the most demanding simulation environments, the FL40-WU MKII features dual iris and optical filters that ensure optimal contrast and deeper black levels for best-in-class image clarity.

Its solid-state design eliminates moving parts, making it rock-solid and perfectly suited for motion platforms in any orientation.

The magnesium alloy baseplate and multiple mounting points provide exceptional stability under shock and vibration. Performance and efficiency are at the core of this projector. Single Step Processing (SSP) technology delivers built-in warp and blend capabilities with smooth images up to 240Hz frame rate.

The sealed DLP optical engine combined with solid-state LED illumination extends maintenance cycles dramatically, no lamp changes or colour adjustments needed for up to 75,000 hours of operation. Barco Constant Light Output (CLO) functionality ensures predictable linear brightness performance throughout the projector's lifespan. Designed for harsh and dusty environments, the FL40-WU MKII supports intelligent high-efficiency air filters for enhanced protection. Every feature works together to deliver a vision you can trust, extreme reliability, superior image quality, and exceptional value over the life of the projector.

Features:

• True solid-state and ruggedized
• Brighter LEDs with exceptional colour fidelity
• 100-0% LED dimming for training at any time
• Barco Pulse software ensures powerful processing and lowest latency
• Also available: FS40-WU MKII with dedicated IR LED for NVG training
• 1 Chip DLP
• Constant Light Output
• Pulse Processing
• 24/7 Operation

Specifications:

• Brightness: 3,200 Typical ANSI Lumens
• Contrast ratio: 1800-6000:1
• IR for NVG: no
• Brightness uniformity: 90%
• Aspect ratio: 16:10
• Projector type: 1DLP RGB LED
• Resolution: 1920 x 1200 (native)
• Lens type: FLD/FLD+/FLDX
• Optical lens shift:
  • Vertical up to 134%, depending on lens

  • Horizontal up to 70%, depending on lens

  • Motorized zoom and focus (+ lens memory FLDX lenses)

  • Motorized lens shift (with position memory on all lenses)
• Colour correction: P7 RealColor
• CLO (constant light output): Yes
• Light source: RGB LED
• Light source lifetime:
  • Minimum 50,000 hours @ full power

  • Up to 75,000 hours, depending on mode of operation
• Sealed DLP core: Yes
• Orientation: 360° rotation, no restrictions
• 3D: Active stereoscopic 3D
• Image processing: Embedded warp & blend engine
• Keystone correction: Yes
• Inputs:
  • 2x DP1.2

  • 2x dual link DVI-I

  • HDBaseT upgradable

  • HDMI™ 2.0 (HDCP2.2, HDR10)

  • RJ 45 Ethernet

  • RS232 in

  • 2x USB

  • 12v out
• Input resolutions:
  • Including and up to:

  • 1,920 x 1200 @ 60Hz
  • 1,920 x 1,200 @240Hz
• Input colour depth: Up to 12-bit, depending on configuration
• Software tools: Projector Toolset
• Control: IR, RS232, RJ45
• Network connection: IR, RS232, RJ45
• Power requirements: 100-240V / 50-60Hz
• Power consumption: 520 W typical, 700 W maximum
• BTU per hour: 1,707 BTU/h typical, 1,945 BTU/h max
• Noise level (typical at 25°C/77°F): 33 dB(A)
• Operating temperature: 10 - 40 °C (sea level)
• Storage temperature: -20 to 60 °C
• Operating humidity: 20 - 80% RH
• Storage humidity: 10 - 90° RH
• Dimensions (WxLxH): 450 x 457 x 244 mm / 17,7 x 18,0 x 9,6 in
• Weight: 21,5 kg / 47,4 lbs
• Standard accessories: Power cord, wireless remote control
• Certifications: CE, FCC Class A and cNus
• Warranty: Limited 5 years parts and labour, extendable
