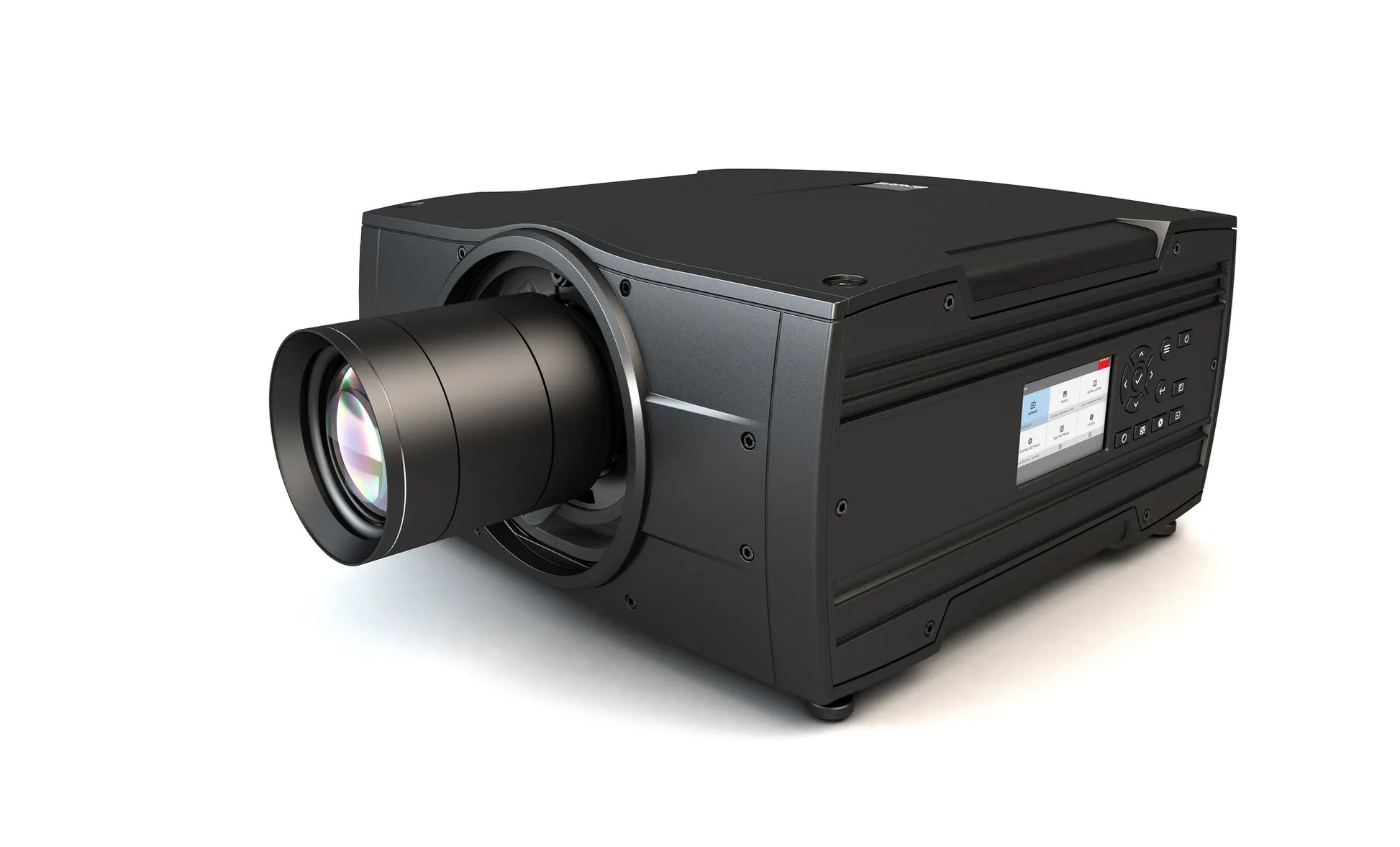

Barco FL40‑4K MKII Projector

Barco FL40‑4K MKII Rock-solid and Powerful 4K LED Projector

The FL40-4K MKII represents the pinnacle of solid-state simulation-ready projection technology from Barco. Built with LED illumination and Barco Pulse electronics, this native WQXGA projector delivers 4K resolution (3840 x 2200) with exceptional brightness, clarity, and colour accuracy. Dual iris and optical filters provide superior contrast and deep blacks for unmatched image quality. Engineered for extreme reliability, the FL40-4K MKII features a sealed DLP optical engine with zero moving parts, ideal for motion platforms and demanding simulation environments.

Its solid magnesium alloy baseplate and multiple mounting points ensure rock-solid stability in any orientation, even under shock and vibration. Single Step Processing (SSP) technology enables high-resolution images at higher frame rates with lower latency than competing solutions.

The projector's solid-state LED illumination eliminates lamp changes and colour adjustments for up to 75,000 hours, dramatically reducing total cost of ownership. Barco Constant Light Output (CLO) maintains predictable linear brightness performance throughout the projector's lifespan. Optional intelligent high-efficiency air filters provide enhanced protection in dusty and harsh environments.

A vision to trust, built for the most demanding applications.

Features:

• Extreme detail up to 4K (3840 x 2400) resolution
• True solid-state and ruggedized
• Brighter LEDs with exceptional colour fidelity
• 100-0% LED dimming for training at any time
• Barco Pulse software ensures powerful processing and lowest latency
• Also available: FS40-4K MKII With dedicated IR LED for NVG training
• 4K UHD
• 1 Chip DLP
• Constant Light Output
• Pulse Processing
• 24/7 Operation

Specifications:

• Brightness: 2,870 Typical ANSI Lumens
• Contrast ratio: 1800-6000:1
• IR for NVG: no
• Brightness uniformity: 90%
• Aspect ratio: 16:10
• Projector type: 1DLP RGB LED
• Resolution: 3,840 x 2,400 (4K) / 2,560 x 1,600 (native)
• Lens type: FLD+/FLDX
• Optical lens shift:
  • Vertical up to 146%, depending on lens

  • Horizontal up to 70%, depending on lens

  • Motorized zoom and focus (+ lens memory FLDX lenses)

  • Motorized lens shift (with position memory on all lenses)
• Colour correction: P7 RealColor
• CLO (constant light output): Yes
• Light source: RGB LED
• Light source lifetime:
  • Minimum 50,000 hours @ full power

  • Up to 75,000 hours, depending on mode of operation
• Sealed DLP core: Yes
• Orientation: 360° rotation, no restrictions
• 3D: Active stereoscopic 3D
• Image processing: Embedded warp & blend engine
• Keystone correction: Yes
• Inputs:
  • 2x DP1.2

  • 2x dual link DVI-I

  • HDBaseT upgradable

  • HDMI™ 2.0 (HDCP2.2, HDR10)

  • RJ 45 Ethernet

  • RS232 in

  • 2x USB

  • 12v out
• Input resolutions:
  • Including and up to:

  • 3,840 x 2,400 @ 60Hz

  • 3,840 x 2,160 @ 60Hz
  • 4,096 x 2,160 @ 60Hz
  • 2,560 x 1600 @ 120Hz
• Input colour depth: Up to 12-bit, depending on configuration
• Software tools: Projector Toolset
• Control: IR, RS232, RJ45
• Network connection: IR, RS232, RJ45
• Power requirements: 100-240V / 50-60Hz
• Power consumption: 520 W typical, 700 W maximum
• BTU per hour: 1,707 BTU/h typical, 1,945 BTU/h max
• Noise level (typical at 25°C/77°F): 33 dB(A)
• Operating temperature: 10 - 40 °C (sea level)
• Storage temperature: -20 to 60  °C
• Operating humidity: 20 - 80% RH
• Storage humidity: 10 - 90% RH
• Dimensions (WxLxH): 450 x 457 x 244 mm / 17.7 x 18.0 x 9.6 in
• Weight: 21.5 kg / 47.4 lbs
• Standard accessories: Power cord, wireless remote control
• Certifications: CE, FCC Class A and cNus
• Warranty: Limited 5 years parts and labour, extendable
