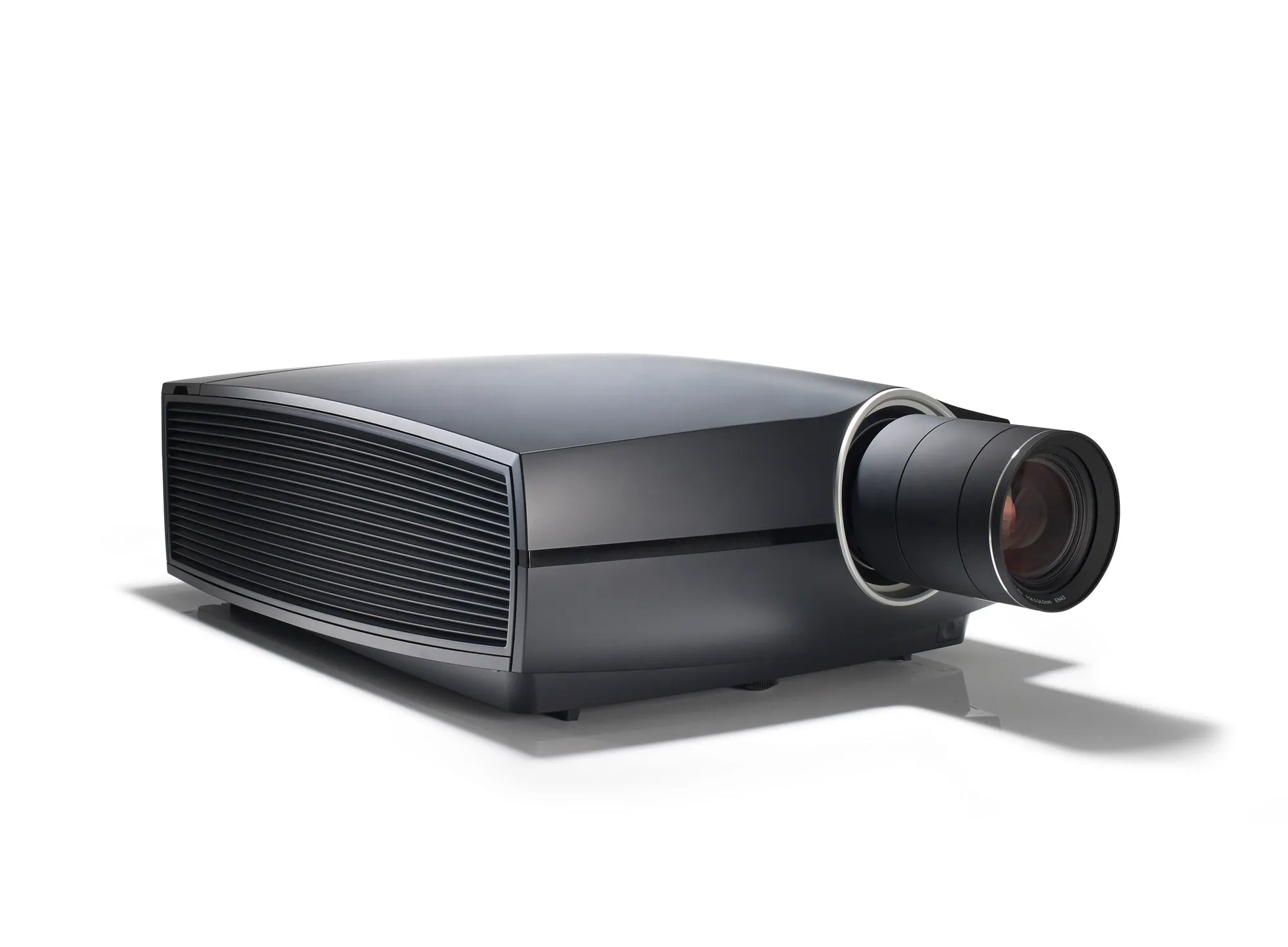

Barco F80‑Q12 Projector

Barco F80‑Q12 12,000 Lumens, WQXGA, DLP Laser Phosphor Projector

The Barco F80-Q12 delivers exceptional image quality with highly saturated colours and accurate colour reproduction, powered by laser-phosphor technology and advanced Barco Pulse processing for sharper images and reduced latency. Designed for fixed installation in museums, boardrooms, auditoriums, and theme park dark rides, this 12,000-lumen projector offers unprecedented business value through its long-lasting light source that eliminates frequent lamp changes, reducing maintenance costs significantly. Its flexible installation capabilities, including any-orientation operation and wide lens shift ranges with all-glass lenses, accommodate virtually any projection configuration.

The F80-Q12 combines superior performance with cost efficiency, maximising uptime while minimizing operational expenses.

Features:

• Stunning images with superb colour performance
• Ultimate installation flexibility
• 3D capable

Specifications:

• Notes:
  • * When measured with the GLD 1.43-2.12:1 lens in Wide Angle

  • ** For optimal performance, switch off the projector regularly. For details please consult the manual.
  • *** Except on light source: 20,000 hours in normal mode, or 3 years, whichever comes first.


• Projector type: Single-chip DLP (0.67") laser phosphor projector

• Technology: 0.67" DMD x1
• Resolution: 2,716 x 1,600 (WQXGA+ native)
• Brightness:
  • 11,300 centre lumens*
  • 10,700 ANSI lumens
  • 12,000 ISO lumens
• Brightness uniformity: > 90%
• Contrast ratio: 1,200:1 sequential, 10,000:1 dynamic*
• Light source: Laser phosphor
• Light source lifetime: > 20000 h in normal mode, > 12000 h in silent mode, > 40000 h in long life mode, > 12000 h in high brightness mode
• Aspect ratio: 17:10 native
• Colour space: Rec. 709
• Orientation: 360° rotation, no restrictions
• Sealed DLP core: Yes - standard
• 24/7 operation: Yes**
• Colour correction: P7 RealColor
• CLO (constant light output): Yes
• Keystone correction: Yes
• Image processing: Embedded warp & blend engine direct adjust OSD + Ptoolset
• 3D:
  • Active stereoscopic 3D / Passive stereo compatible
  • max WQXGA @120Hz
• Lens type: GLD / FLD+ (lens adapter needed) / FLDX (lens adapter needed)
• Optical lens shift:
  • Vertical up to 125%, depending on lens
  • Horizontal up to 50%, depending on lens
  • Motorized zoom and focus (with lens memory on GLD and FLDX lenses)
  • Motorized lens shift (with position memory on all lenses)
• Lens range: GLD-range: 0.8 - 1.0 ; 1.0 - 1.35 ; 1.35 - 2.0 ; 2.0 - 3.0
• Optical dowser: laser dimming
• Inputs: HDMI 2.0 (HDCP2.2, HDR10) / 2x DP 1.2 / 12G-SDI /2x dual link DVI-D / HDBaseT / RJ 45 Ethernet / DMX in-out / RS232 in / 2x USB / 12V out
• Input resolutions:
  • Up to 4K UHD @ 60Hz / Up to 2,560 x 1,600 @ 120Hz
  • refresh rates:
  • 24Hz to 120Hz for WQXGA+ (2716x1600) and 24Hz to 60Hz for 4K/4KUHD (4096 x 2160/ 3860 x 2400)
• Control: Projector Toolset: IR, RS232, RJ45, XLR wired
• Network connection: 10/100 Ethernet, RJ45
• Web browser: integrated
• Power requirements: 100-240V / 50-60Hz
• Power consumption: 1050 W nominal, 1200 W maximum
• Standby power: < 0.5W
• Dissipation BTU: max 4100 BTU/h
• Noise level (typical at 25°C/77°F): 35 dB(A) when used in silent mode / 39 dB(A) in normal mode
• Operational ambient temperature: 0°-35°C / 32°-95°F
• operation humidity no condens: 0%-80%
• Storage temperature: -20 to 60 °C
• Storage humidity: 20 - 90% RH (non-condensed)
• Shipping dimensions (WxLxH): 583 x 784 x 444 mm / 23.0 x 30.9 x 17.5 inch
• Dimensions (WxLxH): 480 x 680 x 227 mm / 18.9 x 26.7 x 8.9 in
• Weight: 26.8 kg / 59.1 lbs (without lense)
• Shipping weight: 38.5 kg / 81.6 lbs
• Standard accessories: Power cord, wireless/XLR wired rugged remote control
• Certifications:
  • Compliant with UL60950-1 and EN60950-1
  • complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHs
• Warranty:
  • Limited 3 years on parts and labor(***)
  • Extendable up to 5 years.
• Blend: horizontal and vertical edge blending
• Screen size: max 20m
• Colour reproduction: P3 DCI (98%) with P7 colour correction
• DMX 512: Standard
