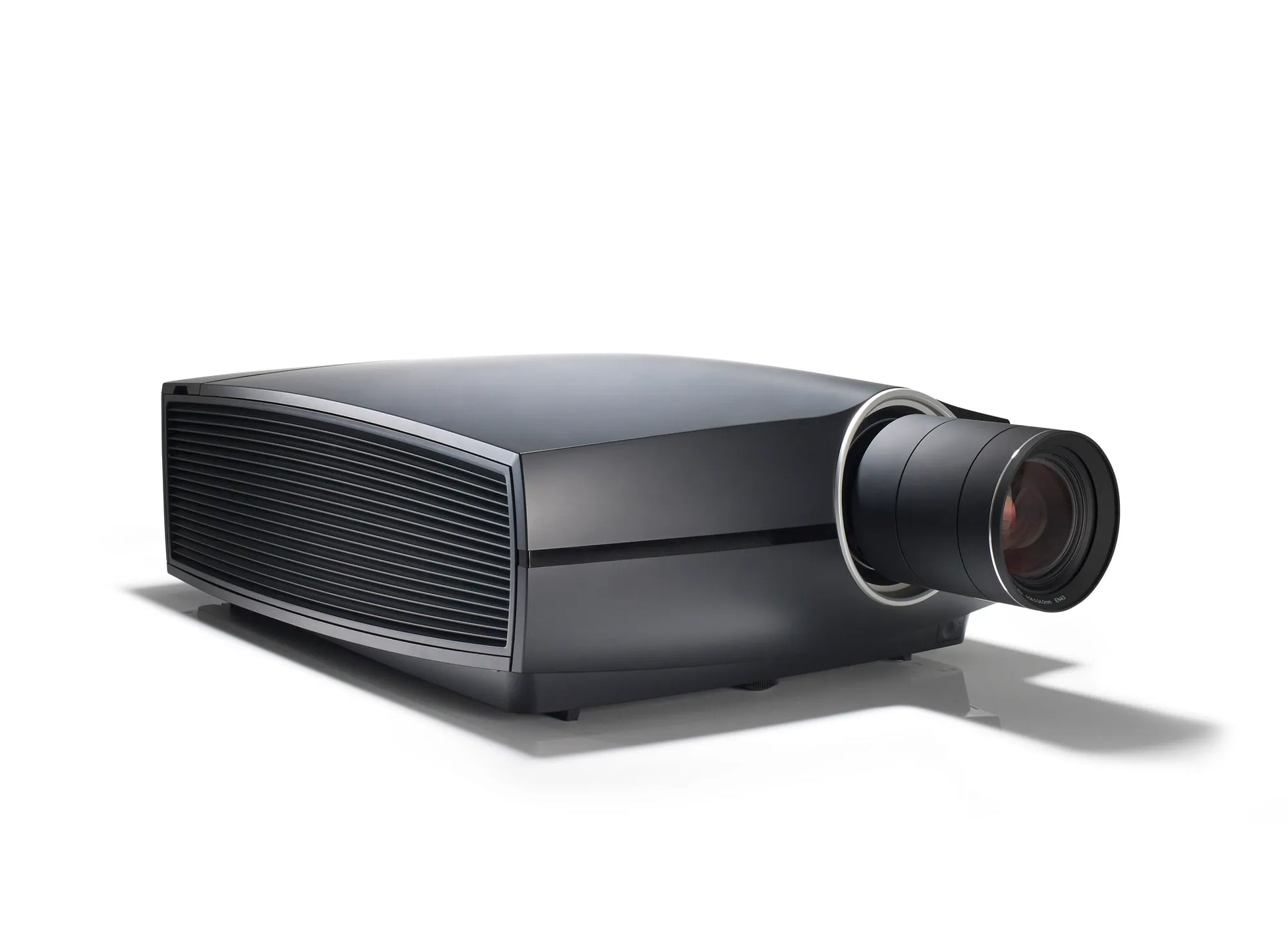

Barco F80-4K12 Projector

Barco F80-4K12 12,000 Lumens, 4K UHD, DLP Laser Phosphor Projector

The Barco F80-4K12 delivers stunning 4K UHD images with exceptional detail and vibrant colours meeting Rec. 709 standards. Powered by laser-phosphor technology, this 12,000-lumen projector eliminates frequent lamp changes, reducing maintenance costs and downtime.

Its advanced Barco Pulse processing ensures sharp imagery with minimal latency through Single Step Processing. Designed for fixed installations in museums, boardrooms, auditoriums, and theme park attractions, the F80-4K12 offers unmatched flexibility.

It operates in any orientation and features a comprehensive selection of all-glass lenses with extensive shift ranges, adapting to virtually any installation requirement.

The robust cooling design extends operating life while lowering total cost of ownership. Perfect for both standard presentations and immersive 3D experiences, the F80-4K12 combines superior image quality with reliable performance and long-term value.

Features:

• Stunning images with Rec. 709 colour gamut
• Ultimate installation flexibility
• 3D capable

Specifications:

• Notes:
  • * When measured with the GLD 1.43-2.12:1 lens in Wide Angle
  • ** For optimal performance, switch off the projector regularly. For details please consult the manual.
  • *** Except on light source: 20,000 hours in normal mode, or 3 years, whichever comes first.
• Projector type: Single-chip DLP (0.67") laser phosphor projector

• Technology: 0.67" DMD x1
• Resolution: 3,840 x 2,400 (4K UHD) / 2,716 x 1,600 (WQXGA+ native)
• Brightness:
  • 11,300 centre lumens
  • 10,700 ANSI lumens
  • 12,000 ISO lumens
• Brightness uniformity: > 90%
• Contrast ratio: 1,200:1 sequential, 10,000:1 dynamic*
• Light source: Laser phosphor
• Light source lifetime: > 20000 h in normal mode, > 12000 h in silent mode, > 40000 h in long life mode, > 12000 h in high brightness mode
• Aspect ratio: 17:10 native
• Colour space: Rec. 709
• Orientation: 360° rotation, no restrictions
• Sealed DLP core: Yes
• 24/7 operation: Yes**
• Colour correction: P7 RealColor
• CLO (constant light output): Yes
• Keystone correction: Yes
• Image processing:
  • Embedded warp & blend engine
  • direct adjust OSD + Ptoolset
• 3D:
  • Active stereoscopic 3D / Passive stereo compatible
  • max WQXGA @120Hz
• Lens type: GLD / FLD+ (lens adapter needed) / FLDX (lens adapter needed)
• Optical lens shift:
  • Vertical up to 125%, depending on lens
  • Horizontal up to 50%, depending on lens
  • Motorized zoom and focus (with lens memory on GLD and FLDX lenses)
  • Motorized lens shift (with position memory on all lenses)
• Lens range: GLD-range: 0.8 - 1.0 ; 1.0 - 1.35 ; 1.35 - 2.0 ; 2.0 - 3.0
• Optical dowser: Laser dimming
• Inputs: HDMI 2.0 (HDCP2.2, HDR10) / 2x DP 1.2 / 12G in (and 12G loop through) /2x dual link DVI-D / HDBaseT
• Input resolutions:
  • From VGA up to 4K (4096 x 2160)
  • refresh rates:
  • 24Hz to 120Hz for WQXGA+ (2716x1600) and 24Hz to 60Hz for 4K/4KUHD (4096 x 2160/ 3860 x 2400)
• Software tools: Projector Toolset
• Control: TCP-IP / IR / RS-232 /XLR wired
• Network connection: 10/100 Base-T, RJ-45 connector
• Power requirements: 100-240V / 50-60Hz
• Power consumption: 1050 W nominal, 1200 W maximum
• Standby power: < 0.5W
• Dissipation BTU: max 4100 BTU/h
• Noise level (typical at 25°C/77°F): 35 dB(A) when used in silent mode / 39 dB(A) in nominal mode
• Operational ambient temperature: 0°-35°C / 32°-95°F
• Operating humidity: 0% - 80% RH (non-condensed)
• Storage temperature: -20 to 60 °C
• Storage humidity: 20 - 90% RH (non-condensed)
• Dimensions (WxLxH): 480 x 680 x 227 mm / 18.9 x 26.7 x 8.9 in (without feet)
• Weight: 26.8 kg / 59.1 lbs (without lens)
• Shipping Dimensions: 583 x 754 x 444 mm / 23.0" x 30.9" x 17.5"
• Shipping weight: 38.5 kg / 81.6 lbs
• Standard accessories: Power cord, wireless/XLR wired rugged remote control
• Certifications:
  • Compliant with UL60950-1 and EN60950-1
  • complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHs
• Warranty:
  • Limited 3 years on parts and labor (***)
  • Extendable up to 5 years
• Blend: horizontal and vertical edge blending
• Screen size: max 20m
• Colour reproduction: P3 DCI (98%) with P7 colour correction
• DMX 512: Standard
