Barco F70‑W8 Projector

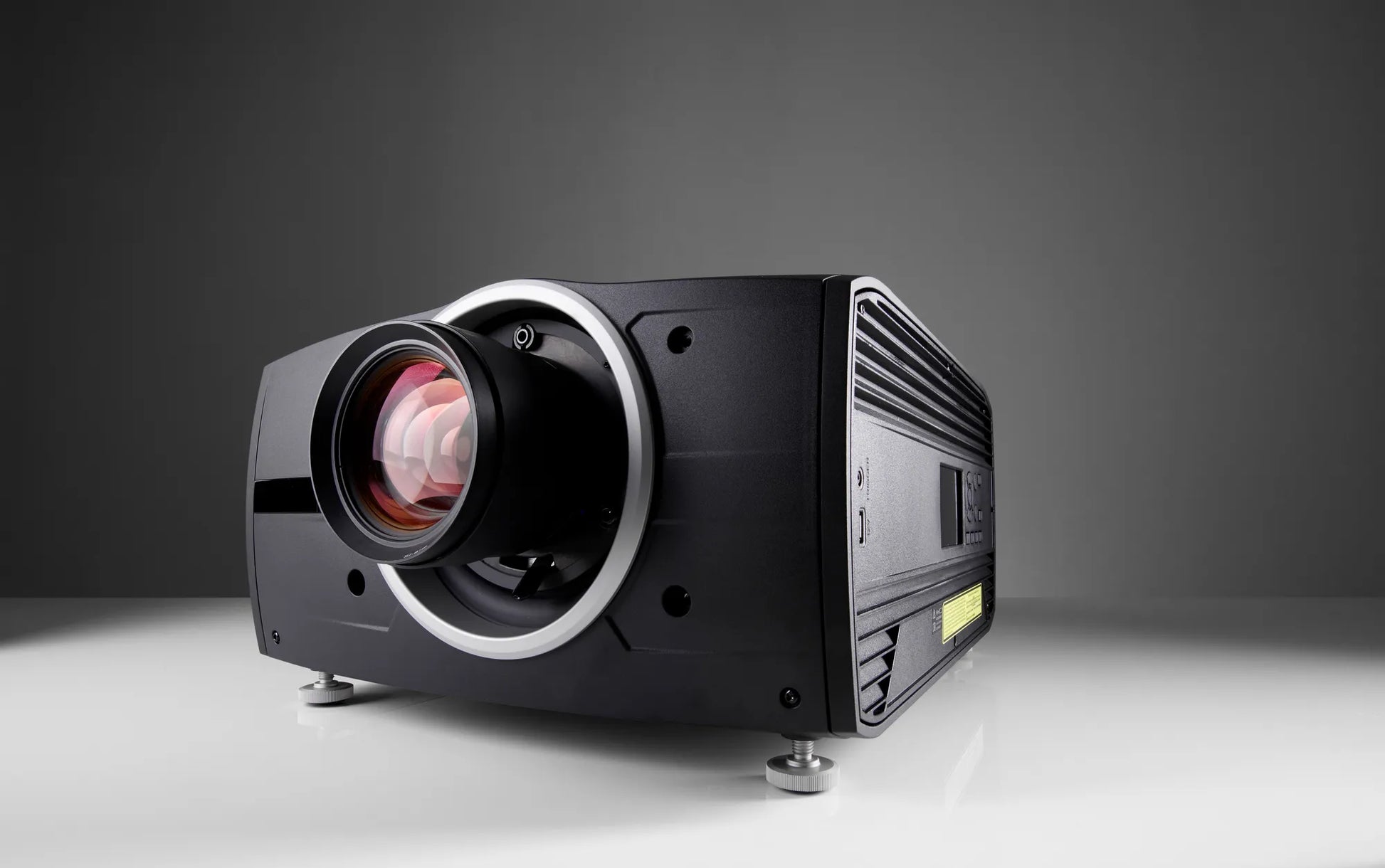

Barco F70‑W8 WUXGA Laser Phosphor Projector

The Barco F70-W8 is a laser phosphor projector engineered for the most demanding ProAV installations. Built for 24/7 operation with a rugged, motion platform-capable design, it delivers exceptional durability with up to 50,000 hours of lifetime performance. Featuring 8,000 lumens of brightness and Constant Light Output technology, the F70-W8 maintains consistent image quality and colour stability throughout its lifespan. Its flexible installation capabilities, including any-orientation mounting, combined with reusable FLD and FLD+ lenses make it ideal for theme parks, dark rides, and fixed installations requiring uncompromising reliability and performance.

Features:

• Durable and robust for 24/7 operation
• High brightness
• 8K Lumens
• Constant Light Output
• Laser Phosphor
• Pulse Processing
• 24/7 Operation
• 1 Chip DLP

Specifications:

• Projector type: 1DLP laser phosphor
• IR for NVG: no
• Resolution: 1,920 x 1,200 (WUXGA)
• Brightness: 8,000 lumens
• Brightness uniformity: 90%
• Contrast ratio: 1,800 – 6,000:1 sequential
• Light source: Laser phosphor
• Light source lifetime:
  • Minimum 25,000 hours @ full power

  • Up to 50,000 hours, depending on mode of operation
• Aspect ratio: 16:10
• Orientation: 360° rotation, no restrictions
• Sealed DLP core: Yes
• Colour correction: P7 RealColor
• CLO (constant light output): Yes
• Keystone correction: Yes
• Image processing: Embedded warp & blend engine
• 3D: Active stereoscopic 3D
• Lens type: FLD/FLD+

• Optical lens shift:
  • Vertical up to 134%, depending on lens

  • Horizontal up to 70%, depending on lens

  • Motorized zoom and focus (+ lens memory FLDX lenses)

  • Motorized lens shift (with position memory on all lenses)
• Inputs:
  • HDSDI

  • 2x DP1.2

  • 2x dual link DVI-I

  • HDBaseT

  • HDMI 2.0 (HDCP2.2, HDR10)

  • RJ 45 Ethernet

  • DMX in/out

  • RS232 in

  • 2x USB

  • 12v out
• Input resolutions:
  • Including and up to:

  • 1,920 x 1200 @ 60Hz

  • 2,560 x 1,600 @ 120Hz
  • refresh rates:
  • 24Hz to 120Hz for WQXGA (2560x1600) and 24Hz to 60Hz for 4K/4KUHD (4096 x 2160/ 3860 x 2400)
• Input colour depth:
  • DVI: Native including and up to 1920x1200@120Hz 8 bit RGB. Non-native including and up to 2560x1600@60Hz 8 bit RGB and 3840x2400@50Hz 8 bit RGB
  • DisplayPort: Native including and up to 1920x1200@120Hz 12 bir RGB. Non-native including and up to 2560x1600@120Hz 12 bit RGB and 3840x2400@60Hz 8 bit RGB
• Software tools: Projector Toolset
• Control: IR, RS232, RJ45
• Network connection: IR, RS232, RJ45
• Power requirements: 100-240V / 50-60Hz
• Power consumption: 1,100 W Max.
• BTU per hour: Max 4,000 BTU/h
• Noise level (typical at 25°C/77°F): 36 dB(A)
• Operating temperature: 10 - 40 °C (sea level)
• Operating humidity: 20 - 90% RH
• Storage temperature: -20 to 60 °C
• Storage humidity: 10 - 90% RH
• Dimensions (WxLxH): 475 x 593 x 286 mm / 18,7 x 23,3 x 11,2 in
• Weight: 37 kg / 81,5 lbs
• Standard accessories: Power cord, wireless remote control
• Certifications: CE, FCC Class A and cCSAus
• Warranty: Limited 5 years parts and labour, extendable
