Barco F70‑W6 Projector

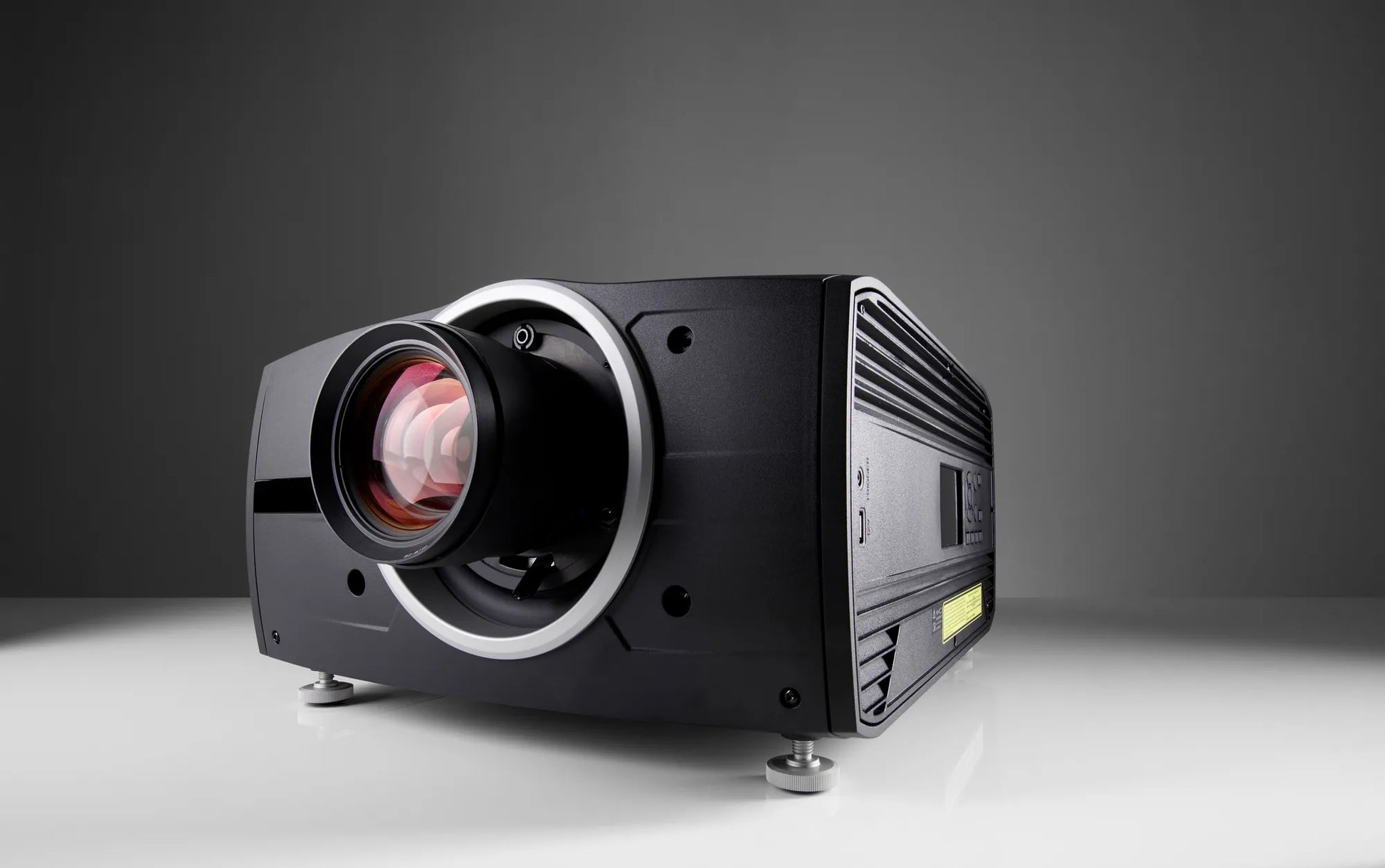

Barco F70‑W6 WUXGA Laser Phosphor Projector

The F70-W6 laser phosphor projector delivers exceptional performance for simulation and ProAV applications demanding high robustness, extended lifetime, and laser-sharp image quality. Built with protective metal construction, it withstands rapid movements from motion platforms, ideal for theme parks and demanding venues. Engineered for 24/7 operation, the F70-W6 runs in any orientation, offering maximum installation flexibility. With a lifespan up to 50,000 hours, it's among the market's most durable projectors, minimizing costly maintenance and downtime. Brightness and clarity define this projector.

At 5,900 lumens with WUXGA resolution, it's one of the brightest single-chip DLP projectors available. Constant Light Output (CLO) technology maintains consistent brightness and colour throughout its operational life, ensuring reliable performance in the most demanding environments. All F-series projectors share compatible high-resolution FLD and FLD+ lenses, allowing you to reuse optics across your installation.

The Barco F70‑W6 Projector is also available in a 3D version.

Features:

• Durable and robust for 24/7 operation
• High brightness
• 1 Chip DLP
• Constant Light Output
• Laser Phosphor
• Pulse Processing
• 24/7 Operation

Specifications:

• Brightness: 5,900 Typical ANSI Lumens
• Contrast ratio: 1,800 – 6,000:1 sequential
• IR for NVG: no
• Brightness uniformity: 90%
• Aspect ratio: 16:10
• Projector type: 1DLP laser phosphor
• Resolution: 1,920 x 1,200 (WUXGA)
• Lens type: FLD-series
• Optical lens shift:
  • Vertical up to 134%, depending on lens

  • Horizontal up to 70%, depending on lens

  • Motorized zoom and focus (+ lens memory FLDX lenses)

  • Motorized lens shift (with position memory on all lenses)
• Colour correction: P7 RealColor
• CLO (constant light output): Yes
• Light source: Laser phosphor
• Light source lifetime:
  • Minimum 25,000 hours @ full power

  • Up to 50,000 hours, depending on mode of operation
• Sealed DLP core: Yes
• Orientation: 360° rotation, no restrictions
• 3D: Active stereoscopic 3D
• Image processing: Embedded warp & blend engine
• Keystone correction: Yes
• Inputs:
  • HDSDI

  • 2x DP1.2

  • 2x dual link DVI-I

  • HDBaseT

  • HDMI 2.0 (HDCP2.2, HDR10)

  • RJ 45 Ethernet

  • DMX in/out

  • RS232 in

  • 2x USB

  • 12v out
• Input resolutions:
  • Including and up to:

  • 1,920 x 1200 @ 60Hz

  • 2,560 x 1,600 @ 120Hz
  • refresh rates:
  • 24Hz to 120Hz for WQXGA (2560x1600) and 24Hz to 60Hz for 4K/4KUHD (4096 x 216/ 3860 x 2400)
• Input colour depth: Up to 12-bit, depending on configuration
• Software tools: Projector Toolset
• Control: IR, RS232, RJ45
• Network connection: IR, RS232, RJ45
• Power requirements: 100-240V / 50-60Hz
• Power consumption: 743 W nominal, 1100 W maximum
• BTU per hour: Max 4,000 BTU/h
• Noise level (typical at 25°C/77°F): 36 dB(A)
• Operating temperature: 10 - 40 °C (sea level)
• Storage temperature: -20 to 60 °C
• Operating humidity: 20 - 80% RH
• Storage humidity: 10 - 90% RH
• Dimensions (WxLxH): 475 x 593 x 286 mm / 18,7 x 23,3 x 11,2 in
• Weight: 37 kg / 81,5 lbs
• Standard accessories: Power cord, wireless remote control
• Certifications: CE, FCC Class A and cNus
• Warranty: Limited 5 years parts and labour, extendable
