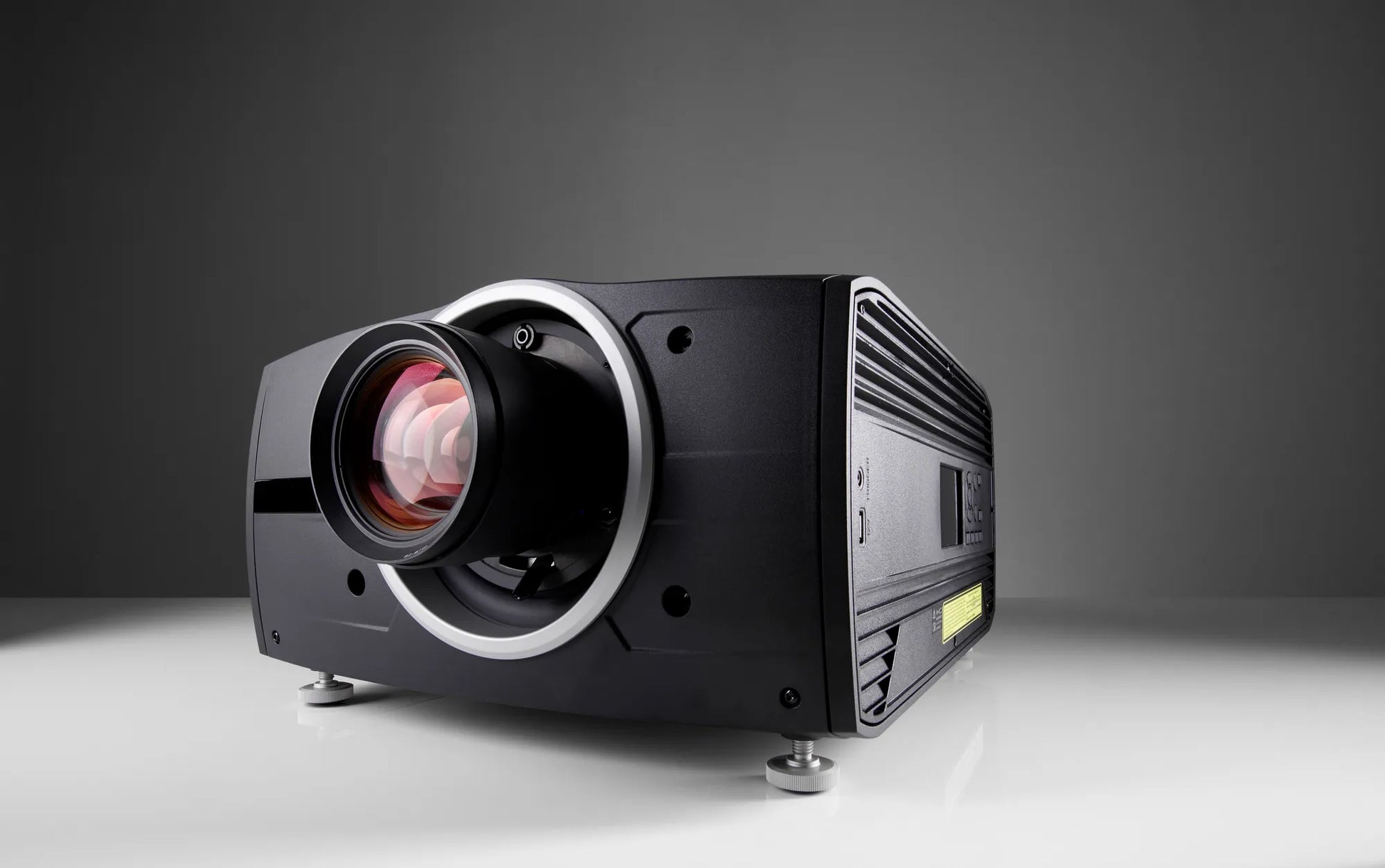

Barco F70‑4K8 Projector

Barco F70‑4K8 4K UHD Laser Phosphor Projector

The Barco F70-4K8 is a professional-grade laser phosphor projector engineered for the most demanding ProAV installations. Featuring native WQXGA resolution with 4K UHD capability, this single-chip DLP projector delivers 7,500 lumens of brightness, among the highest in its class, ensuring vibrant, sharp imagery in any environment. Built for extreme durability and 24/7 operation, the F70-4K8 boasts a lifespan of up to 50,000 hours and can run in any orientation, making it ideal for theme parks, dark rides, motion platforms, and fixed installations requiring uncompromising reliability. Its rugged design minimizes maintenance costs and downtime. Constant Light Output (CLO) technology maintains consistent brightness and colour accuracy throughout the projector's lifetime.

The F70-4K8 uses the same high-resolution FLD and FLD+ lenses as other F-series projectors, allowing lens reuse across your installation fleet and reducing total cost of ownership. When performance, longevity, and installation flexibility matter most, the F70-4K8 delivers professional results that withstand the harshest conditions.

Features:

• 4K UHD resolution
• Durable and robust for 24/7 operation
• High brightness
• 8K Lumens
• 4K UHD
• 1 Chip DLP
• Constant Light Output
• Laser Phosphor
• Pulse Processing
• 24/7 Operation

Specifications:

• Projector type: 1DLP laser phosphor
• IR for NVG: no
• Resolution: 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native)
• Brightness: 7,500 lumens
• Brightness uniformity: 90%
• Contrast ratio: 1,800 – 6,000:1 sequential
• Light source: Laser phosphor
• Light source lifetime:
  • Minimum 25,000 hours @ full power

  • Up to 50,000 hours, depending on mode of operation
• Aspect ratio: 16:10
• Orientation: 360° rotation, no restrictions
• Sealed DLP core: Yes
• Colour correction: P7 RealColor
• CLO (constant light output): Yes
• Keystone correction: Yes
• Image processing: Embedded warp & blend engine
• 3D: Active stereoscopic 3D
• Lens type: FLD/FLD+
• Optical lens shift:
  • Vertical up to 146%, depending on lens

  • Horizontal up to 70%, depending on lens

  • Motorized zoom and focus (+ lens memory FLDX lenses)

  • Motorized lens shift (with position memory on all lenses)
• Inputs:
  • HDSDI

  • 2x DP1.2

  • 2x dual link DVI-I

  • HDBaseT

  • HDMI 2.0 (HDCP2.2, HDR10)

  • RJ 45 Ethernet

  • DMX in/out

  • RS232 in

  • 2x USB

  • 12v out
• Input resolutions:
  • Including and up to:

  • 3,840 x 2,400 @ 60Hz

  • 3,840 x 2,160 @ 60Hz

  • 4,096 x 2,160 @ 60Hz

  • 2,560 x 1,600 @ 120Hz
  • refresh rates:
  • 24Hz to 120Hz for WQXGA (2560x1600) and 24Hz to 60Hz for 4K/4KUHD (4096 x 2160/ 3860 x 2400)
• Input colour depth:
  • DVI: Including and up to 2560x1600@60Hz 8 bit RGB and 3840x2400@50Hz 8 bit RGB
  • DisplayPort: Including and up to 2560x1600@120Hz 12 bit RGB and 3840x2400@60Hz 8 RGB
• Software tools: Projector Toolset
• Control: IR, RS232, RJ45
• Network connection: IR, RS232, RJ 45
• Power requirements: 100-240V / 50-60Hz
• Power consumption: 1,100 W Max.
• BTU per hour: Max 4,00 BTU/h
• Noise level (typical at 25°C/77°F): 36 dB(A)
• Operating temperature: 10 - 40 °C (sea level)
• Operating humidity: 20 - 80% RH
• Storage temperature: -20 to 60 °C
• Storage humidity: 10 - 90% RH
• Dimensions (WxLxH): 475 x 593 x 286 mm (18,7 x 23,3 x 11,2 in)
• Weight: 37 kg (81,5 lbs)
• Standard accessories: Power cord, wireless remote control
• Certifications: CE, FCC Class A and cCSAus
• Warranty: Limited 5 years parts and labour, extendable
