Barco F70‑4K6 Projector

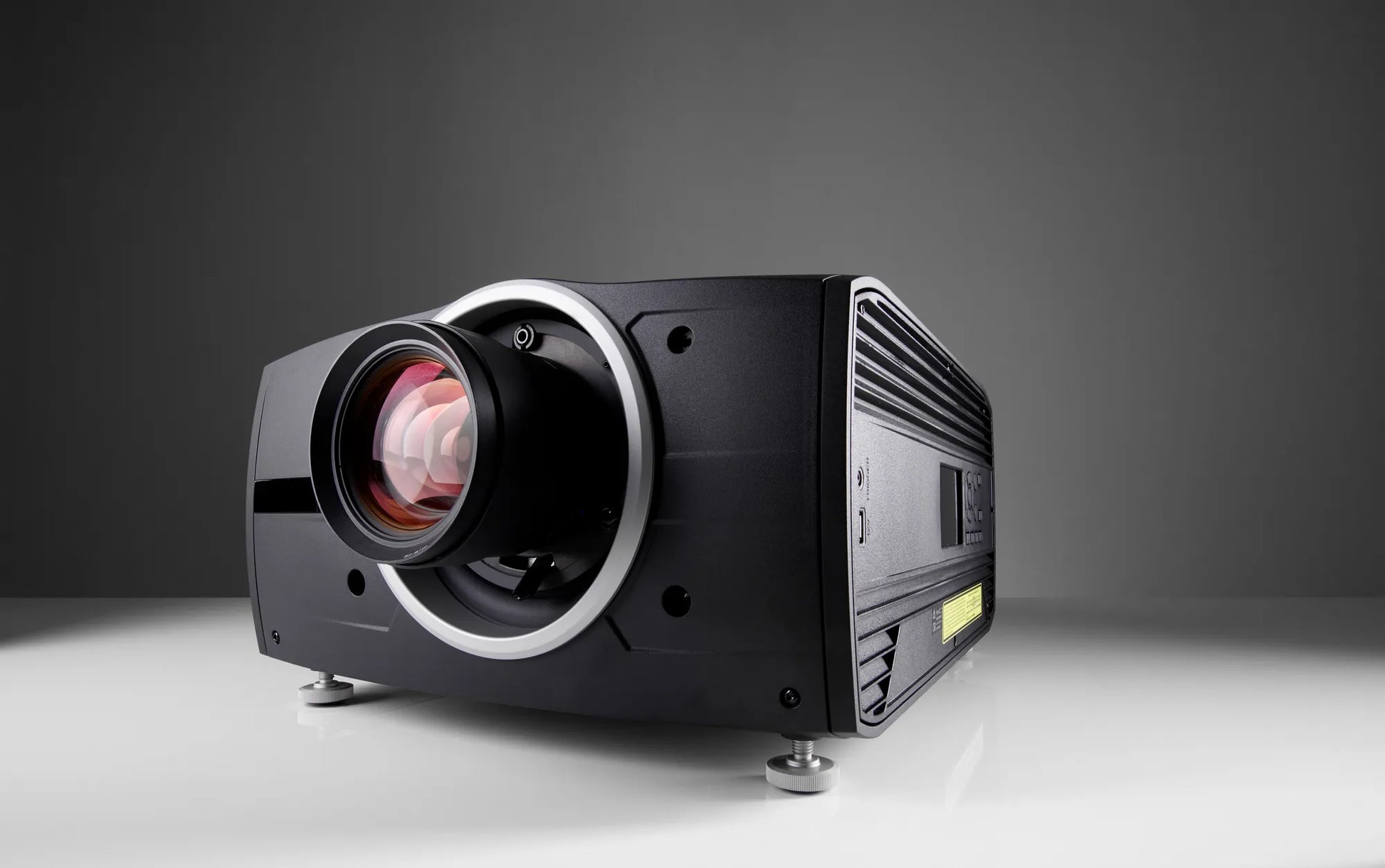

Barco F70‑4K6 4K UHD Laser Phosphor Projector

The Barco F70-4K6 is a laser phosphor projector engineered for the most demanding simulation and ProAV applications. Featuring native WQXGA resolution with 4K UHD capability, it delivers laser-sharp image quality that meets professional standards. Built for extreme durability, the F70-4K6 withstands rapid movements and sudden impacts from motion platforms, making it ideal for theme parks and high-stress environments. With a lifespan of up to 50,000 hours, it's one of the most robust projectors available and designed for 24/7 continuous operation.

At 5,400 lumens, the F70-4K6 ranks among the brightest single-chip DLP projectors with 4K UHD resolution. Constant Light Output (CLO) technology maintains consistent brightness and color throughout its operational life. Barco's proprietary Single Step Processing (SSP) achieves 4K UHD in one step, delivering sharper images with higher quality and reduced latency.

The projector operates in any orientation, offering flexible installation options. All F-series projectors share compatible FLD and FLD+ lenses, allowing you to reuse existing optics across your fleet. Built for performance and reliability in the most demanding environments.

The Barco F70‑4K6 Projector is also available in a 3D version.

Features:

• 4K UHD resolution
• Durable and robust for 24/7 operation
• High brightness
• 4K UHD
• 1 Chip DLP
• Constant Light Output
• Laser Phosphor
• Pulse Processing
• 24/7 Operation

Specifications:

• Brightness: 5,400 Typical ANSI Lumens
• Contrast ratio: 1,800 – 6,000:1 sequential
• IR for NVG: no
• Brightness uniformity: 90%
• Aspect ratio: 16:10 native
• Projector type: 1DLP laser phosphor
• Resolution: 3,840 x 2,400 / 3,840 x 2,160 / 2,560 x 1,600 (native)
• Lens type: FLD-series
• Optical lens shift:
  • Vertical up to 146%, depending on lens

  • Horizontal up to 70%, depending on lens

  • Motorized zoom and focus (+ lens memory FLDX lenses)

  • Motorized lens shift (with position memory on all lenses)
• Colour correction: P7 RealColor
• CLO (constant light output): Yes
• Light source: Laser phosphor
• Light source lifetime:
  • Minimum 25,000 hours @ full power

  • Up to 50,000 hours, depending on mode of operation
• Sealed DLP core: Yes
• Orientation: 360° rotation, no restrictions
• 3D: Active stereoscopic 3D
• Image processing: Embedded warp & blend engine
• Keystone correction: Yes
• Inputs:
  • HDSDI

  • 2x DP1.2

  • 2x dual link DVI-I

  • HDBaseT

  • HDMI 2.0 (HDCP2.2, HDR10)

  • RJ 45 Ethernet

  • DMX in/out

  • RS232 in

  • 2x USB

  • 12v out
• Input resolutions:
  • Including and up to:

  • 3,840 x 2,400 @ 60Hz

  • 3,840 x 2,160 @ 60Hz

  • 4,096 x 2,160 @ 60Hz
  • 2,560 x 1,600 @120Hz
  • refresh rates:
  • 24Hz to 120Hz for WQXGA (2560x1600) and 24Hz to 60Hz for 4K/4KUHD (4096 x 2160/ 3860 x 2400)
• Input colour depth: Up to 112-bit, depending on configuration
• Software tools: Projector Toolset
• Control: IR, RS232, RJ45
• Network connection: IR, R232, RJ45
• Power requirements: 100-240V / 50-60Hz
• Power consumption: 743 W nominal, 1100 W maximum
• BTU per hour: Max 4,000 BTU/h
• Noise level (typical at 25°C/77°F): 36 dB(A)
• Operating temperature: 10 - 40 °C (sea level)
• Storage humidity: -20 0 80% RH
• Dimensions (WxLxH): 475 x 593 x 286 mm / 18,7 x 23,3 x 11,2 in
• Weight: 37 kg / 81,5 lbs
• Standard accessories: Power cord, wireless remote control
• Certifications: CE, FCC Class A and cNus
• Warranty: Limited 5 years parts and labour, extendable
