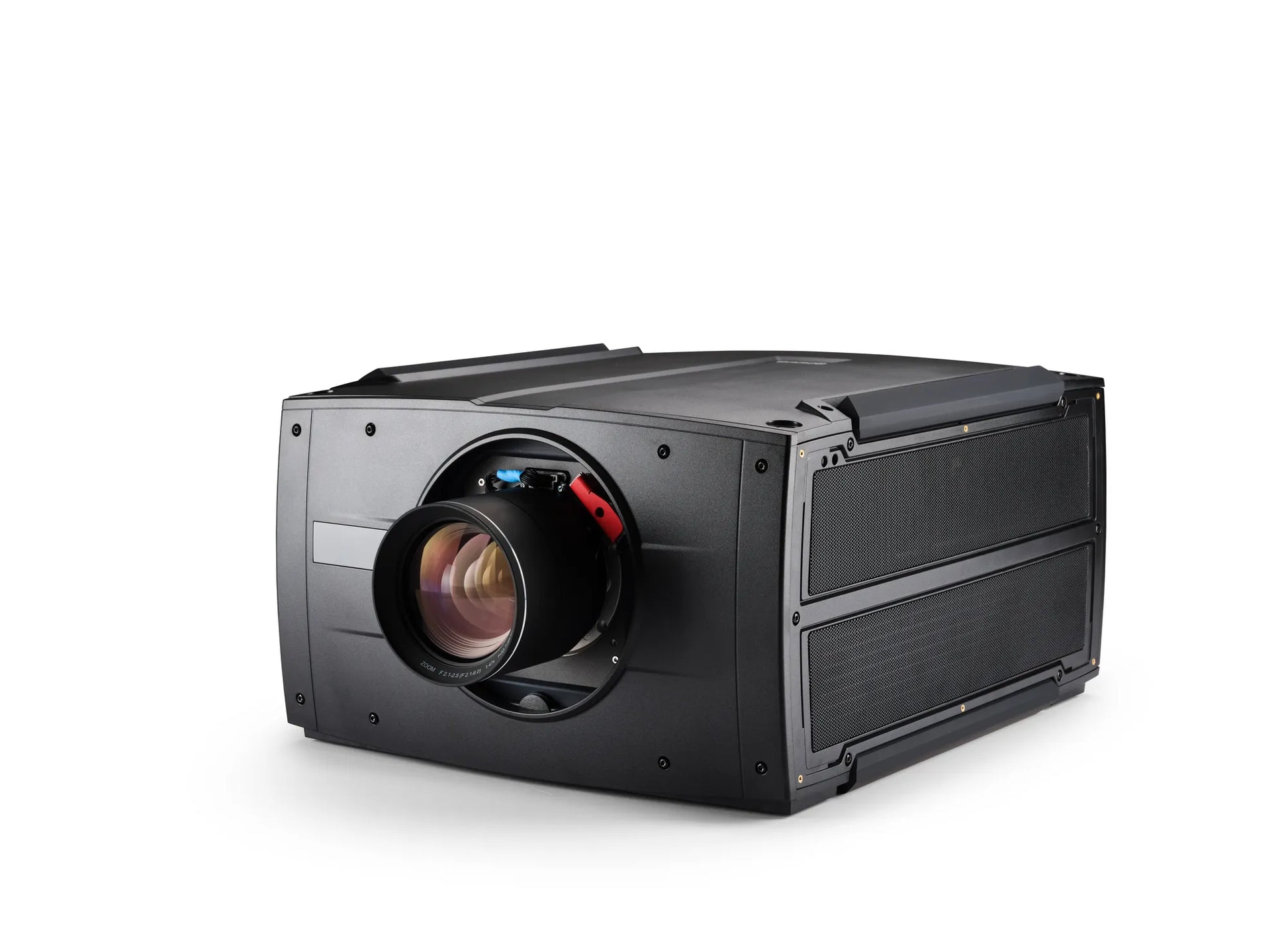

Barco F400-N4K Projector

Barco F400-N4K Reliable Native 4K up to 8K 240Hz Projector

Barco's F400-N4K is a solid-state laser-phosphor projector engineered for simulation and training environments. Featuring native 4K resolution (4,096 x 2,176) with dynamic scaling up to 8K, it delivers exceptional detail across large projection surfaces. Processing speeds reach 240 Hz at native 4K, ensuring smooth, low-latency performance in fast-moving scenarios like jet and racing simulators. Built without moving parts, the F400-N4K withstands shock and vibration in motion-based platforms.

Its H-beam aluminium core provides structural rigidity while maintaining a favourable strength-to-weight ratio.

The next-generation Barco Pulse electronics enable advanced real-time processing, pixel-shifting, warping, and blending, in a single step, critical for demanding simulator systems.

The open Barco Pulse API allows partners to integrate custom management tools and value-added features. Optional accessories support lens mounting on motion platforms for enhanced image stability. Designed for reliability in the most demanding training and simulation applications.

Features:

• Dynamic resolution up to 8K and frame rate up to 240Hz for incredible image performance
• Revolutionary static laser-phosphor for speckle-free outstanding image quality
• Rock-solid and true solid-state, fully rated for shock and vibration
• Next Gen Barco Pulse for more powerful processing and unified interface across all Barco projectors
• 5 years warranty as standard
• Also available: FS400-N4K with dedicated IR
• 4K
• 1 Chip DLP
• Constant Light Output
• Pulse Processing
• 24/7 Operation
• Laser
• Eco

Specifications:

• Brightness:
  • 5,000 typical ANSI lumens

  • 5,300 typical centre lumens
• Contrast ratio: 2,000 – 10,000:1 sequential
• IR for NVG: no
• Brightness uniformity: 90%
• Aspect ratio: 1.88:1
• Projector type: 1-chip DLP laser phosphor
• Resolution:
  • 4,096 x 2,176 (4K native)

  • 6,144 x 3,264 (6K)

  • 8K pixel shift
• Lens type: FLD+ / FLDX / FLC
• Optical lens shift:
  • Vertical up to 134% depending on iris

  • Horizontal up to 50% depending on lens

  • Motorized zoom & Focus + Lens memory (FLDX)

  • Motorized lens shift (all lenses)
• Colour correction: P7 RealColor
• Colour space: REC709
• CLO (constant light output): Yes
• Light source: Static laser phosphor
• Light source lifetime:
  • Minimum 25,000 hours @ full power

  • Up to 50,000 hours, depending on mode of operation
• Sealed DLP core: Yes
• Orientation: 360° rotation, no restrictions
• 3D: Active stereoscopic 3D
• Image processing: Embedded warp & blend engine
• Keystone correction: Yes
• Inputs:
  • 1 x DP 1.4 (HDCP 2.2)

  • 1 x HDMI 2.1 (HDCP 2.2)

  • 4 x DP 1.2
• Input resolutions:
  • Including and up to:

  • 4,096 x 2,176 @ 60Hz

  • 4,096 x 2,176 @ 120Hz

  • 4,096 x 2,176 @ 240Hz

  • 6,144 x 3,264 @ 60Hz
• Input colour depth: Up to 12-bit, depending on configuration
• Software tools: Pulse Toolset + Android app + iOS app
• Control: IR, RJ45, Cabled Remote Control
• Network connection: 10/100/1000 Mbit
• Power requirements: 100-240V / 50-60Hz
• Power consumption:
  • 815W typical
  • 1200W maximum rated
• BTU per hour:
  • 2781 BTU/h typical
  • 4095 BTU/h maximum
• Noise level (typical at 25°C/77°F): 34 dB(A)
• Operating temperature: 10 - 40 °C (sea level)
• Standby power: <0.5W
• Storage temperature: -20 to 60 °C
• 24/7 operation: Yes
• Operating humidity: 20 - 80% RH
• Storage humidity: 10 - 90% RH
• Dimensions (WxLxH): 472 x 562(542) x 293 mm / 18,6 x 22,1 (21,3) x 11,5 in (front cover removed)
• Weight: 31,0 kg / 68 lbs
• Standard accessories: Power cord, wireless remote control
• Certifications: CE, FCC Class A and cSGSus, KCC, CCC
• Warranty: Limited 5 years parts and labour, extendable.
