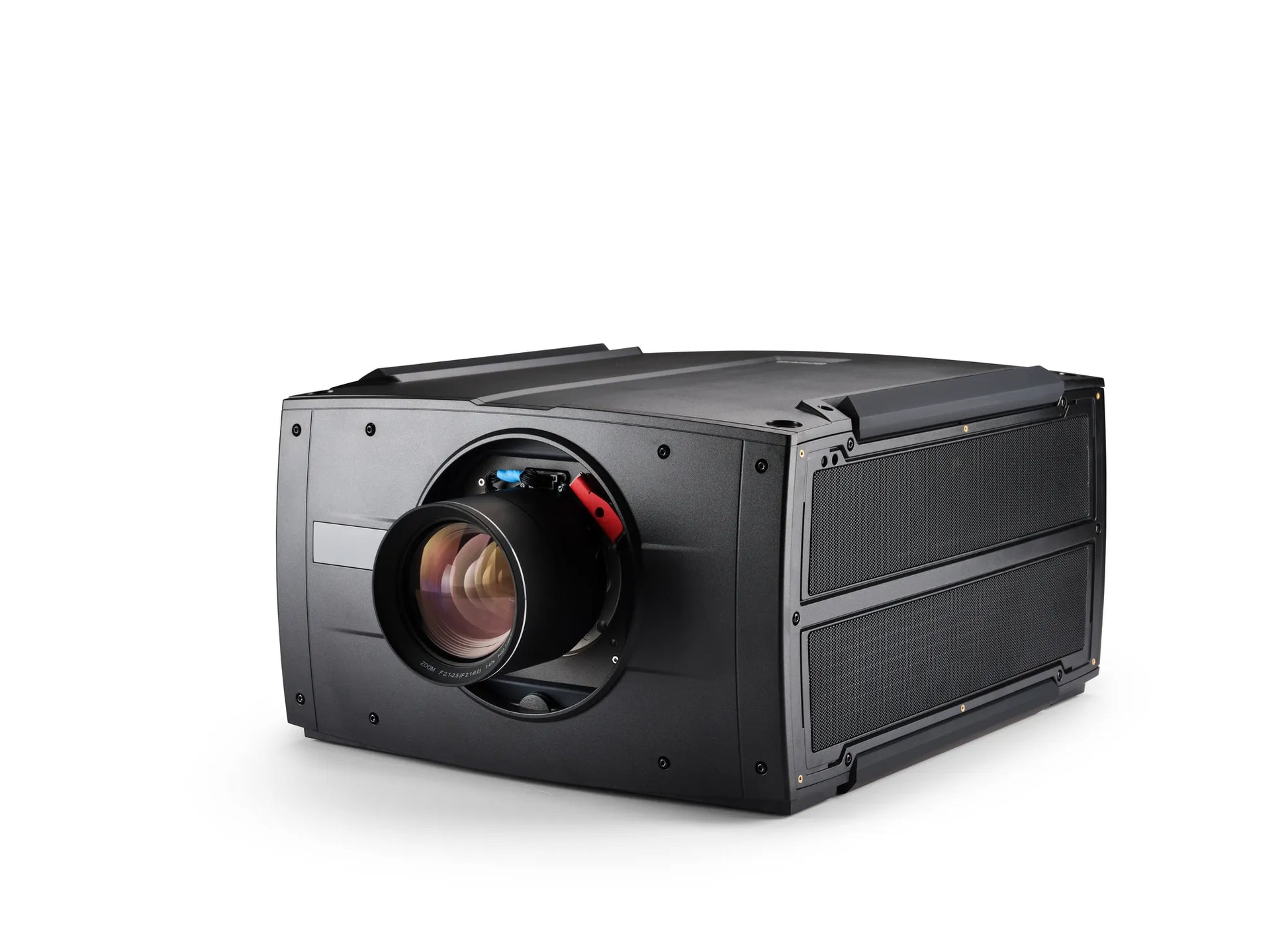

Barco F400‑4K Projector

Barco F400‑4K 4K UHD up to 120Hz Projector

The F400-4K is a solid-state static laser-phosphor projector engineered for simulation and training environments. With 4K resolution and processing speeds up to 120 Hz at WQXGA, it delivers dynamic, high-speed performance without compromising image quality or latency. Built for demanding conditions, the F400-4K features no moving parts, no colour or phosphor wheels, making it fully rated for shock and vibration on motion platforms.

Its H-beam aluminium core provides optimized strength-to-weight ratio for durability and easy servicing access. Powered by next-generation Barco Pulse electronics, the projector handles advanced low-latency processing, pixel-shifting, warping, and blending, in a single step.

An open API enables partners to integrate custom management tools and value-add features. Optional lens support accessories are available for enhanced robustness on motion-based platforms.

A dedicated FS400 series with powerful IR light source is available for NVG stimulation applications.

Features:

• Up to 4K resolution @60-120Hz framerate for great image performance
• Revolutionary static laser-phosphor for speckle-free, outstanding image quality
• Rock-solid and true solid-state, fully rated for shock and vibration
• Next Gen Barco Pulse for more powerful processing and unified interface across all Barco projectors
• 5 years warranty as standard
• Also available: FS400-4K with dedicated IR for NVG training
• 4K
• 1 Chip DLP
• Constant Light Output
• Pulse Processing
• 24/7 Operation
• Laser
• Eco

Specifications:

• Brightness:
  • 5,400 typical ANSI lumens

  • 5,750 typical centre lumens
• Contrast ratio: 1,800 – 6,000:1 sequential
• IR for NVG: No
• Brightness uniformity: 90%
• Aspect ratio: 16:10
• Projector type: 1-chip DLP laser phosphor
• Resolution:
  • 2,560 x 1,600 (WQXGA native)

  • 3,840 x 2,400 (4K UHD)
• Lens type: FLD+ / FLDX
• Optical lens shift:
  • Vertical up to 144% depending on iris

  • Horizontal up to 71% depending on lens

  • Motorized zoom & Focus + Lens memory (FLDX)

  • Motorized lens shift (all lenses)
• Colour correction: P7 RealColor
• Colour space: REC709
• CLO (constant light output): Yes
• Light source: Static laser phosphor
• Light source lifetime:
  • Minimum 25,000 hours @ full power

  • Up to 50,000 hours, depending on mode of operation
• Sealed DLP core: Yes
• Orientation: 360° rotation no restrictions
• 3D: Active stereoscopic 3D
• Image processing: Embedded warp & blend
• Keystone correction: Yes
• Inputs:
  • 1 x DP 1.4 (HDCP 2.2)

  • 1 x HDMI 2.1 (HDCP 2.2)

  • 4 x DP 1.2
• Input resolutions:
  • Including and up to:

  • 3840 x 2400 @ 60HZ

  • 3840 x 2160 @ 60Hz

  • 4096 x 2160 @ 60Hz

  • 2560 x 1600 @ 120Hz
• Input colour depth: Up to 12-bit, depending on configuration
• Software tools: Pulse Toolset + Android app + iOS app
• Control: IR, RJ45, Cabled Remote Control
• Network connection: 10/100/1000 Mbit
• Power requirements: 100-240V / 50-60Hz
• Power consumption:
  • 815W typical
  • 1200W maximum rated
• BTU per hour:
  • 2781 BTU/h typical
  • 4095 BTU/h maximum
• Noise level (typical at 25°C/77°F): 34 dB(A)
• Operating temperature: 10° - 40°C (sea level)
• Standby power: < 0.5W
• Storage temperature: - 20 to 60 °C
• 24/7 operation: Yes
• Operating humidity: 20 - 80% RH (no condense)
• Storage humidity: 10 - 90% RH (no condense)
• Dimensions (WxLxH): 472 x 562(542) x 293 mm / 18,6 x 22,1(21,3) x 11,5 in (front cover removed)
• Weight: 31Kg / 68Lbs (no lens)
• Standard accessories: Power cord. wireless remote control
• Certifications: CE. FCC Class A and cSGSus. KCC, CCC
• Warranty: Limited 5 years on parts and labour Extendable
