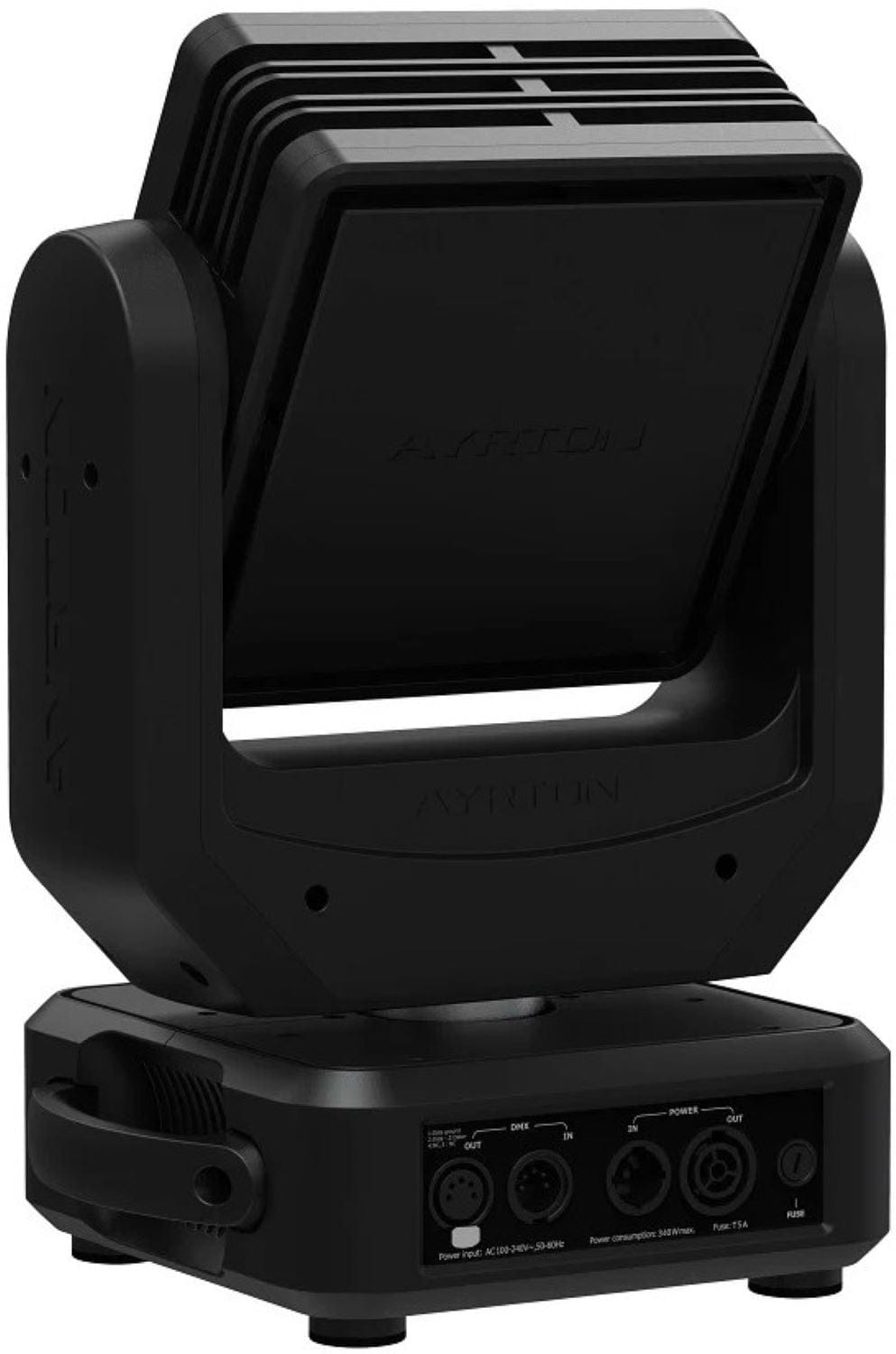

Ayrton MiniBurst AY016650 350 Watt 5600K CW 60000 Lumens LED - 120 Degree
MINIBURST is a versatile new graphic strobe luminaire with fast and powerful continuous, unlimited, rotation on pan and tilt, combining the main features of the MAGICBURST in an ultra compact format. Its unique minimalist design with no visible edges, a reduced visual footprint and lighter weight, make MINIBURST ideal for integration into a greater variety of applications. A 192 x 192 mm squared face supports 960 high-output LEDs grouped into 16 pixels on a 4 x 4 matrix. The duration, speed and intensity of each 60-LED pixel can be individually controlled to create breathtaking strobe effects. A library of fixed images and pre-programmed dynamic effects are accessible from fixture memory.
Features:
- Light Source: 350 W - 5600 K
- Lumens: 60,000
- Pixel Resolution: 4 x 4
- Pixel Population: 16 x 60 LED
- Movement: Infinite Pan Tilt
Specifications:
- Light source:
- 960 mono-chip LED source
- Pixel resolution: 4 x 4
- Pixel population: 16 of 60 LED
- Light output: up to 60,000 lumens
- Rated life (L70): up to 40,000 hours
- Flicker free sources management, suitable for TV applications and all video recorded events
- Movement:
- Continuous pan and tilt rotation
- Extremely accurate positioning
- Moving-head operated via either 8- or 16-bit resolution
- High-resolution stepper motors operated via microprocessors ensure
- Extreme accuracy and smooth movements.
- Pan and tilt automatic repositioning
- Colors:
- Monochromatic daylight source perfectly calibrated at 5600 K
- Dimmer / strobe:
- Electronic dimmer, allowing perfect light adjustment from 0 to 100%
- Individual control of the speed , duration and intensity for each pixel
- White strobe effect, with speed adjustment from 1 to 25 flashes per second
- Software features:
- Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
- Remote DMX addressing of luminaire and optional parameters through a standard DMX-RDM controller
- Built-in pattern effects with speed and fade controls for scenic applications
- Information menu including hour counter, temperature, software version
- Hardware features:
- Graphic LCD display for addressing and special functions settings, with flip function
- 6 menu buttons to set the functions
- Over temperature protection
- Integrated LumenRadio’s wireless CRMX TiMo RDM receiver
- XLR 5 pin male and female connectors for DMX connection
- powerCON TRUE1 male and female connectors for power connection
- Control:
- DMX 512 protocol, through DMX cable or wireless system
- DMX-RDM compatible
- Stand-alone mode and Master/Slave modes
- Local control panel, with LCD display
- Choice of 4 DMX modes (from 12 to 59 DMX channels)
- Power supply:
- Electronic supply with active PFC
- 100 to 240 Volts – 50/60 Hz
- Power 350 W maximum
- Cooling system:
- Advanced cooling system
- Self adjusting variable speed fans for quiet operation (Auto mode)
- Selectable auto, stage & studio ventilation modes
- Safety protection against temperatures excesses
- Housing:
- Moving-head skeleton made of aluminium and steel metal plates
- Heatsinks in aluminium and copper, satin finish
- Molded covers in self-extinguishing fire retardant ABS PC (V0 class)
- Two sides handles for transportation
- Four strong wide feet for better stability
- IP20 protection rating
- Exterior finish: black (Carbon)
- Installation:
- Fastening brackets system: Omega ¼ turn brackets designed for use with standard clamps
- Mounting points: two ¼ turn locking fittings allowing installation of omega brackets on projector
- Safety cable attachment point
- Operating parameters:
- Operating positions: all (device on floor or fixed to a support)
- Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
- Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
- Minimum usage distance: 1.0 m (3.28 ft)
- Compliance
- EU (EMC): EMC Directive 2014/30/EU
- EU (LVD): LVD Directive 2014/35/EU
- Size:
- Product: 285 x 399 x 220 mm (l x h x d)
- Flight-case foam: 340 x 425 x 275 mm (l x h x d)
- Weight:
- Product: 8.5 kg
