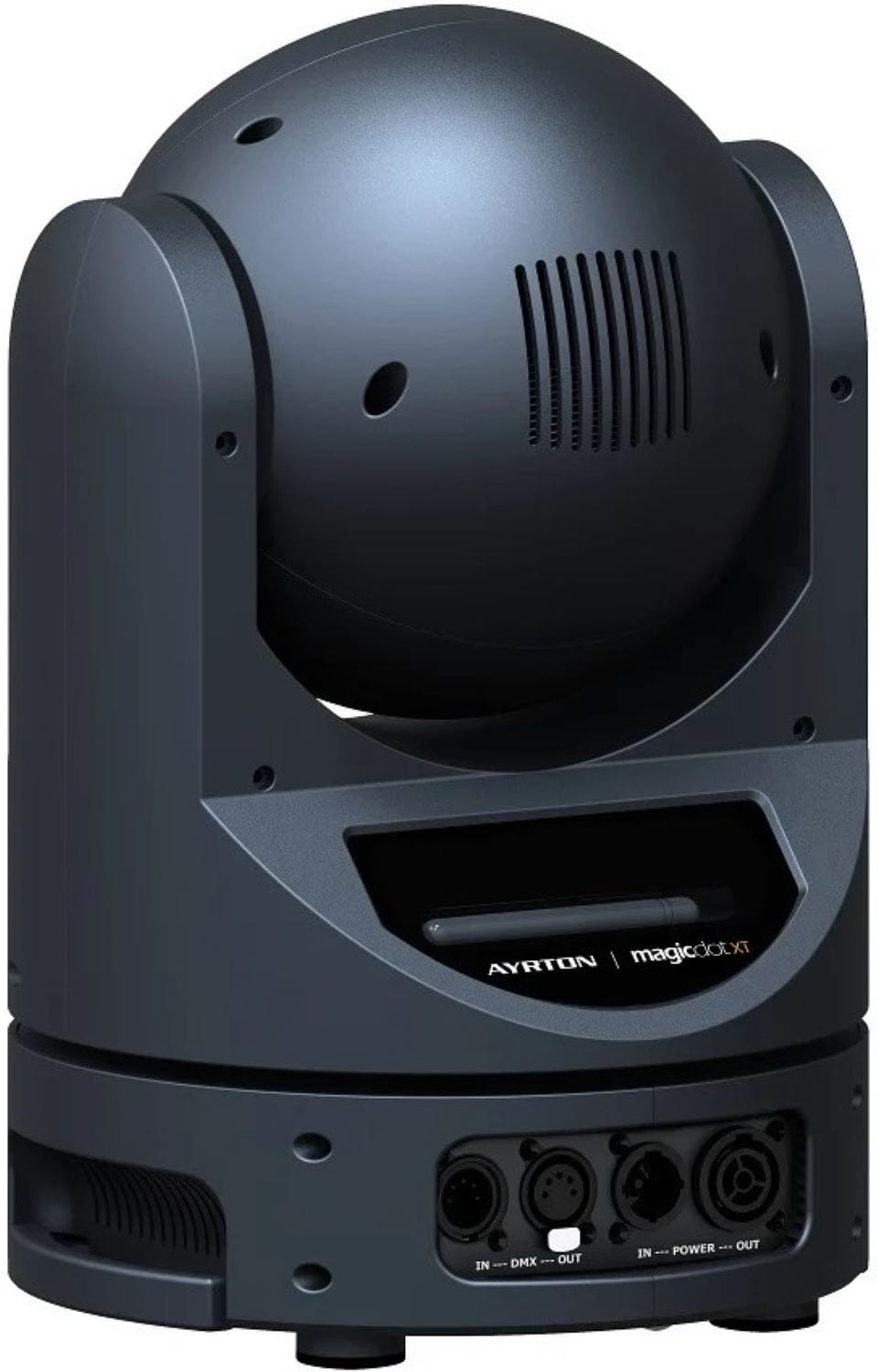

Ayrton MagicDot-XT AY015170 40 Watt 850 Lumens RGBW LED Moving Head Light - 2 Degree
MAGICDOT XT is a radical variant of the revolutionary MAGICDOT R. It is fitted with the Ayrton’s new and proprietary 126 mm diameter optic – which distinguishes the “XT” product line. Weighing in at 550 grammes, this new high-efficiency lens is the world’s largest collimator! Combined with an ultra-powerful, low-etendue, RGBW multichip LED emitter, MAGICDOT XT pushes the limits of technology even further with a 2° full beam and centre-beam luminous intensity of 580 candelas per lumen – six times greater efficiency than MAGICDOT R. With an active phase-change liquid cooling system that employs a heat pipe, this luminaire can be used continuously without significant loss of output.
Features:
- 35 W - RGBW
- Lumens 850
- Luminous Intensity 580,000
- Beam Aperture 2°
- Collimator Lens 126 mm
Specifications:
- Optics:
- Beam aperture: 2°
- 85% optic efficiency
- 126mm PMMA collimator optic
- Light source:
- 1,000 lumens RGBW High-Power LED source
- Total luminaire output: up to 850 lumens
- Luminous intensity: 580,000 cd (narrow beam)
- Rated life (L70): up to 40,000 hours
- Flicker free sources management, suitable for TV applications and all video recorded events
- Movement:
- Extremely accurate positioning
- Moving-head operated via either 8- or 16-bit resolution
- High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
- Pan and tilt automatic repositioning
- Moving-head range: infinite pan and tilt rotation
- Colors:
- Sophisticated 4 colors RGBW mixed, reaching high Color Rendering Index
- Light beam with no color shadows, and rich saturated and pastel color-hues
- 4.29 billion colors (8 bit resolution)
- Virtual color wheel, including most usuals white color temperature presets
- Dynamic color macro effect with variable speed
- Dimmer / strobe:
- Electronic dimmer, allowing perfect light adjustment from 0 to 100% without color variation
- White or color strobe effect, with speed adjustment from 1 to 25 flashes per second
- Software features:
- Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
- Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
- Information menu including hour counter, temperature, software version
- Hardware features:
- Graphic LCD display for addressing and special functions settings, with flip function
- 6 menu buttons to set the functions
- Excess temperature protection
- Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
- XLR 5 pin male and female connectors for DMX connection
- powerCON TRUE1 male and female connectors for power connection
- Control:
- DMX 512 protocol, through DMX cable or wireless system
- DMX-RDM compatible
- Stand-alone mode and Master/Slave modes
- Local control panel, with LCD display
- Choice of 2 DMX modes (from 15 to 17 DMX)
- Power supply:
- Electronic supply with active PFC
- 100 to 240 Volts – 50/60 Hz
- Power 100 W maximum
- Cooling system:
- Advanced cooling system based on heatpipe technology
- Self adjusting variable speed fans for quiet operation (Auto mode)
- Selectable auto, stage & studio ventilation modes
- Safety protection against temperatures excesses
- Housing:
- Moving-head skeleton made of aluminium and steel metal plates
- Heatsinks in aluminium and copper, satin finish
- Molded covers in self-extinguishing fire retardant ABS PC (V0 class)
- Two sides handles for transportation
- Four heavy-duty feet for better stability
- IP20 protection rating
- Exterior finish: black (Carbon)
- Installation:
- Fastening brackets system: one Omega 1/4 turn brackets designed for use with standard clamps
- Mounting points: two 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
- Safety cable attachment point
- Operating parameters:
- Operating positions: all (device on floor or fixed to a support)
- Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
- Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
- Minimum usage distance: 2.0 m (6.56 ft)
- Compliance:
- EU (EMC): EMC Directive 2014/30/EU
- EU (LVD): LVD Directive 2014/35/EU
- US Safety: UL 1573
- Size:
- Product: 235 x 360 x 235 mm (l x h x d)
- Flight-case foam: 290 x 355 x 290 mm (l x h x d)
- Weight:
- Product: 6.2 kg
