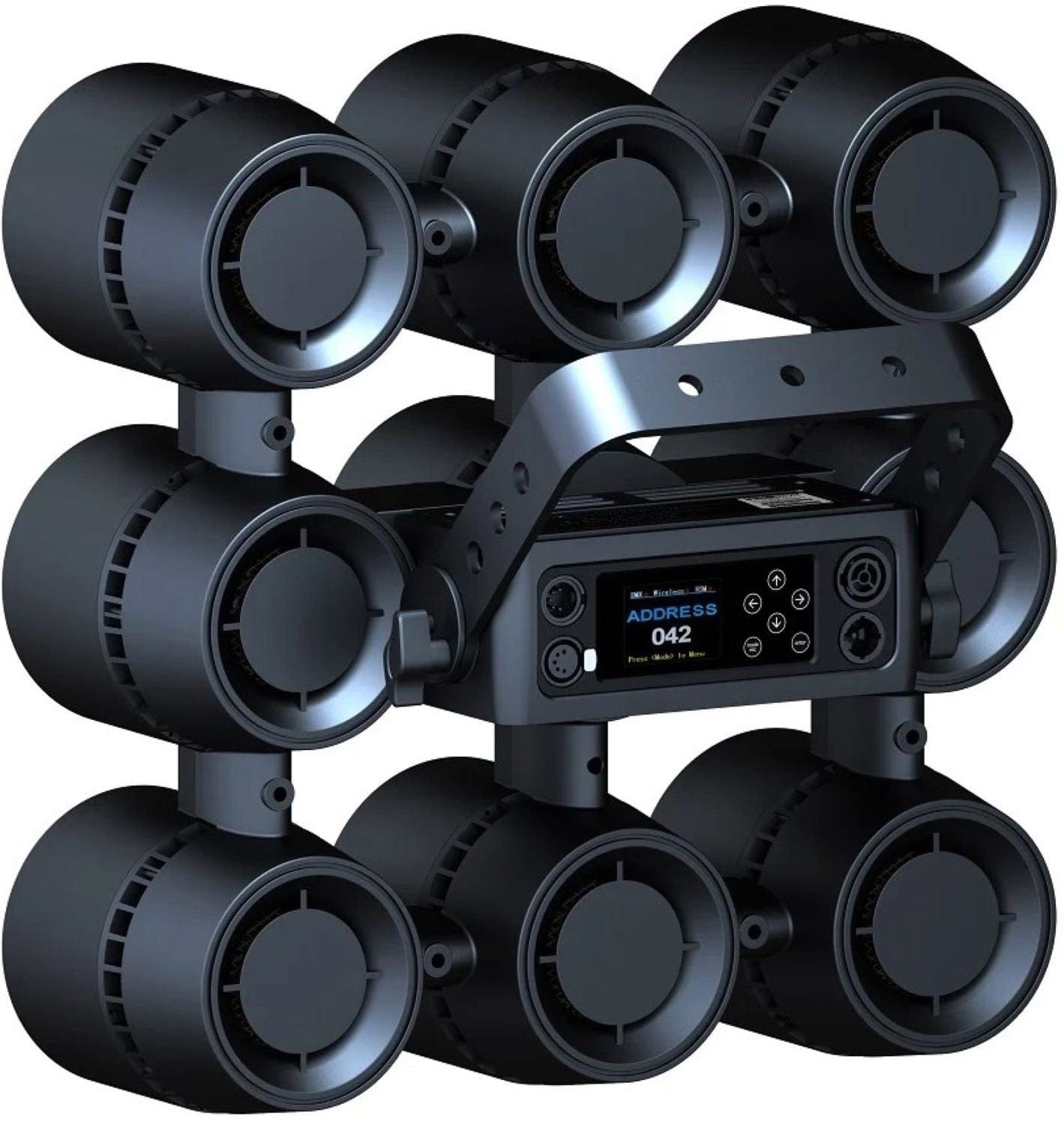

Ayrton IntelliPix-XT AY024750 270 Watt 7,650 Lumens RGBW LED Luminaire - 2 Degree
INTELLIPIX XT represents an enhanced and evolved iteration of Ayrton's original INTELLIPIX R luminaire.
Adhering to the same innovative ethos, this adaptable fixture incorporates nine exceptionally powerful, low-etendue, multichip LED emitters, offering individual control and paired with AYRTON's latest proprietary 126 mm diameter optics. This configuration elevates the performance to new heights, delivering a 2° full beam and an impressive center-beam luminous intensity of 580 candelas per lumen—six times more efficient than its predecessor. The INTELLIPIX XT is equipped with an advanced next-generation power supply unit, ensuring efficiency surpassing 95%. This groundbreaking technology empowers the compact luminaire to operate continuously at full power without any loss of performance.
Features:
- 9 x 35 W - RGBW
- Lumens 7,650
- Luminous Intensity 5,220,000 cd
- Beam Aperture 2°
- Collimator Lenses 9 x 126 mm
Specifications:
- Optics:
- Beam aperture: 2°
- 85% optic efficiency
- 9 x 126 mm PMMA collimator optic
- Light source:
- 9 x 1,000 lumens RGBW High-Power LED source
- Total luminaire output: up to 7,650 lumens
- Luminous intensity: 5,220,000 cd (narrow beam)
- Rated life (L70): up to 40,000 hours
- Flicker free sources management, suitable for TV applications and all video recorded events
- Colors:
- Sophisticated 4 colors RGBW mixed, reaching high Color Rendering Index
- Light beam with no color shadows, and rich saturated and pastel color-hues
- 4.29 billion colors (8 bit resolution)
- Virtual color wheel, including most usual white color temperature presets
- Dynamic color macro effect with variable speed
- Effects:
- 2D & 3D graphical effects capabilities
- Effects can be coupled with beam, wash or matrix applications
- Built-in pattern effects with speed and fade controls for scenic applications
- Dimmer / strobe:
- Electronic dimmer, allowing perfect light adjustment from 0 to 100% without color variation
- White or color strobe effect, with speed adjustment from 1 to 25 flashes per second
- Software features:
- Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
- Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
- Information menu including hour counter, temperature, software version
- Hardware features:
- Graphic LCD display for addressing and special functions settings, with flip function
- 6 menu buttons to set the functions
- Excess temperature protection
- XLR 5 pin male and female connectors for DMX connection
- powerCON TRUE1 male and female connectors for power connection
- Control:
- DMX 512 protocol, through DMX cable
- DMX-RDM compatible
- Stand-alone mode and Master/Slave modes
- Local control panel, with LCD display
- Choice of 3 DMX modes (from 6 to 45 DMX)
- Power supply:
- Electronic supply with active PFC
- 100 to 240 Volts – 50/60 Hz
- Power 420 W maximum
- Cooling system:
- Advanced cooling system
- Self adjusting variable speed fans for quiet operation (Auto mode)
- Selectable auto, stage & studio ventilation modes
- Safety protection against temperatures excesses
- Housing:
- Body made of aluminium and steel metal plates
- Heatsinks in aluminium, satin finish
- Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
- Single yoke in aluminium
- IP20 protection rating
- Exterior finish: black (Carbon)
- Installation:
- 8 fixing points for multiple products assembly
- 2 rotating handles to adjust yoke
- Self-alignment via optional positioning system
- Safety cable attachment point
- Operating parameters:
- Operating positions: all (device on floor or fixed to a support)
- Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
- Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
- Minimum usage distance: 5.0 m (16.40 ft)
- Compliance:
- EU (EMC): EMC Directive 2014/30/EU
- EU (LVD): LVD Directive 2014/35/EU
- US Safety: UL 1573
- Size:
- Product: 473 x 473 x 247 mm (l x h x d)
- Flight-case foam: 557 x 515 x 330 mm (l x h x d)
- Weight:
- Product: 15.5 kg
- Optics:
- Beam aperture: 2°
- 85% optic efficiency
- 9 x 126 mm PMMA collimator optic
- Light source:
- 9 x 1,000 lumens RGBW High-Power LED source
- Total luminaire output: up to 7,650 lumens
- Luminous intensity: 5,220,000 cd (narrow beam)
- Rated life (L70): up to 40,000 hours
- Flicker free sources management, suitable for TV applications and all video recorded events
- Colors:
- Sophisticated 4 colors RGBW mixed, reaching high Color Rendering Index
- Light beam with no color shadows, and rich saturated and pastel color-hues
- 4.29 billion colors (8 bit resolution)
- Virtual color wheel, including most usual white color temperature presets
- Dynamic color macro effect with variable speed
- Effects:
- 2D & 3D graphical effects capabilities
- Effects can be coupled with beam, wash or matrix applications
- Built-in pattern effects with speed and fade controls for scenic applications
- Dimmer / strobe:
- Electronic dimmer, allowing perfect light adjustment from 0 to 100% without color variation
- White or color strobe effect, with speed adjustment from 1 to 25 flashes per second
- Software features:
- Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
- Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
- Information menu including hour counter, temperature, software version
- Hardware features:
- Graphic LCD display for addressing and special functions settings, with flip function
- 6 menu buttons to set the functions
- Excess temperature protection
- XLR 5 pin male and female connectors for DMX connection
- powerCON TRUE1 male and female connectors for power connection
- Control:
- DMX 512 protocol, through DMX cable
- DMX-RDM compatible
- Stand-alone mode and Master/Slave modes
- Local control panel, with LCD display
- Choice of 3 DMX modes (from 6 to 45 DMX)
- Power supply:
- Electronic supply with active PFC
- 100 to 240 Volts – 50/60 Hz
- Power 420 W maximum
- Cooling system:
- Advanced cooling system
- Self adjusting variable speed fans for quiet operation (Auto mode)
- Selectable auto, stage & studio ventilation modes
- Safety protection against temperatures excesses
- Housing:
- Body made of aluminium and steel metal plates
- Heatsinks in aluminium, satin finish
- Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
- Single yoke in aluminium
- IP20 protection rating
- Exterior finish: black (Carbon)
- Installation:
- 8 fixing points for multiple products assembly
- 2 rotating handles to adjust yoke
- Self-alignment via optional positioning system
- Safety cable attachment point
- Operating parameters:
- Operating positions: all (device on floor or fixed to a support)
- Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
- Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
- Minimum usage distance: 5.0 m (16.40 ft)
- Compliance:
- EU (EMC): EMC Directive 2014/30/EU
- EU (LVD): LVD Directive 2014/35/EU
- US Safety: UL 1573
- Size:
- Product: 473 x 473 x 247 mm (l x h x d)
- Flight-case foam: 557 x 515 x 330 mm (l x h x d)
- Weight:
- Product: 15.5 kg
