Ayrton Domino-S AY012640 1000 Watt 51000 Lumens LED IP65 Profile Moving Head Light - 6 to 60 Degree

More Ayrton products

Write a review Q&A SKU: DOMINO-S Solotech ID#: 129333
1 of 3
Get a quote

Need help? Contact our product specialists.

View full details

Need help? Contact our product specialists.

Description

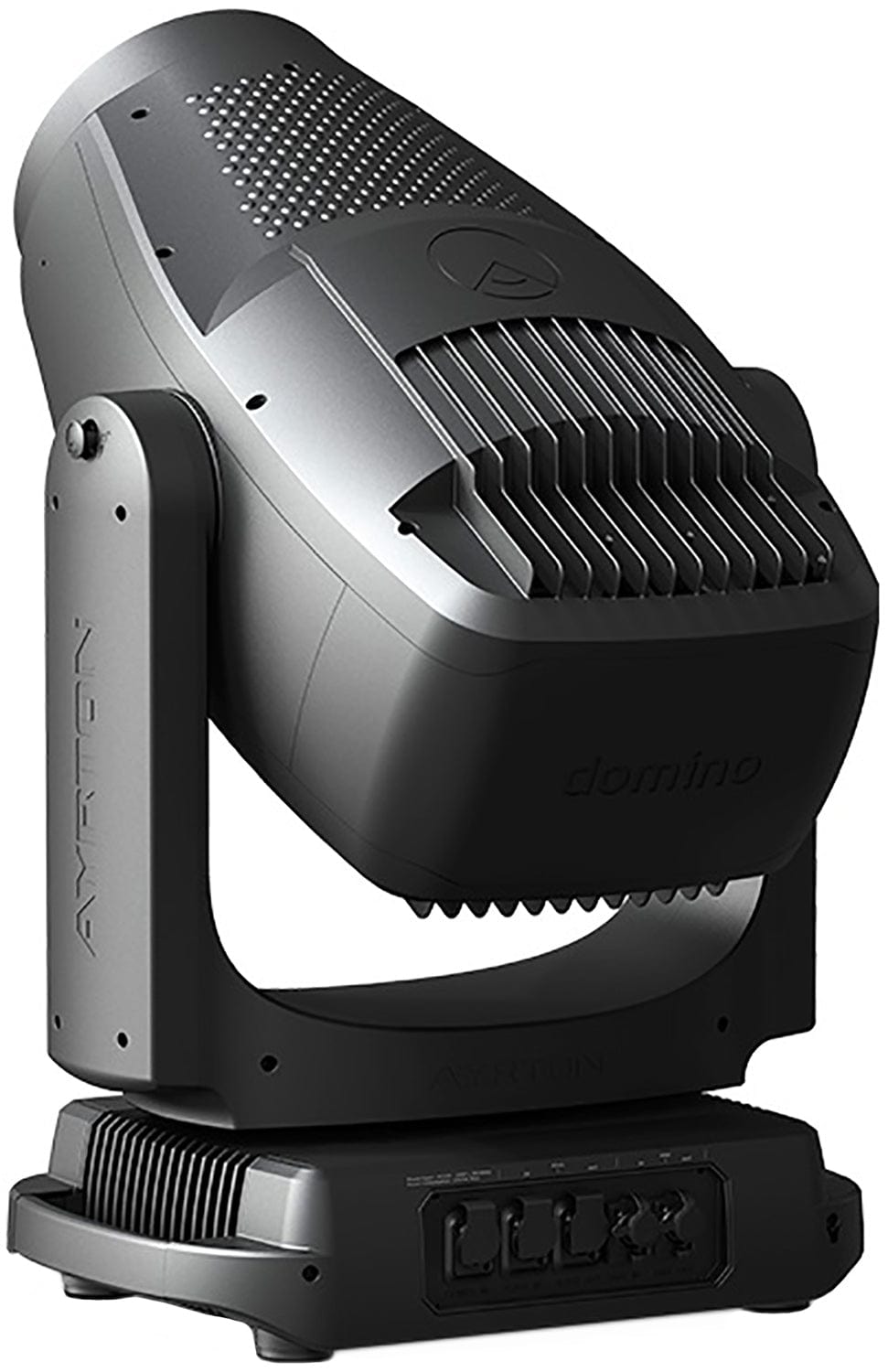

Ayrton Domino-S AY012640 1000 Watt 51000 Lumens LED IP65 Profile Moving Head Light - 6 to 60 Degree

The DOMINO PROFILE S is equipped with an entirely new 1000 W monochromatic, high-efficiency LED emitter calibrated at 8000 K. This luminaire delivers potent metallic white light, boasting an impressive output of 51,000 lumens at a color temperature of 7000 K during continuous operation. In contrast, the DOMINO PROFILE TC is tailored for scenarios demanding impeccable color rendition, boasting a C.R.I. greater than 90 and exceptionally high TM30 readings at a color temperature of 6000 Kelvin.

Designed around the exceptional optics of the HURACÁN PROFILE, this luminaire is purpose-built to achieve an optimal balance between resolution, performance, and efficiency. These optics yield a consistently even, flat beam devoid of hotspots and ensure pristine reproduction of high-definition images. With a 178 mm frontal lens and a proprietary optical system employing 13 lenses, it offers a 10:1 zoom ratio and an adjustable zoom range spanning from 6° to 60°.

Features:

  • 1,000 W - 7000 K Domino Profile S
  • Lumens 51,000 Domino Profile S
  • Beam Aperture 6° to 60°
  • Front Lens 178 mm

Specifications:

  • Optics:
    • 13-element 10:1 zoom high-resolution optic system
    • Beam aperture: 6° to 60°
    • Fast motorised linear zoom
    • Tempered anti-reflective coated lenses
    • 178 mm frontal lens for greater performance
  • Light Source:
    • 75,000 lumens 8000 K white light engine
    • Total luminaire output: up to 51,000 lumens
    • Color temperature output: 7000 K
    • CRI: greater than 70
    • Rated life (L70): up to 40,000 hours
    • Flicker-free source management suitable for TV applications and all video-recorded events
  • Movement:
    • Highly accurate positioning
    • Moving-head operated via either 8- or 16-bit resolution
    • High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
    • Pan and tilt automatic repositioning
    • Moving-head range: 540° (pan), 263° (tilt)
  • Colors:
    • Sophisticated color mix system providing CMY color mixing
    • Variable CTO color temperature correction
    • Fixed color wheel with six complementary colors
    • 2 CRI and TM30 optimizer filters
  • GOBOS:
    • Two indexable rotating gobo wheels with seven high-precision glass gobos, plus open position
    • Adjustable-speed rotating gobo in both directions
    • Gobo diameter: 30.0 mm
    • Image diameter: 25.0 mm
    • Gobo thickness: 1.1 mm
  • Framing System:
    • 4 individually positionable shutter blades on a 100% surface area in all positions
    • Rotation of the framing system module: +/- 60°
  • Iris Diaphragm:
    • Fast iris diaphragm with adjustable dynamic effects
    • Iris range: 15% to 100% open
  • Frost:
    • 2 frost filters: one light, one heavy
  • Effects:
    • Focusable black & white graphic animation effect-wheel with continuous rotation in both directions
    • Focusable colour graphic animation effect-wheel with continuous rotation in both directions
    • 2 rotating and indexable prisms: one 5-facet circular, one 4-facet linear
  • Dimmer / Strobe:
    • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
    • Strobe effect, with speed adjustment from 1 to 25 flashes per second
  • Software Features:
    • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
    • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
    • Information menu including hour counter, temperature, software version
  • Hardware Features:
    • Graphic LCD display for addressing and special functions settings, with flip function
    • 5 menu buttons to set the functions
    • Excess temperature protection
    • Integrated wireless CRMX TiMo RDM receiver from LumenRadio
  • Domino LT-IP65:
    • IP65 XLR 5-pin male and female connectors for DMX connection
    • IP65 RJ45 IN / OUT connectors for ArtNet connection
    • IP65 PowerCON TRUE1 male connector for power connection
  • Control:
    • DMX 512 protocol, through DMX cable or a wireless system
    • DMX-RDM compatible
    • Stand-alone mode and Master/Slave modes
    • ArtNet™ & sACN protocol through Ethernet cable
    • Local control panel, with IP65 LCD display
    • Choice of 3 DMX modes (from 44 to 66 DMX channels)
  • Power Supply:
    • Electronic supply with active PFC
    • 120 to 240 Volts – 50/60Hz
    • Power: 1,800 W maximum
  • Cooling System:
    • Advanced liquid cooling system
    • IP68 self-adjusting variable speed fans for quiet operation (Auto mode)
    • Selectable ventilation user modes with a new Silent Mode
    • Safety protection against temperatures excesses
  • Housing:
    • Moving-head skeleton made of die-cast aluminium
    • Base in die-cast aluminium
    • Heatsinks in aluminium and copper
    • Moulded covers in in die-cast aluminium
    • Two-side handles for transportation
    • Four heavy-duty feet for better stability
    • IP65 protection rating
    • Exterior finish: black (Carbon)
  • Installation:
    • Fastening-bracket system: two Omega 1/4 turn brackets designed for use with standard clamps
    • Mounting points: eight 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
    • Safety cable attachment point
  • Operating Parameters:
    • Operating positions: all (device on floor or fixed to a support)
    • Maximum permitted ambient temperature (Ta max): 45° C (113° F)
    • Minimum permitted ambient temperature (Ta min): -20° C (-4° F)
    • Minimum usage distance: 3.0 m (9.84 ft)
  • Compliance:
    • EU (EMC & LVD):
      • EMC Directive 2014/30/EU
      • LVD Directive 2014/35/EU
    • US (Safety & EMC):
      • UL 1573
      • FCC Part 15, Subpart B:2018
  • Size:
    • Product: 490 x 841 x 330 mm (l x h x d)
    • Flight-case foam: 715 x 665 x 555 mm (l x h x d)
  • Weight:
    • Product: 52.0 kg
