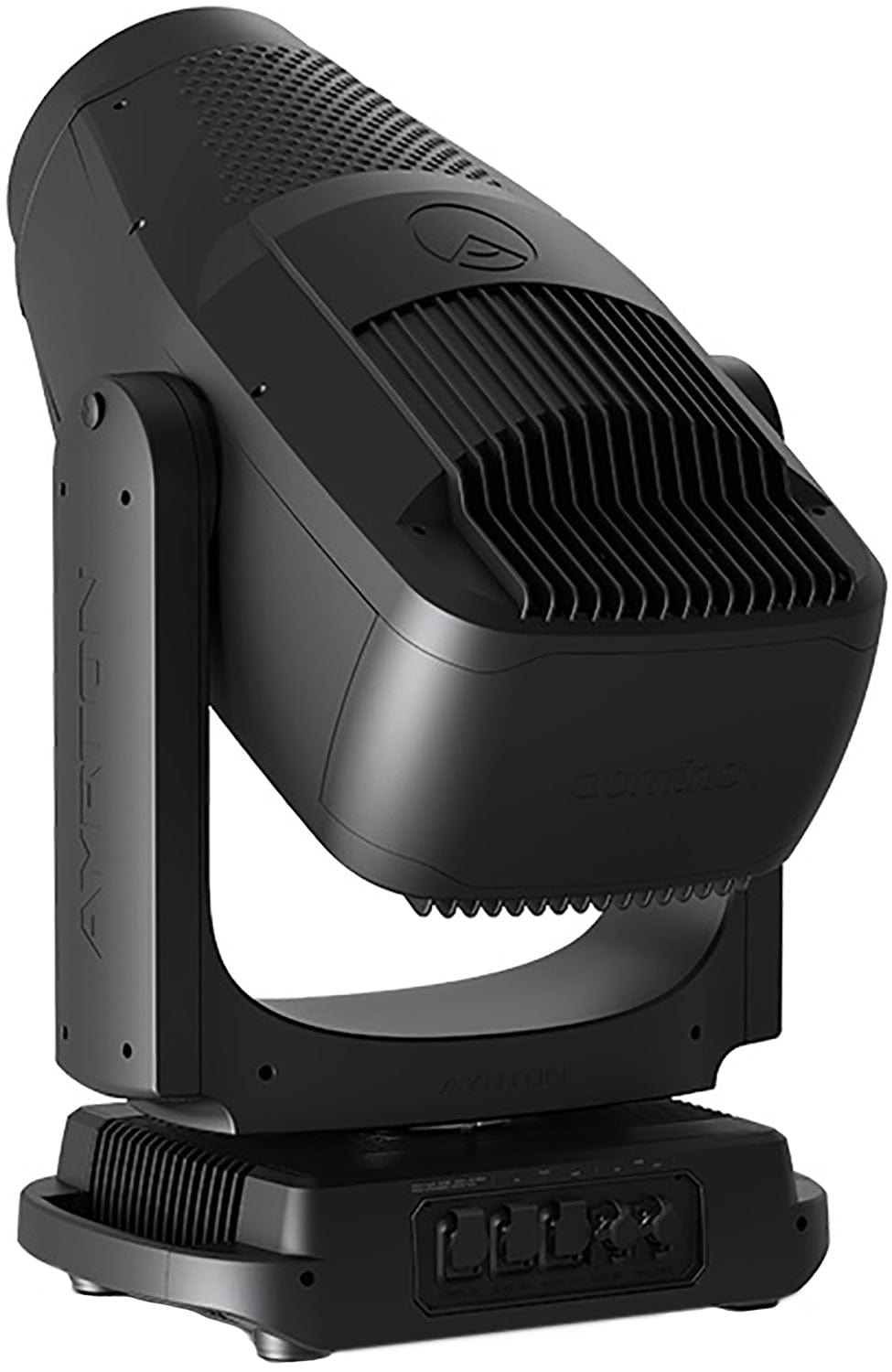

Ayrton Domino-LT AY012670 1,000 Watt 51,000 Lumens LED IP65 Profile Moving Head Light - 3.5 to 53 Degree
Domino LT stands as the trailblazing all-terrain LED luminaire in Ayrton's esteemed "LT" (Long Throw) category, purpose-built for rigorous outdoor applications demanding precise, long-distance illumination.
In its relentless pursuit of luminaire excellence, Ayrton has employed "XXL" 225 mm-diameter frontal optics, weighing 7 kg, to deliver an exceptionally intensive beam, making Domino LT unparalleled in the market. This extraordinary luminaire incorporates a proprietary optical system featuring 13 lenses, offering a remarkable 15:1 zoom ratio and an extensive zoom range spanning from 3.5° to 53°. Domino LT has been meticulously engineered to thrive in the harshest conditions, adapting seamlessly to a wide array of environments and rapid weather fluctuations. Drawing inspiration from the minimalist design of the DOMINO PROFILE, it seamlessly integrates comprehensive weather-proofing features, ensuring effortless access to the luminaire's internal functions. Featuring a new die-cast aluminum frame, Domino LT maintains a minimal visual footprint. To enhance efficiency, Domino LT incorporates a highly effective next-generation oversized cooling system, equipped with six submersible fans, all housed outside its weatherproof enclosure.
Features:
- 9 Series - Source: 1000 W - 6700 K
- Lumens: 51,000
- Native CRI: greater than 70
- Beam Aperture: 3.5° to 53°
- Frontal Lens: 225 mm
Specifications:
- Optics:
- 13-element 15:1 zoom high-resolution optic system
- Beam aperture: 3.5° to 53°
- Fast motorised linear zoom
- Tempered anti-reflective coated lenses
- 225 mm frontal lens for greater performance
- Light Source:
- 75,000 lumens 8200 K white light engine
- Total luminaire output: up to 51,000 lumens (integrating sphere measurement, Auto Fan Mode)
- Colour temperature output: 6700 K
- CRI: greater than 70
- Rated life (L70): up to 40,000 hours
- Flicker-free source management suitable for TV applications and all video-recorded events
- Movement:
- Highly accurate positioning
- Moving-head operated via either 8- or 16-bit resolution
- High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
- Pan and tilt automatic repositioning
- Moving-head range: 540° (pan), 263° (tilt)
- Colors:
- Complex colour mixing system with a double CMY saturation level capable of generating trillions of colours (patent pending).
- Variable CTB colour temperature correction
- Variable CTO colour temperature correction
- Variable CTP colour temperature correction
- Fixed colour wheel with six complementary colours
- GOBOS:
- Two indexable rotating gobo wheels with seven high-precision glass gobos, plus open position
- Adjustable-speed rotating gobo in both directions
- Gobo diameter: 30.0 mm
- Image diameter: 25.0 mm
- Gobo thickness: 1.1 mm
- Framing System:
- 4 individually positionable shutter blades on a 100% surface area in all positions
- Rotation of the framing system module: +/- 60°
- Iris Diaphragm:
- Fast iris diaphragm with adjustable dynamic effects
- Iris range: 15% to 100% open
- Frost:
- Progressive linear frost for wash effect
- Light frost for erasing the edge of the beam
- Effects:
- Graphic animation effects-wheel with continuous rotation in both directions
- CMY & RGB colour graphic animation effects-wheel with continuous rotation in both directions
- 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear
- Dimmer / Strobe:
- Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
- Strobe effect, with speed adjustment from 1 to 25 flashes per second
- Software Features:
- Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
- Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
- Information menu including hour counter, temperature, software version
- Hardware Features:
- Graphic LCD display for addressing and special functions settings, with flip function
- 5 menu buttons to set the functions
- Excess temperature protection
- Integrated wireless CRMX TiMo RDM receiver from LumenRadio
- Domino LT-IP65:
- IP65 XLR 5-pin male and female connectors for DMX connection
- IP65 RJ45 IN / OUT connectors for ArtNet connection
- IP65 PowerCON TRUE1 male connector for power connection
- Control:
- DMX 512 protocol, through IP65 DMX cable or a wireless system
- DMX-RDM compatible
- Stand-alone mode and Master/Slave modes
- ArtNet & sACN protocol through Ethernet cable
- Local control panel, with IP65 LCD display
- Choice of 3 DMX modes (from 44 to 70 DMX channels)
- Power Supply:
- Electronic supply with active PFC
- 120 to 240 Volts €“ 50/60Hz
- Power: 1,470 W maximum
- Cooling System:
- Advanced liquid cooling system
- IP68 self-adjusting variable speed fans for quiet operation (Auto mode)
- Selectable ventilation user modes with a new Super Silent Mode
- Safety protection against temperatures excesses
- Housing:
- Moving-head skeleton made of die-cast aluminium
- Base in die-cast aluminium
- Heatsinks in aluminium and copper
- Moulded covers in die-cast aluminium
- Two-side handles for transportation
- Four heavy-duty feet for better stability
- IP65 protection rating
- Exterior finish: black (Carbon)
- Installation:
- Fastening-bracket system: two Omega 1/4 turn brackets designed for use with standard clamps
- Mounting points: eight 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
- Safety cable attachment point
- Operating Parameters:
- Operating positions: all (device on floor or fixed to a support)
- Maximum permitted ambient temperature (Ta max): 45° C (113° F)
- Minimum permitted ambient temperature (Ta min): -20° C (-4° F)
- Minimum usage distance: 3.0 m (9.84 ft)
- Compliance:
- EU (EMC & LVD):
- EMC Directive 2014/30/EU
- LVD Directive 2014/35/EU
- US (Safety & EMC):
- UL 1573
- FCC Part 15, Subpart B:2018
- Size:
- Product: 490 x 884 x 330 mm (l x h x d)
- Flight-case foam: 765 x 665 x 555 mm (l x h x d)
- Weight:
- Product: 60.0 kg
- Optics:
- 13-element 15:1 zoom high-resolution optic system
- Beam aperture: 3.5° to 53°
- Fast motorised linear zoom
- Tempered anti-reflective coated lenses
- 225 mm frontal lens for greater performance
- Light Source:
- 75,000 lumens 8200 K white light engine
- Total luminaire output: up to 51,000 lumens (integrating sphere measurement, Auto Fan Mode)
- Colour temperature output: 6700 K
- CRI: greater than 70
- Rated life (L70): up to 40,000 hours
- Flicker-free source management suitable for TV applications and all video-recorded events
- Movement:
- Highly accurate positioning
- Moving-head operated via either 8- or 16-bit resolution
- High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
- Pan and tilt automatic repositioning
- Moving-head range: 540° (pan), 263° (tilt)
- Colors:
- Complex colour mixing system with a double CMY saturation level capable of generating trillions of colours (patent pending).
- Variable CTB colour temperature correction
- Variable CTO colour temperature correction
- Variable CTP colour temperature correction
- Fixed colour wheel with six complementary colours
- GOBOS:
- Two indexable rotating gobo wheels with seven high-precision glass gobos, plus open position
- Adjustable-speed rotating gobo in both directions
- Gobo diameter: 30.0 mm
- Image diameter: 25.0 mm
- Gobo thickness: 1.1 mm
- Framing System:
- 4 individually positionable shutter blades on a 100% surface area in all positions
- Rotation of the framing system module: +/- 60°
- Iris Diaphragm:
- Fast iris diaphragm with adjustable dynamic effects
- Iris range: 15% to 100% open
- Frost:
- Progressive linear frost for wash effect
- Light frost for erasing the edge of the beam
- Effects:
- Graphic animation effects-wheel with continuous rotation in both directions
- CMY & RGB colour graphic animation effects-wheel with continuous rotation in both directions
- 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear
- Dimmer / Strobe:
- Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
- Strobe effect, with speed adjustment from 1 to 25 flashes per second
- Software Features:
- Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
- Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
- Information menu including hour counter, temperature, software version
- Hardware Features:
- Graphic LCD display for addressing and special functions settings, with flip function
- 5 menu buttons to set the functions
- Excess temperature protection
- Integrated wireless CRMX TiMo RDM receiver from LumenRadio
- Domino LT-IP65:
- IP65 XLR 5-pin male and female connectors for DMX connection
- IP65 RJ45 IN / OUT connectors for ArtNet connection
- IP65 PowerCON TRUE1 male connector for power connection
- Control:
- DMX 512 protocol, through IP65 DMX cable or a wireless system
- DMX-RDM compatible
- Stand-alone mode and Master/Slave modes
- ArtNet & sACN protocol through Ethernet cable
- Local control panel, with IP65 LCD display
- Choice of 3 DMX modes (from 44 to 70 DMX channels)
- Power Supply:
- Electronic supply with active PFC
- 120 to 240 Volts €“ 50/60Hz
- Power: 1,470 W maximum
- Cooling System:
- Advanced liquid cooling system
- IP68 self-adjusting variable speed fans for quiet operation (Auto mode)
- Selectable ventilation user modes with a new Super Silent Mode
- Safety protection against temperatures excesses
- Housing:
- Moving-head skeleton made of die-cast aluminium
- Base in die-cast aluminium
- Heatsinks in aluminium and copper
- Moulded covers in die-cast aluminium
- Two-side handles for transportation
- Four heavy-duty feet for better stability
- IP65 protection rating
- Exterior finish: black (Carbon)
- Installation:
- Fastening-bracket system: two Omega 1/4 turn brackets designed for use with standard clamps
- Mounting points: eight 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
- Safety cable attachment point
- Operating Parameters:
- Operating positions: all (device on floor or fixed to a support)
- Maximum permitted ambient temperature (Ta max): 45° C (113° F)
- Minimum permitted ambient temperature (Ta min): -20° C (-4° F)
- Minimum usage distance: 3.0 m (9.84 ft)
- Compliance:
- EU (EMC & LVD):
- EMC Directive 2014/30/EU
- LVD Directive 2014/35/EU
- US (Safety & EMC):
- UL 1573
- FCC Part 15, Subpart B:2018
- EU (EMC & LVD):
- Size:
- Product: 490 x 884 x 330 mm (l x h x d)
- Flight-case foam: 765 x 665 x 555 mm (l x h x d)
- Weight:
- Product: 60.0 kg
