AVID VENUE S6L Control Surface
AVID VENUE S6L Control Surface
SKU: 9935-72560-00
Available options
Description
AVID VENUE S6L Control Surface
The AVID VENUE S6L is the control surface powering today's most demanding live performances. Combining studio-quality audio with real-world touring reliability, the S6L delivers the flexibility and power you need for any venue or application. Virtual Soundcheck lets you prepare on your own schedule without tying up the stage. Snapshots and events trigger key moments instantly, while automatic Pro Tools recording captures every performance. Innovative workflows dramatically reduce setup time, so you spend less time building and more time mixing. Highly customizable components adapt to your specific needs, whether you're touring festivals, managing installed systems, or handling corporate events. Configure the exact system you need and achieve consistent, professional mixes night after night, regardless of the venue or challenge.

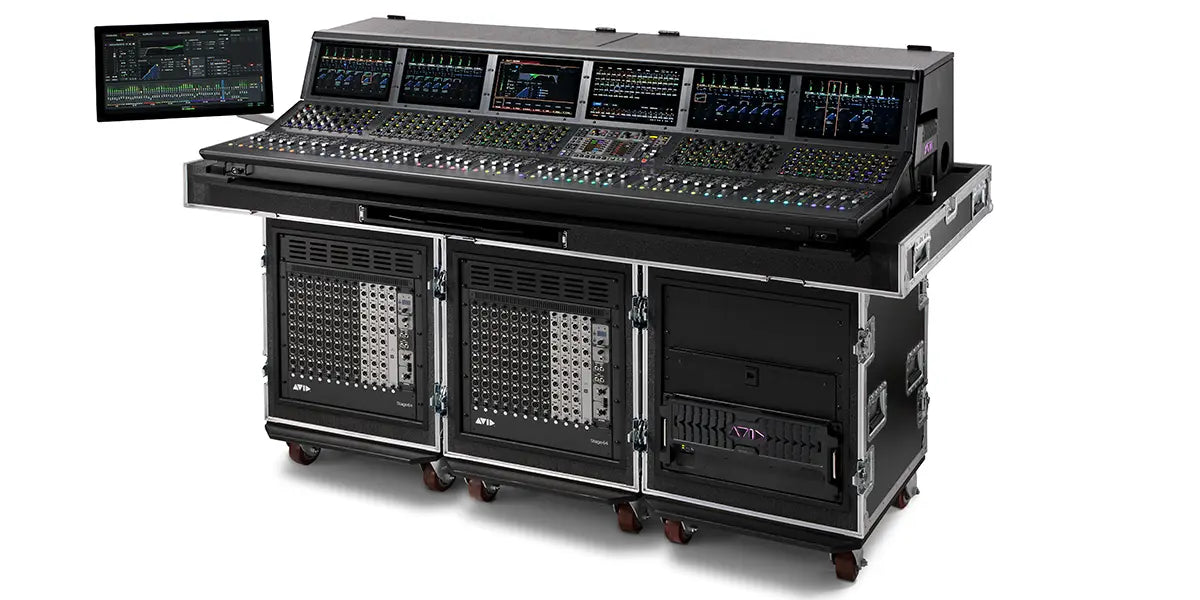

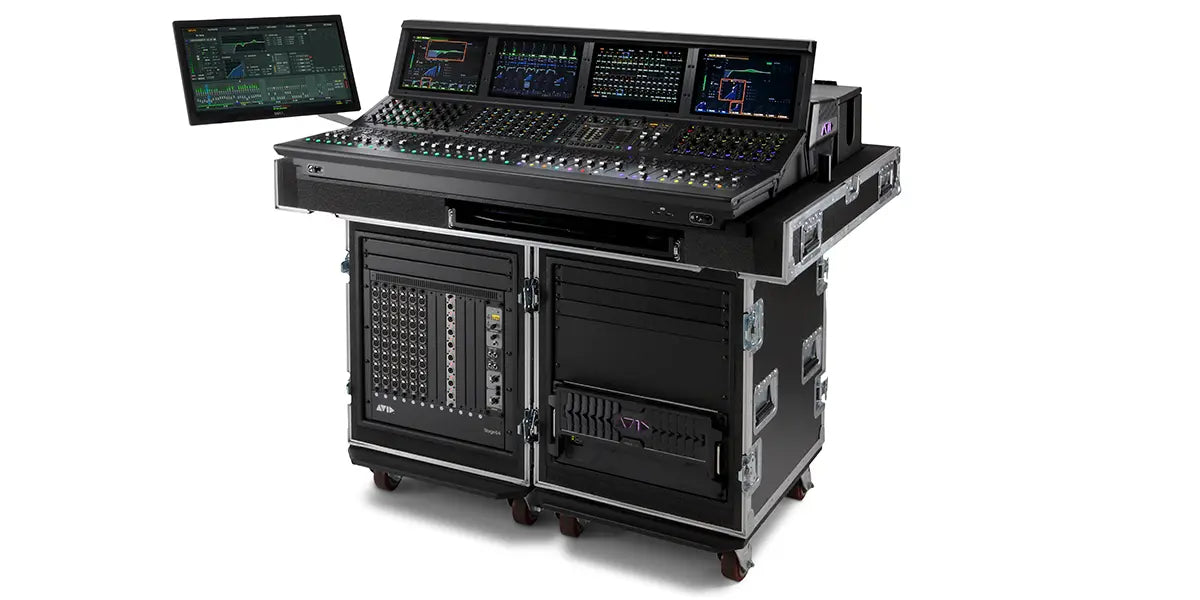

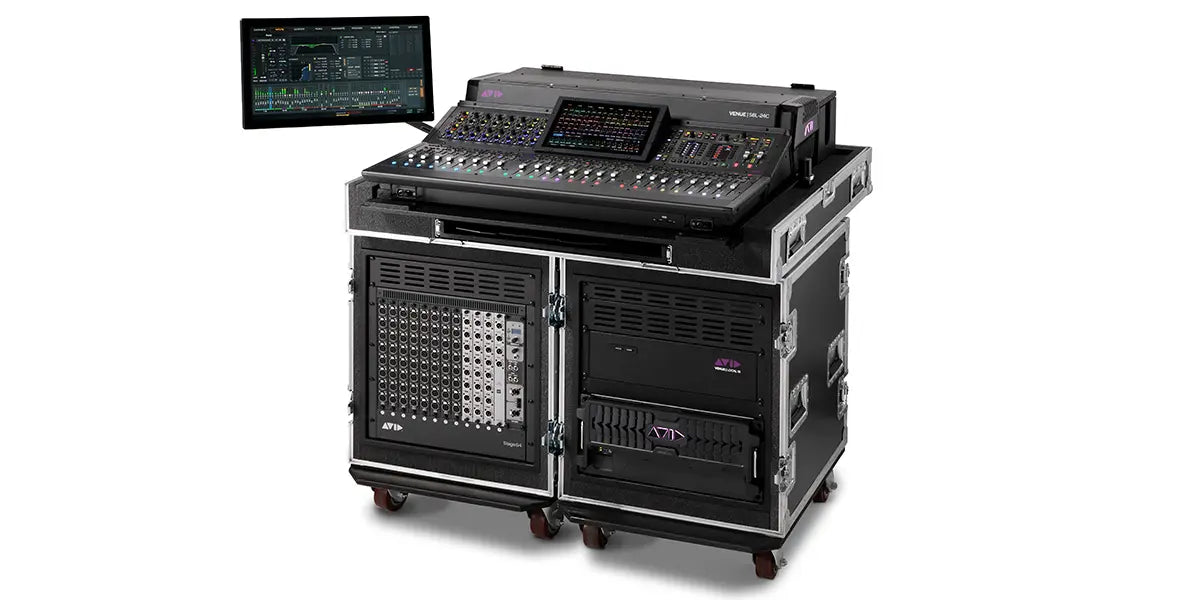

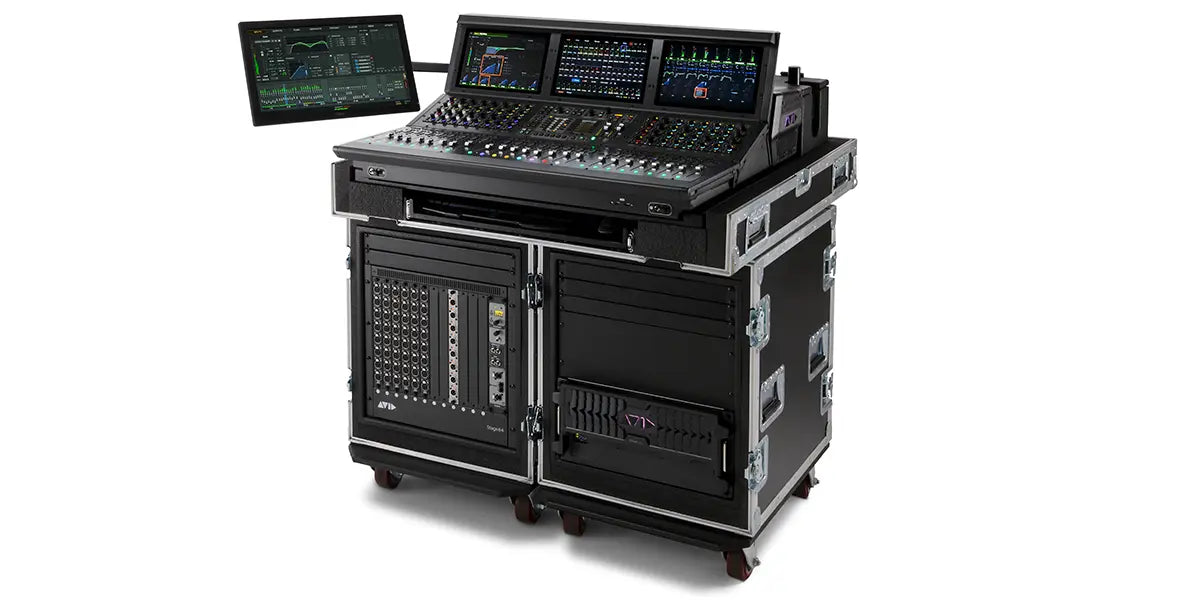

The Avid VENUE S6L Control Surface is available in 48D, 32D, 24D, 24C and 16C configurations.
Features:
- Command any show, anytime with VENUE
- Recording up to 256 channels of 96 kHz audio
- Virtual Soundcheck
- Live immersive audio support
- Run all your favourite go-to plugins natively
- Remarkable versatility
Specifications:
| Console | S6L-48D | S6L-32D | S6L-24D | S6L-24C | S6L-16C |
| 12-inch daylight-visible touchscreens | 1 Master Touchscreen, 5 Channel Touch Modules | 1 Master Touchscreen, 3 Channel Touch Modules | 1 Master Touchscreen, 2 Channel Touch Modules | 1 Master Touchscreen | None (requires user-provided external touchscreen) |
| Faders | 48 + 2 | 32 + 2 | 24 + 2 | 24 + 2 | 16 + 2 |
| Knob Modules with high-resolution OLEDs and tri-colour function indicators | 160 assignable knobs across 5 Channel Knob Modules | 96 assignable knobs across 3 Channel Knob Modules | 64 assignable knobs across 2 Channel Knob Modules | 32 assignable knobs across 1 Channel Knob Modules | 32 assignable knobs across 1 Channel Knob Module |
| Master Live Module | Graphic TFTs with soft buttons; Touch and Turn assignable encoder; 2 assignable faders; monitoring, layout and snapshot controls; transport controls and function buttons | ||||
| Metering | 30-segment meters per channel, with pre- and post-fade metering options; Nominal indicator, Expander/Gate status and Compressor/Limiter gain reduction meters | ||||
| Analog inputs | 8 XLR mic/line inputs with 48V and signal present LEDs | 1 XLR mic/line input* | |||
| Analog outputs | 8 XLR outputs with mute and signal present LEDs | 2 XLR outputs* | |||
| Digital inputs | 4 pairs of XLR stereo AES/EBU (8 channels total) | none* | |||
| Digital outputs | 4 pairs of XLR stereo AES/EBU (8 channels total) | none* | |||
| Headphone outputs | 2 independent 1/4" TRS stereo headphone jacks | 1 1/4" TRS stereo headphone jack | |||
| Ancillary I/O | DVI-D video out, 5 USB 2.0 (2 rear, 2 front, 1 internal), ECx Ethernet port for wired/wireless remote control, GPIO (8 in/8 out), 2 footswitch, Linear Time Code input, MIDI I/O | ||||
| Ethernet AVB ports | 2 etherCON (copper), 2 selectable as etherCON (copper) or SFP (fiber); redundant ring topology; supports Luminex GigaCore 26i and GigaCore 10 AVB switches for redundant star configuration | ||||
| Power supply | Dual redundant, internal hot-swappable PSUs | Dual redundant, internal** | |||
| Height (front, rear) | 3.6, 15.3 inches (91, 388 mm) | 3.6, 8 inches (91, 205 mm) | |||
| Width | 76.1 inches (1,934 mm) | 51.3 inches (1,304 mm) | 38.9 inches (989 mm) | 38.9 inches (989 mm) | 26.4 inches (671 mm) |
| Depth | 31 inches (787 mm) | 31 inches (787 mm) | 31 inches (787 mm) | 31 inches (787 mm) | 31 inches (787 mm) |
| Weight | 212 lbs (96 kg) | 155 lbs (70 kg) | 119 lbs (54 kg) | 84 lbs (38 kg) | 72 lbs (33 kg) |
