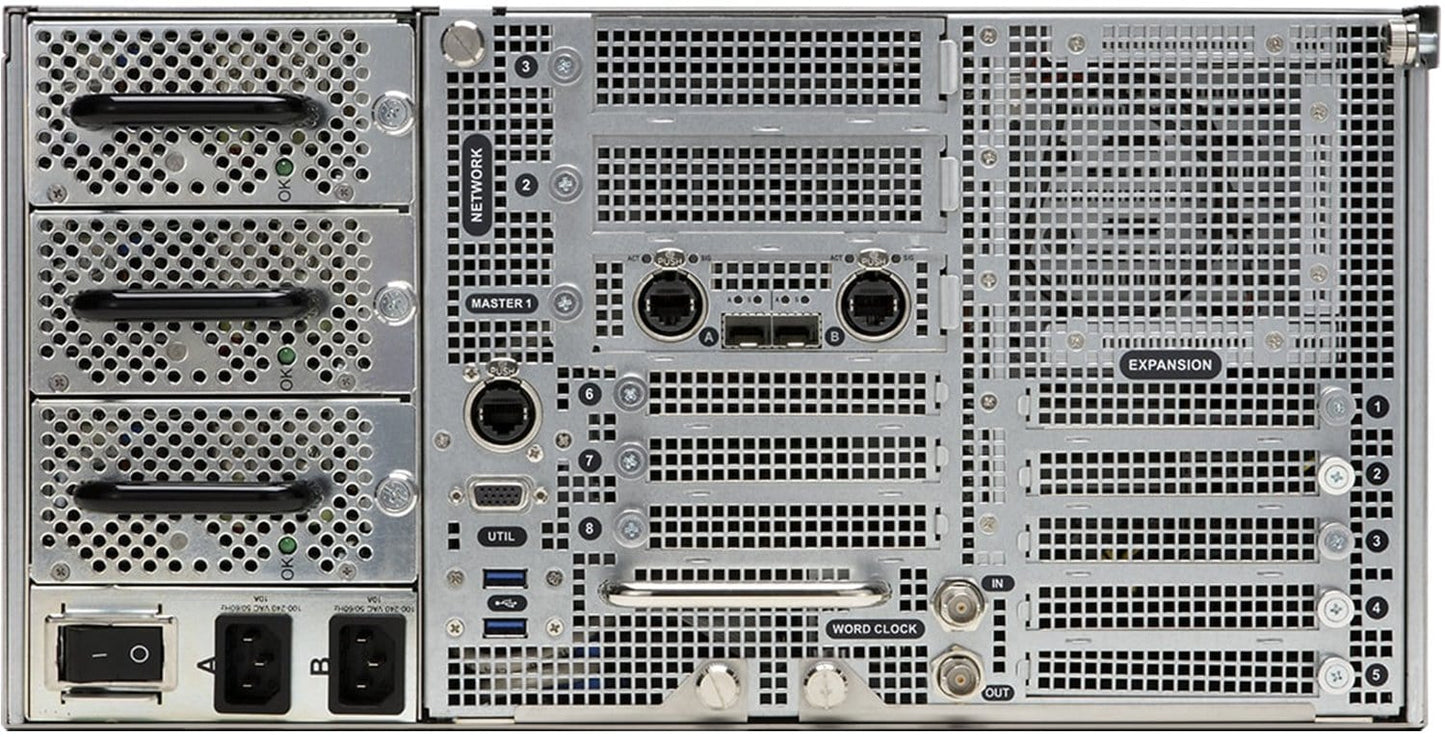

Avid E6L192 Mixing Board Engine for Board S6L32D

The Avid VENUE E6L is a state-of-the-art real-time processing engine dedicated to handling all routing, channel, and mixing functions for maximum stability and power, while the HDX-powered DSP engine manages all AAX plug-in processing, with full automatic delay compensation. That means you can create bigger, better sounding mixes, with hundreds of processing channels and mix busses, while enjoying the tightest, most robust plug-in performance and lowest possible latency—and with no round trips to external servers.

Specifications:

• Sample Rates: 48/96 kHz
• Input Channels: 192
• Input Processing:
  • True Gain compensation
  • HPF
  • LPF
  • 4-band PEQ
  • Expander/Gate
  • Compressor/Limite
  • Delay
  • 4 plug-in inserts, hardware insert
• Mix Busses: 96 + LCR
• Output Processing:
  • 7-band PEQ
  • Compressor/Limiter
  • Delay
  • 4 plug-in inserts, hardware insert
• Matrix: 24 x 24
• VCAs: 24
• Stereo Solo Busses: 2, with independent control
• Graphic EQs (31-band): 32
• Plug-inn Support: HDX-powered, 64-bit AAX DSPplug-ins via expansion slots
• Plug-in Slots: 200
• Pro Tools Integration:
  • Record/play back up to 64 audio tracks via Ethernet ABB
  • Higher track counts with Thunderbolt Option Card
  • Ethernet AVB Ports: 2 per Ethernet AVB card; selectable as etherCON (copper) or SFP (fiber), with redundant ring topology
  • Engine can be expanded with up to three Ethernet AVB cards
• Word Clock I/O: BNC, 75 Ohm coaxial
• USB Ports: 5 USB 2.0 ports (2 front; 2 back, 1 internal)
• Option Card Slots: 8 PCI Express (PCIs)
• Power Supply: N+1 redundant, internal hot-swappable PSUs
• Dimensions (H x W x D): 8.6 x 16.9 x 19 inches (216 x430 x 483 mm)
• Rack Spaces: 5U
• Weight: 61 lbs. (28kg)
