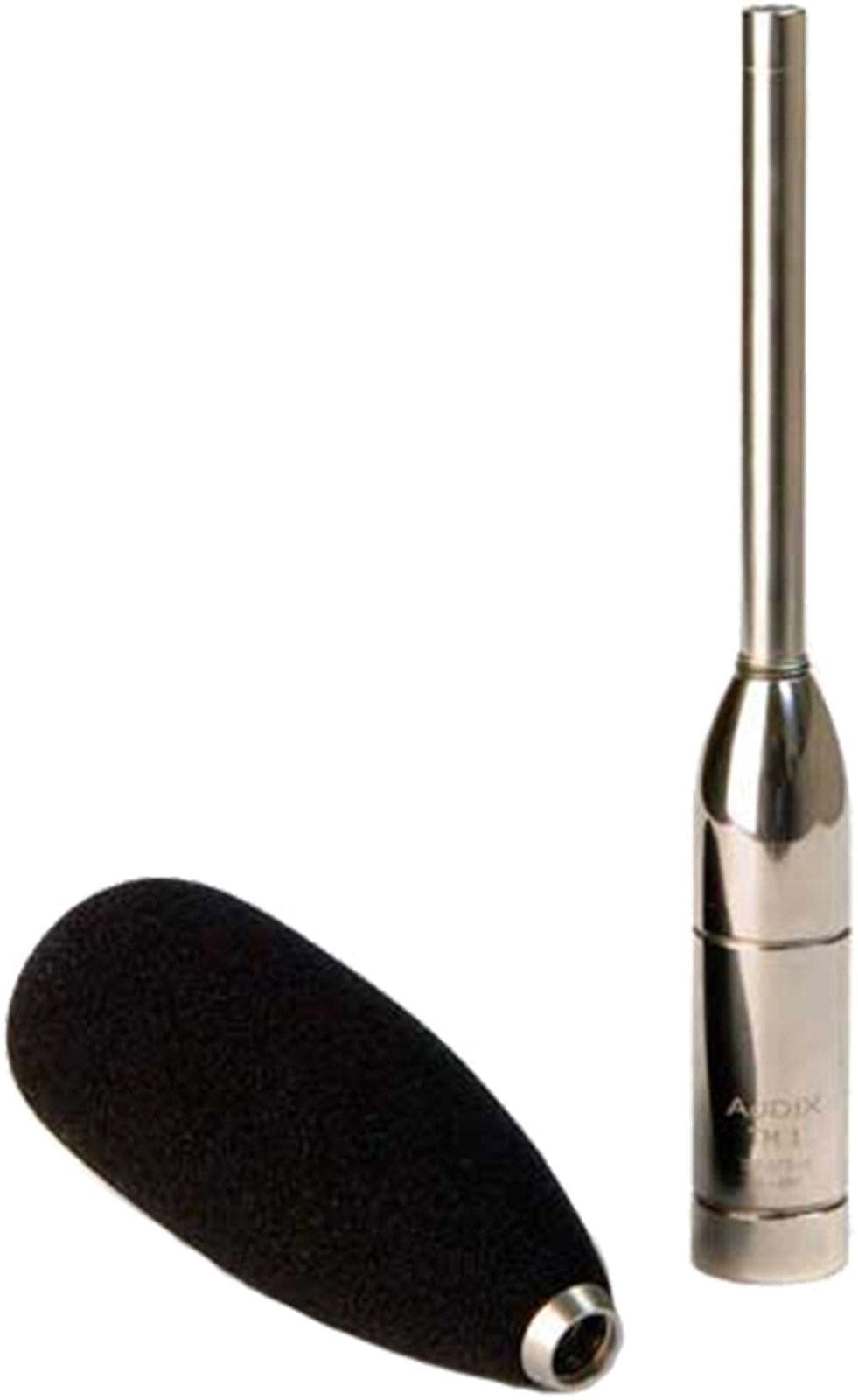

Audix TM1 Real Time Analyser Microphone

The TM1 is a 6 mm pre-polarized condenser microphone used for test and measurement applications. The TM1 is known for its linearity, accurate response, consistency, ease of use, and affordability. Equipped with a uniformly controlled omnidirectional polar pattern, the TM1 condenser microphone is designed to capture acoustic measurements for room analysis software programs, real-time analyzers, and other sound control devices. With a flat frequency range of 20 Hz – 20 kHz, the TM1 is an excellent tool for sound engineers, sound companies, and recording enthusiasts. The TM1 omnidirectional test and measurement microphone is designed, machined, assembled, and tested by Audix in the USA.

Features:

• 6mm pre-polarized condenser capsule
• Hi SPL response
• Precision machined brass housings
• Low noise electronics
• Replaceable electronics and capsule
• 3 year warranty

Specifications:

• Application: Choir, Podium, Acoustic Guitar, Strings
• Features: Studio quality condenser microphones in a miniaturized package
• Transducer Type: Condenser
• Frequency Response: 80 Hz - 20 kHz
• Polar Pattern: Cardioid, Hypercardioid
• Output Impedance: 250 Ohms
• Open Circuit Sensitivity(1 Pa = 94 dB SPL): 14 mV
• Power Requirements: 48 - 52v phantom
• Maximum SPL: >138 dB
• Off-axis rejection: >20
• Housing: Machined Brass
• Weight: .6 oz / 17grams

Applications:

• Test and measurement
• Real time analyzers
• Room analysis software programs
• Ambient room miking
