Audio-Technica ATM75C Cardioid Condenser Headworn Microphone for cH-Style Body-Pack

With a pivot-mounted flexible boom that can be positioned on either the left or right side of the head, the ATM75 headworn microphone delivers professional-quality vocal pickup with hands-free operation. Includes AT8139L large windscreen, AT8139S small windscreen, and AT8439 cable clip.

Features:

  • Professional-quality vocal pickup with hands-free operation
  • Low-visibility headband provides stable, comfortable fit
  • Pivot-mounted flexible microphone
  • Cardioid polar pattern improves isolation of desired sound source

Specifications:

  • Microphones:
    • Element: Fixed-charge back plate, permanently polarized condenser
    • Polar Pattern: Cardioid
    • Frequency Response: 100-13,000 Hz
    • Low Frequency Roll Off: 80 Hz, 18 dB/octave (wired only)
    • Open Circuit Sensitivity: PHANTOM: -51 dB (2.8 mV) re 1V at 1 Pa BATTERY: -53 dB (2.2 mV) re 1V at 1 Pa
    • Maximum Input Sound Level: PHANTOM: 132 dB SPL, 1 kHz at 1% T.H.D. BATTERY: 121 dB SPL, 1 kHz at 1% T.H.D.
    • Dynamic Range: PHANTOM: 96 dB, 1 kHz at Max SPL BATTERY: 85 dB, 1 kHz at Max SPL
    • Signal-to-Noise Ratio: 58 dB, 1 kHz at 1 Pa
    • Phantom Power Requirements: 11-52V DC, 2 mA typical
    • Battery Type: 1.5V AA/UM3 (wired only)
    • Battery Current/Life: 0.4 mA / 2000 hours typical (alkaline) (wired only)
    • Switches: Off, on-flat, on-roll-off (wired only)
    • Weight (Microphone): 2.1 oz (60 g)
    • Weight (Power Module): 4.9 oz (139 g) (wired only)
    • Cable: 4.6' (1.4 m) long (permanently attached to microphone), 0.11" (2.8 mm) diameter, 2-conductor shielded cable(termination dependent)
    • Dimensions:
      • Microphone: 20.4 mm (0.80") diameter
      • Power module (wired only): 84.0 mm (3.31") H x 63.0 mm (2.48") W x 22.0 mm (0.87") D
      • Headset: 120.0 mm (4.72") nominal at widest point, 80.5 mm (3.17") flexible boom
    • Dimensions (Power Module): 3.31" (84.0 mm) H x 2.48" (63.0 mm) W x 0.87" (22.0 mm) D
    • Dimensions (Headset): 4.72" (120.0 mm) nominal at widest point, 3.17" (80.5 mm) flexible boom
    • Dimensions (Microphone): 0.80" (20.4 mm) diameter
    • Output Connector (Power Module): Integral 3-pin XLRM-type (wired only)

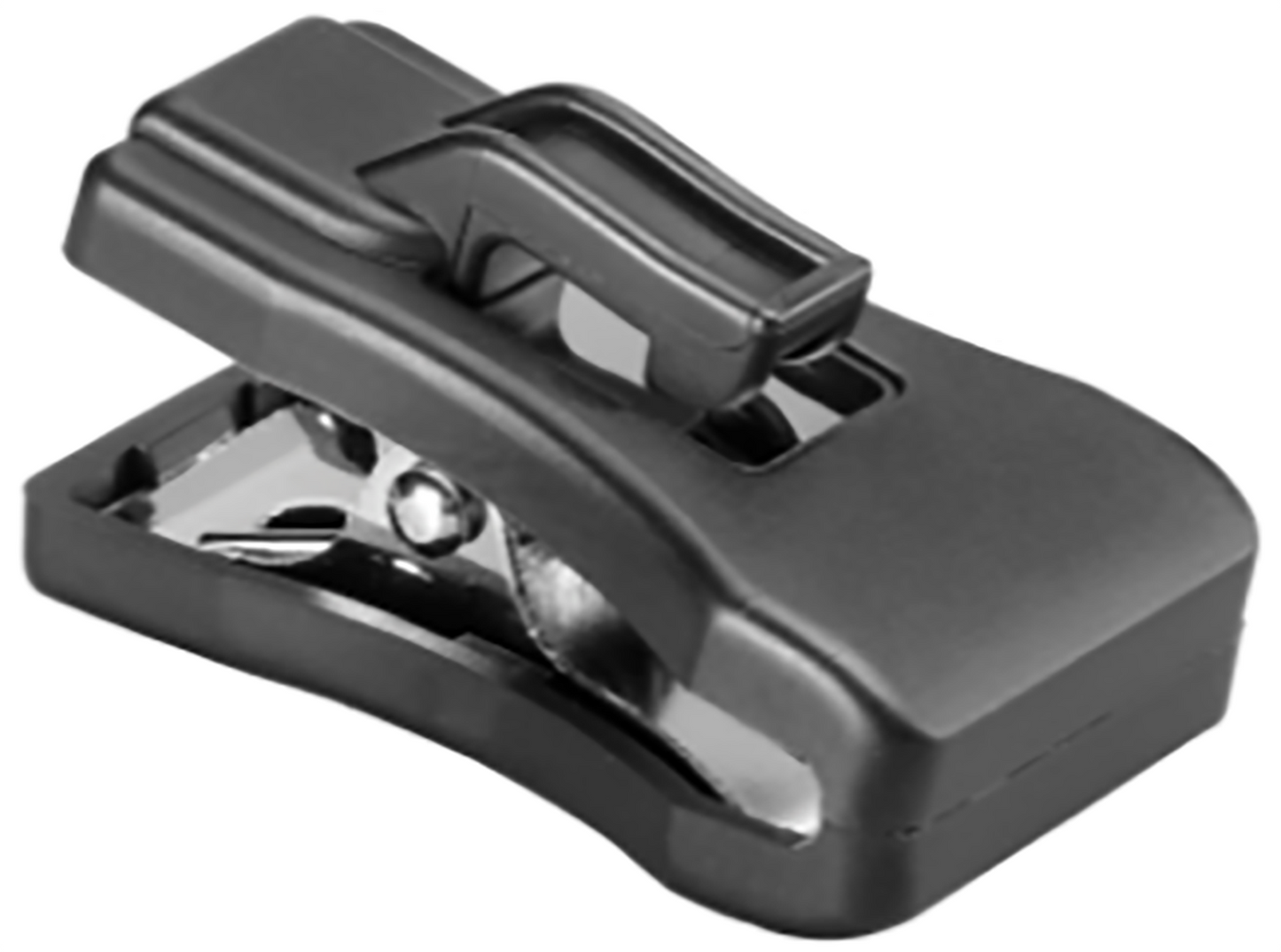

    • Accessories Included: AT8531 power module (wired only); AT8439 clothing clip; AT8139L large windscreen; AT8139S small windscreen; battery (wired only)
    • Audio-Technica Case Style: M19
