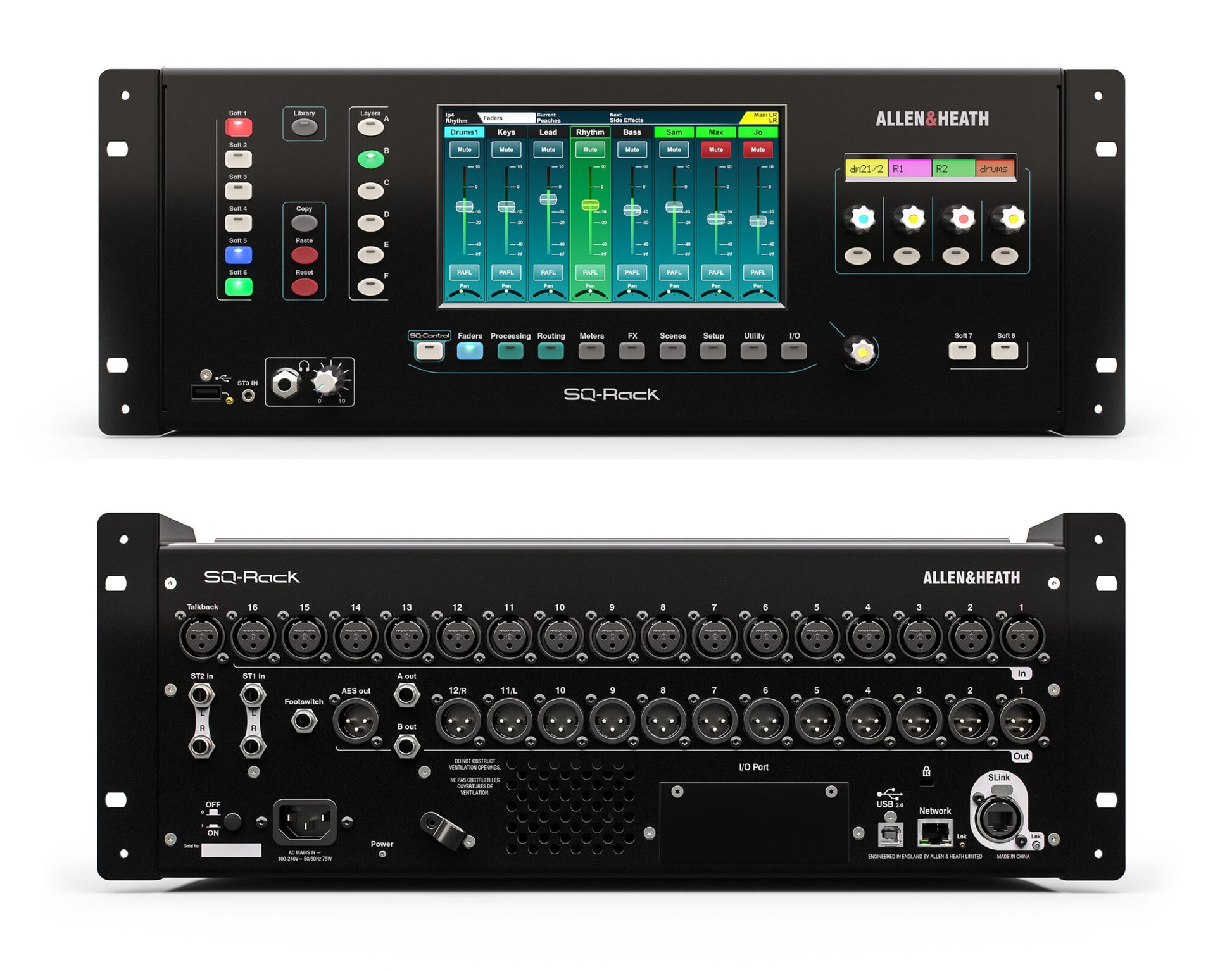

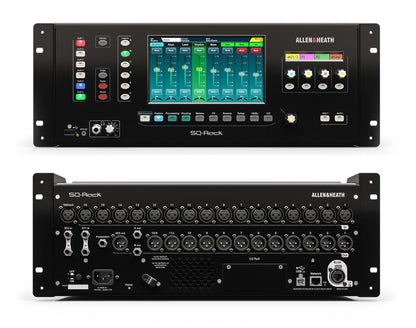

This rack supports either two 24-channel or one 48-channel automixer with zero latency, Gain and Feedback Assistants, built-in I/O, SLink expansion, optional networking cards, and a 32 × 32 USB interface.
Features:
Audio and Processing:

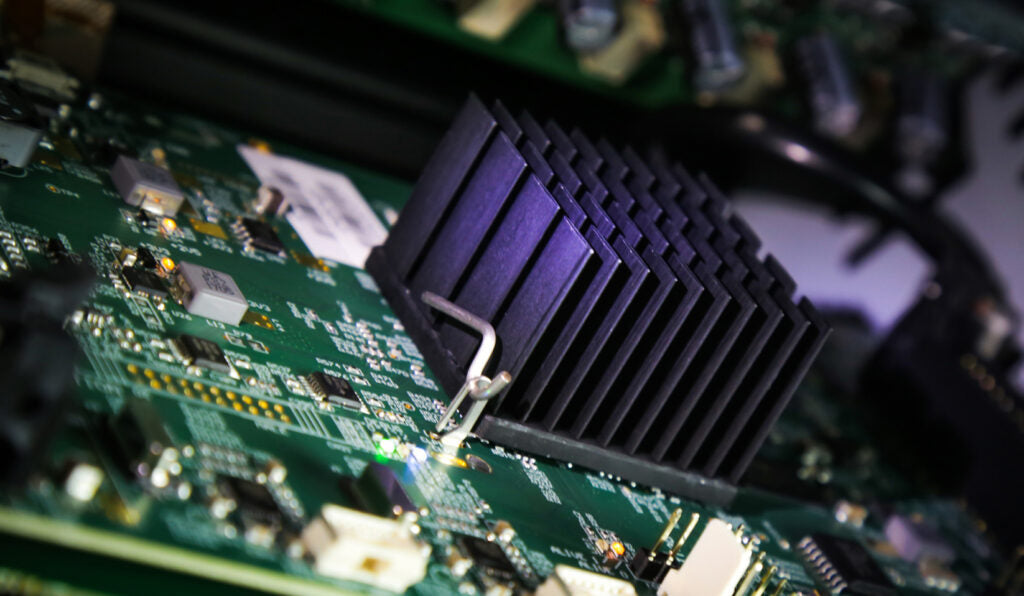

- 96kHz XCVI FPGA processing
- 48 input channels
- 12 stereo mixes + LR
- 3 stereo matrix (split to 6 mono)
- 8 stereo FX engines + dedicated stereo returns
- DEEP processing ready
Onboard I/O:
- 16+1 built-in mic preamps
- 3 stereo line inputs
- 12 XLR line outputs
- 2 TRS line outputs
- AES output
Control:
- 7” capacitive touchscreen
- 8 assignable SoftKeys
- 4 assignable soft rotaries
- SQ-MixPad app
- SQ-Control app
- SQ4You app
Expandability and Integration:

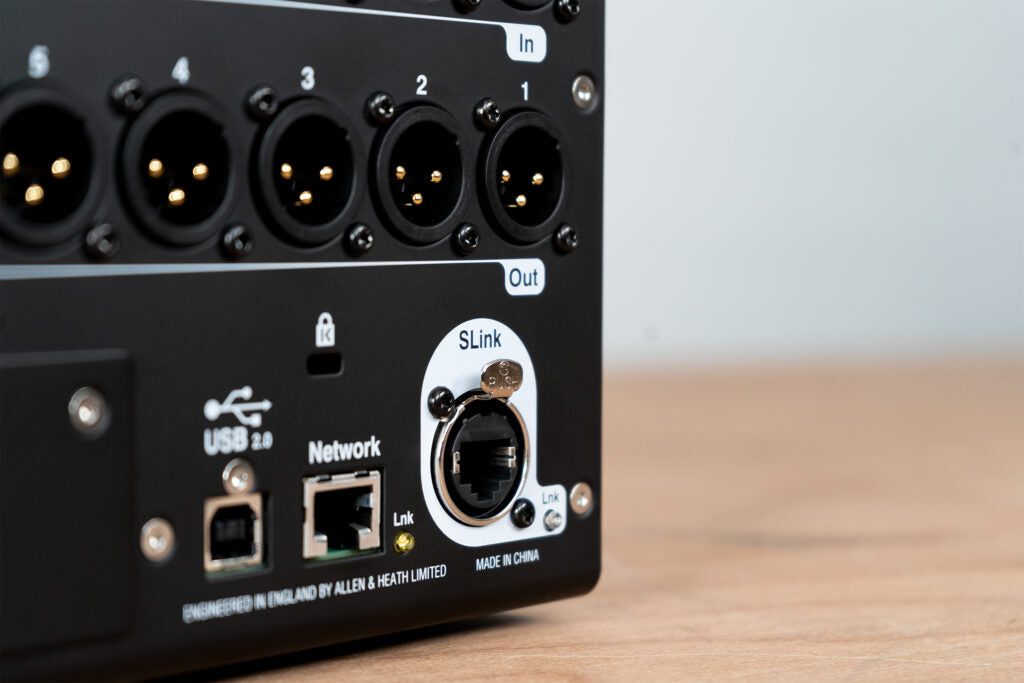

- SLink port for remote audio / expansion
- 64×64 I/O port for audio networking cards (Dante, Waves, MADI, SLink)
