Description

Allen & Heath AH-DT168 16 Input x 8 Output Dante Audio Expander with dLive Preamps - 48kiloHertz / 96kiloHertz

The DT168 is a rugged, 96kHz portable expander for adding remote I/O to a Dante equipped dLive, Avantis, SQ, or AHM system.

Features:

  • Dante audio expander (96kHz / 48kHz)
  • Portable stagebox design
  • 16 mic preamps on XLR with Phantom Power status LEDs
  • 8 XLR Line Outs

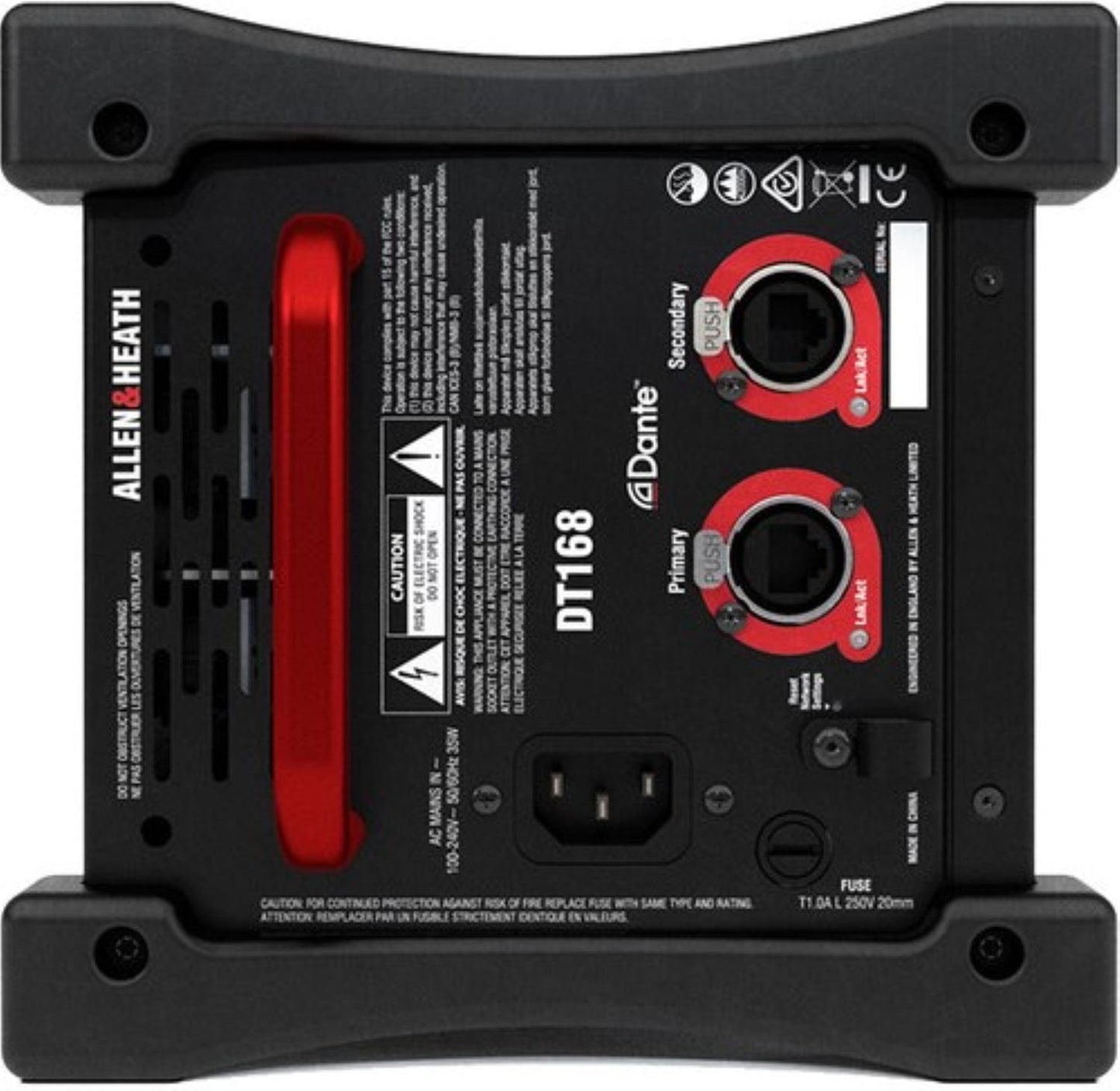

  • Primary and Secondary Dante ports with locking EtherCon
  • Redundant or Switched mode
  • Direct preamp control from dLive, Avantis, AHM-64 and SQ
  • Remote control of preamps via DT Preamp Control software for integration with 3rd party systems
  • Optional 19-inch rack mount kit available
  • Rubber bumpers and carry handle
  • AES67 compatible
  • Dante Domain Manager ready

Specifications:

  • Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
  • Mic/Line Preamp: Fully recallable
  • Input Sensitivity: -60 to +15dBu
  • Analogue Gain: +5 to +60dB, 1dB steps
  • Pad: -20dB Active PAD
  • Maximum Input Level: +30dBu (PAD in)
  • Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
  • Mic/Line Channel noise: 22-22kHz, Direct Out @ unbalanced out
  • Mic EIN: -127dB with 150Ω source
  • Mic/Line Channel THD+N: 22-22kHz, Direct Out @ unbalanced out
  • Analogue XLR Outputs: Balanced, Relay protected
  • Output Impedance: <75Ω
  • Nominal Output: +4dBu = 0dB meter reading
  • Maximum Output Level: +22dBu
  • Residual Output Noise: -92dBu (muted, 20-20kHz)
  • Dante:
    • Sample rate: 48kHz or 96kHz
    • Bit Depth: 24 Bit
    • Gain, Pad, 48v Control: Allen & Heath dLive, Avantis, AHM-64 or SQ system
  • Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
  • Mains Power: 100-240V, 50/60 Hz, 40W max
  • Dimensions and Weight (Width x Depth x Height x Weight): 410mm x 190mm x 185mm x 4.6kg (16.1” x 7.5” x 7.3” x 10.1lbs)
