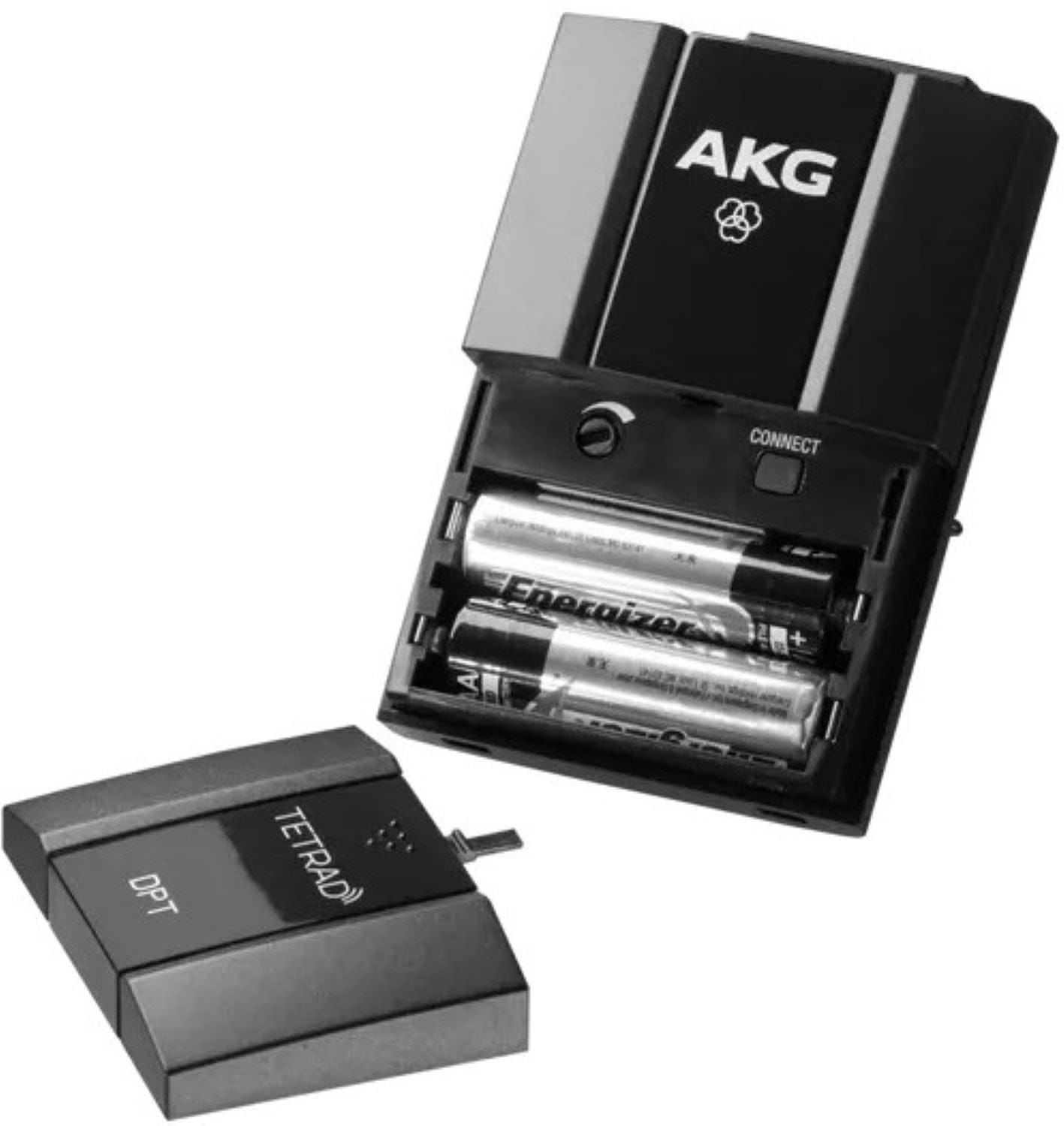

AKG DPT TETRAD NON-EU Digital Microphone Tetrad System Pocket Transmitter

The DPTTETRAD is a professional digital wireless body-pack transmitter for license free operation with 10mW in Europe and 100mW outside of Europe. With 24-bit 48kHz audio coding, it provides uncompressed studio-quality transmission and a linear frequency response, perfect for demanding instrumental performances. 128-bit AES standard encryption prevents tapping of the audio signal, which makes it a perfect companion for high-security conferences.

The DPTTETRAD provides digital diversity and an out-of-range warning function to ensure a stable and drop-free signal within the entire operating area. Its input is fully adjustable between mic and line level for noise- and distortion-free signal reproduction from loud guitars or gentle microphone signals.

Features:

• Belt clip upside/down
• Easy setup functions designed for less experienced operators
• Auto power off
• Low battery warning
• Adjustable input level (mic-guitar)
• Integrated screw driver for gain control
• 5V phantom power
• Recommended microphones: C 111 L, CK97 C/L, HC577 L and CK77 WR-L

Specifications:

• Signal to Noise: 120 dB-A
• Pocket Transmitter:
  • Gain Control: 0 (2,2 Vrms) - 30 dB (70 mVrms) max input-level: < 3Vrms (gain = min)
• Battery 1:
  • Battery type: LR6 AA alkaline battery
  • Number of Batteries: 2
  • Operating Time: 6 hours
• Battery 2:
  • Battery type: HR 6 AA (NiHM) rechargeable battery
  • Number of Batteries: 2
  • Operating Time: 7 hours
• Dimensions (LxHxW): 92 mm x 64 mm x 22 mm
• Net Weight: 70 g
