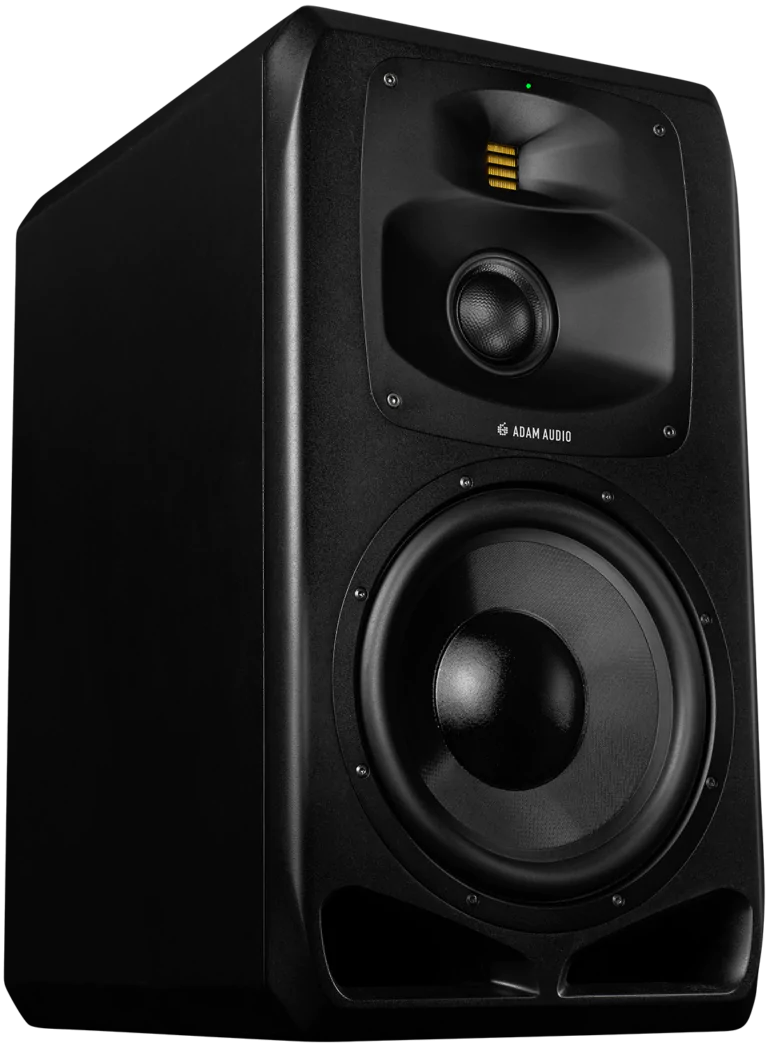

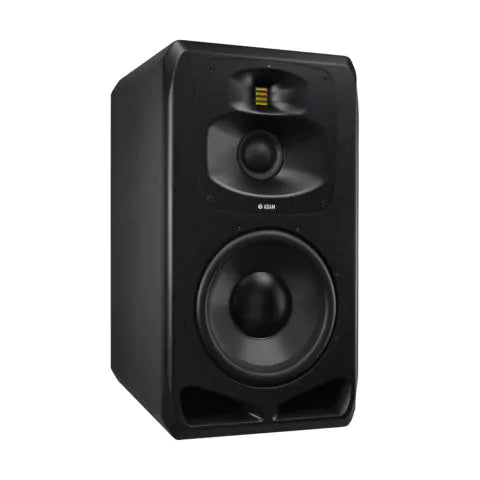

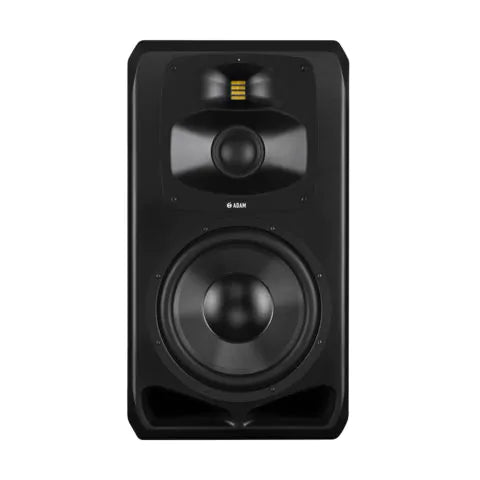

ADAM Audio S5V Midfield/Main Monitor, 3-way System, 12" Woofer

ADAM Audio S5V Midfield/Main Monitor, 3-way System, 12" Woofer

The ADAM Audio S5V is a professional 3-way reference monitor engineered for demanding control room environments.

Its 12-inch Extended Linear Excursion (ELE) bass driver with Symmetrical Magnet Assembly (SMA) technology delivers accurate, dynamic low-frequency reproduction without coloration.

The 4-inch DCH hybrid dome/cone midrange driver handles critical mid-range detail with precision, while the handcrafted S-ART folded-ribbon tweeter, made in Berlin to exacting tolerances, reveals delicate high-frequency information with breath-taking clarity. Newly developed Mid-range and High-frequency Propagation Systems (MPS and HPS) waveguides, milled from solid aluminium, maintain accurate off-axis response and wide dispersion, allowing multiple team members to work within the sweet spot simultaneously in larger rooms. Custom DSP optimization ensures linear frequency response across the entire spectrum, with user equalization and in-room tuning capabilities.

The system includes limiter-based high-frequency driver protection, AES3 digital input processing, and USB connectivity for software updates and remote DSP control. Powered by a 700W Class D amplifier for the bass driver, with 300W and 100W Class D amplifiers dedicated to the midrange and tweeter respectively, the S5V combines ADAM Audio's legendary driver precision with professional-grade amplification for reference-quality monitoring in expansive listening spaces.

Features:

• German Handmade Precision S-ART Tweeter with HPS Waveguide
• 4" Dome / Cone Hybrid (Carbon Composite) with MPS Waveguide
• 12" Woofer (Hexacone)
• Total RMS Amp. Power: 1100 W
• Frequency Response: 25 Hz - 50 kHz (-20 dB)
• Max. SPL Per Pair at 1 m: >128 dB
• AES3 Digital Inputs And Various Expansion Options

Specifications:

• Panel: Rear
• Max. Power Consumption: 650 W
• Weight: 114.5 lb (52 kg)
• Height x Width x Depth: 27.5" (698 mm) x 15.4" (390 mm) x 20.5" (520 mm)
• Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
• Delivery Contents: Power cord, manual
