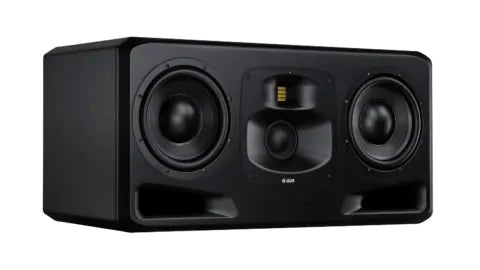

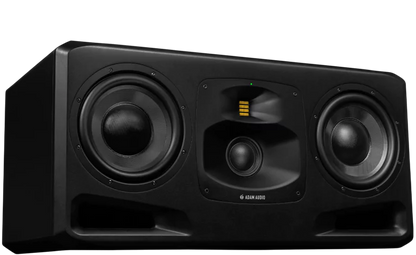

ADAM Audio S5H Monitor

ADAM Audio S5H Midfield/Main Monitor, 3-way System, 2 x 10.5" Woofer

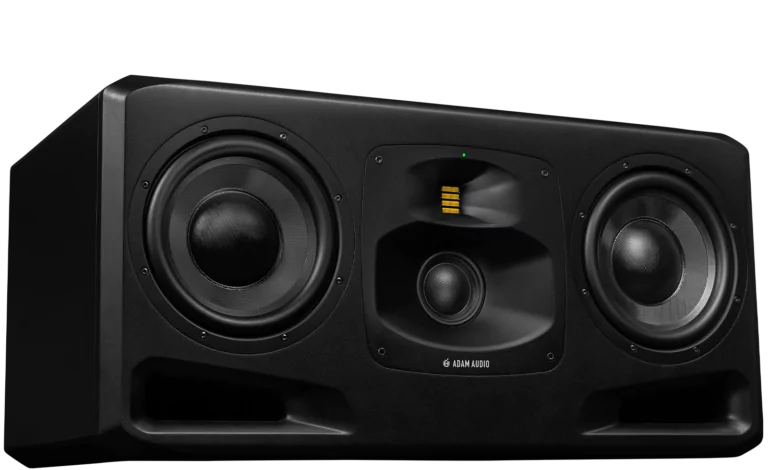

The S5H is a three-way horizontal reference monitor engineered for professional control rooms.

It features two 10-inch Extended Linear Excursion bass drivers with ADAM Audio's Symmetrical Magnet Assembly for distortion-free low frequencies, a newly developed 4-inch hybrid DCH mid-range driver combining cone and dome advantages, and the S-ART folded-ribbon tweeter for pristine highs. Aluminium waveguides (MPS and HPS systems) ensure accurate off-axis response and wide dispersion, allowing multiple operators to work in the sweet spot simultaneously. Custom DSP optimizes crossovers for linear response across the entire frequency range, with user equalization and in-room tuning capabilities. Three Class D amplifiers deliver 700W to bass, 300W to mid-range, and 100W to treble drivers.

The result is powerful, unfatiguing audio with exceptional depth and natural high-resolution reproduction, ADAM Audio's flagship reference standard for professional mixing and mastering environments.

Features:

• German Handmade Precision S-ART Tweeter with HPS Waveguide
• 4" Dome / Cone Hybrid (Carbon) with MPS Waveguide
• 2 x 10" Woofer (Hexacone)
• Total RMS Amp. Power: 1100 W
• Frequency Response: 22 Hz - 50 kHz (-20 dB)
• Max. SPL Per Pair at 1 m: >131 dB
• AES3 Digital Inputs And Various Expansion Options

Specifications:

• Panel: Rear
• Max. Power Consumption: 900 W
• Weight: 160 lb (72,6 kg)
• Height x Width x Depth: 16.9" (430 mm) x 34,8" (885 mm) x 19,7" (500 mm)
• Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
• Delivery Contents: Power cord, manual
