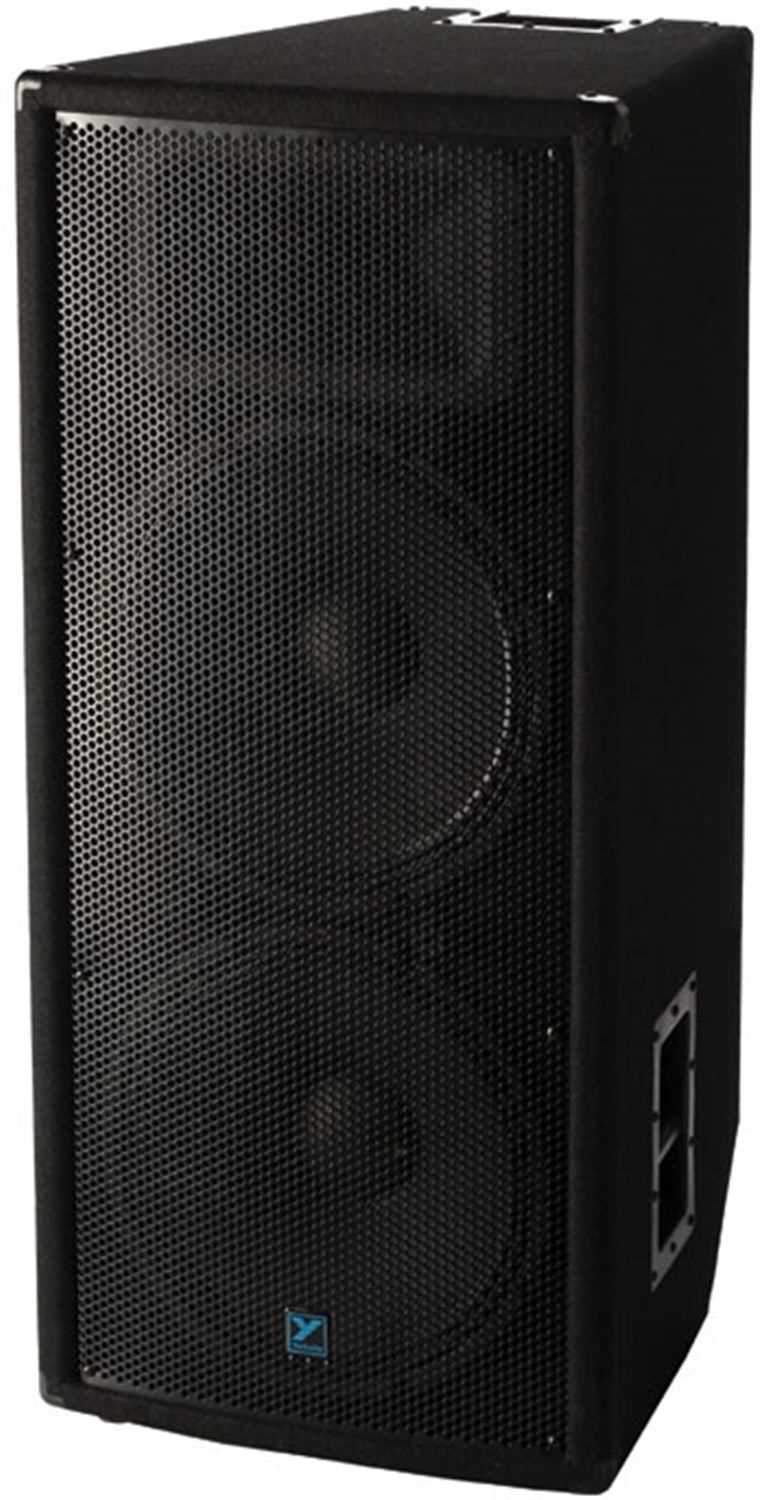

Yorkville YX215 Dual 15" 600W Passive Speaker
The largest full-range cabinet in the YX Series, the 600-watt dual 15-inch loaded YX215 is the ideal loudspeaker for larger live PA applications or mobile DJ systems. Built for use at higher volumes, the solid plywood cabinet construction and rugged internal bracing ensures the YX215 will enjoy a long rattle-free life. Integrated bar handles and wheels ensure maximum portability for this large format YX Series loudspeaker box.
All YX cabinets offer professional features, from the most compact cabinet in the line to the full 600-watt dual 15-inch loaded loudspeaker. The YX215 comes equipped with all metal bar handles, integrated stand mounts, full metal grille and metal input plate (with 1/4-inch and 4-pole Speakon™ compatible cable inputs) as well as an injection molded 90 x 40 degree horn with a 1-inch throat and 1.4-inch Celestion neodymium compression driver.
Yorkville’s tried and true dual-bulb CTL™ protection system protects the horn driver’s aluminum diaphragm ensuring unmatched reliability in high power PA applications.
Specifications:- System Type: 2-Way
- Active or Passive: Passive
- Program Power (Watts): 600
- Biampable: Yes
- Nominal Impedance (Ohms): 4
- Sensitivity (dB @1Watt/1m): 99
- Max SPL (dB): 127
- Frequency Response (Hz +/- 3db): 55 - 20k
- Crossover Frequency (Hz): 1800
- Driver Configuration: 2x15 inch / 1.4 inch
- HF Driver(s): 1.4 inch Aluminum (1 inch Throat)
- HF Horn Injection: Molded ABS
- HF Dispersion (°H x °V): 90 x 40
- HF Protection: CTL™
- LF Driver(s): 2x15 inch Ceramic
- LF Program Power(Watts): 600
- Inputs - 1/4" Jacks: 2
- Inputs - Speakon 4-pin: 2
- Corners: Metal
- Feet: Plastic Glides
- Bar Handles: 2 (Side) 1 (Back)
- Enclosure Materials: 15mm (5/8inch) Plywood
- Grille: Custom Punched Black Perforated Metal
- Covering / Finish: Black Ozite
- Dimensions (DWH xbackW, inches): 21.25 x 19.25 x 42 x 12
- Dimensions (DWH xbackW, cm): 54 x 48.9 x 106.7 x 30.5
- Weight (lbs/kg): 78 / 35.4
