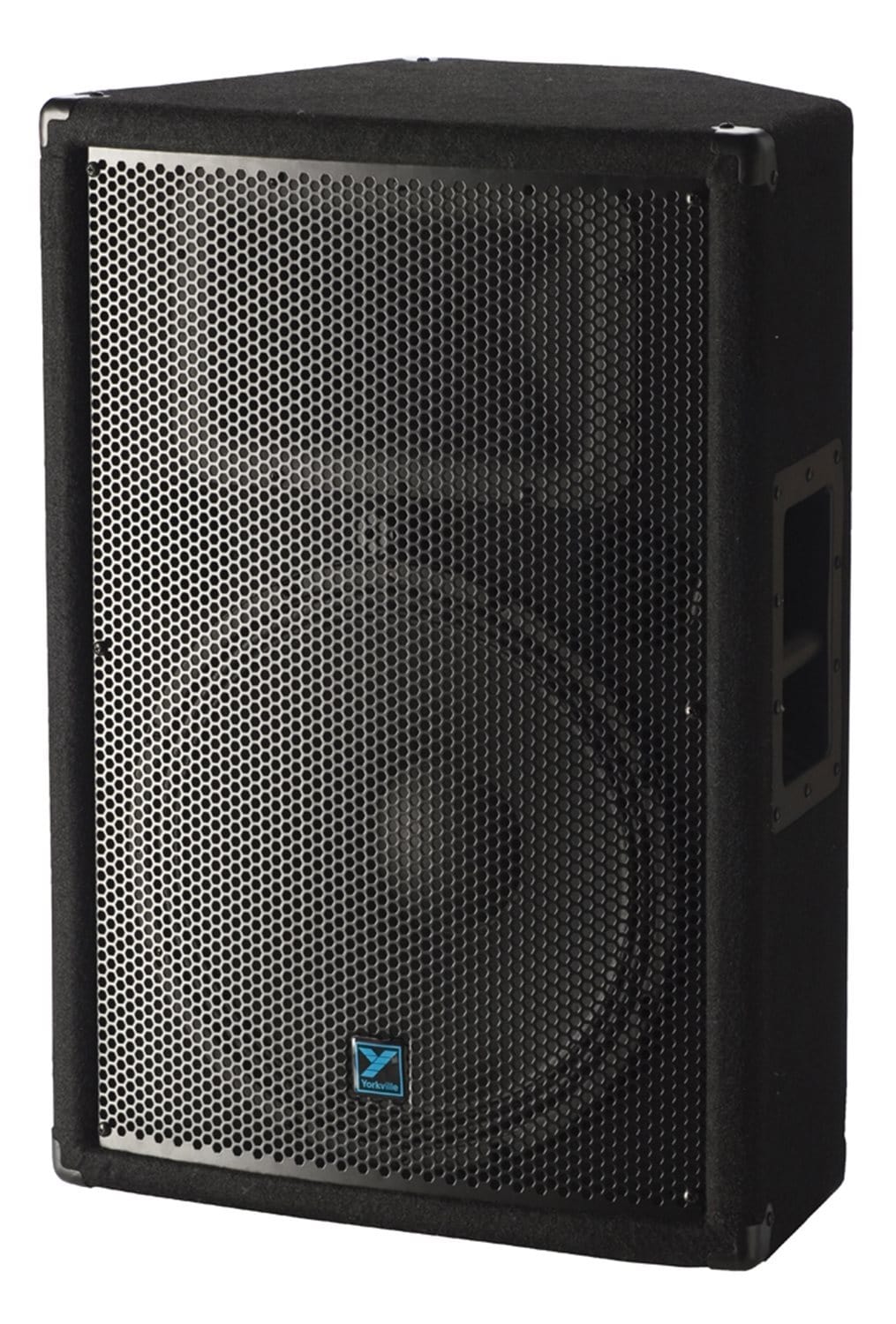

Yorkville YX15 15-Inch Passive Speaker

The YX15 delivers outstanding performance in a highly versatile full range loudspeaker built for applications where higher power is required. Engineered in North America, the YX15 benefits from Yorkville's forty plus years of PA enclosure design experience in the creation of this high-value general-purpose passive 15" and horn loudspeaker enclosure.

The YX15 cabinet uses a single 15" driver and an injection molded 90° x 40° horn with 1" throat and 1.4" neodymium compression driver. Yorkville's tried and true dual-bulb CTL protection system protects the horn driver's aluminum diaphragm ensuring unmatched reliability in the field. The YX15 is built road-ready with easy-to-clean, durable black carpet covering, solid internal plywood bracing and reinforced internal component mounts.

Designed with working musicians in mind, the YX15 offers rugged 5/8" plywood cabinet construction, all metal bar handles, metal input plate, integrated speaker mounts and a custom punched, perforated metal grille to protect the speaker components. A modified trapezoidal shape ensures the YX15 can function equally as well as a front-of-house or monitor speaker.

Designed with working musicians in mind, the YX Series offers rugged 5/8" plywood cabinet construction, all-metal bar handles, metal input plate, integrated speaker mounts and a custom punched, perforated metal grille to protect the speaker components. A modified trapezoidal shape on select cabinets ensures the YX Series can function equally as well as a front-of-house or monitor speaker.

• 300-watt full range loudspeaker
• 15" woofer
• 1" compression driver (1.4" voicecoil)
• Designed for front-of-house or monitor applications
• 90° x 40° injection molded ABS waveguide horn
• Innovative dual bulb CTL high frequency driver protection
• 2 x Speakon and 2 x 1/4" parallel inputs
• Integrated all metal speaker standmount adaptor
• 5/8" (15mm) plywood construction

• System type: 2-Way
• Passive loudspeaker
• Program power: 300-watts
• Biampable: No
• Nominal impedance: 8 Ohms
• Sensitivity: 99 dB @1Watt/1m
• Max SPL: 124 dB
• Frequency response (Hz +/- 3dB): 60 - 20k
• Crossover frequency: 1800 Hz
• Driver configuration: 15" / 1.4"
• HF driver: 1.4" aluminum (1" throat)
• HF horn: injection molded ABS
• HF dispersion (°H x °V): 90° x 40°
• HF protection: dual bulb CTL
• LF driver: 15" ceramic
• LF program power: 300-watts
• Inputs - 1/4" jacks: 2
• Inputs - Speakon 4-pin: 2
• Corners: metal
• Feet: plastic glides
• Bar handles: 2 (side)
• Pole mount adapter: 1 3/8"-3.5cm
• Enclosure materials: 5/8" / 15mm plywood
• Grille: custom punched black perforated metal
• Finish: black ozite
• Dimensions: 15.5" x 19.25" x 27.5" x 7.5" / 39.4cm x 48.9cm x 69.9cm x 19cm
• Weight: 45 lbs. / 20.4 kg.
