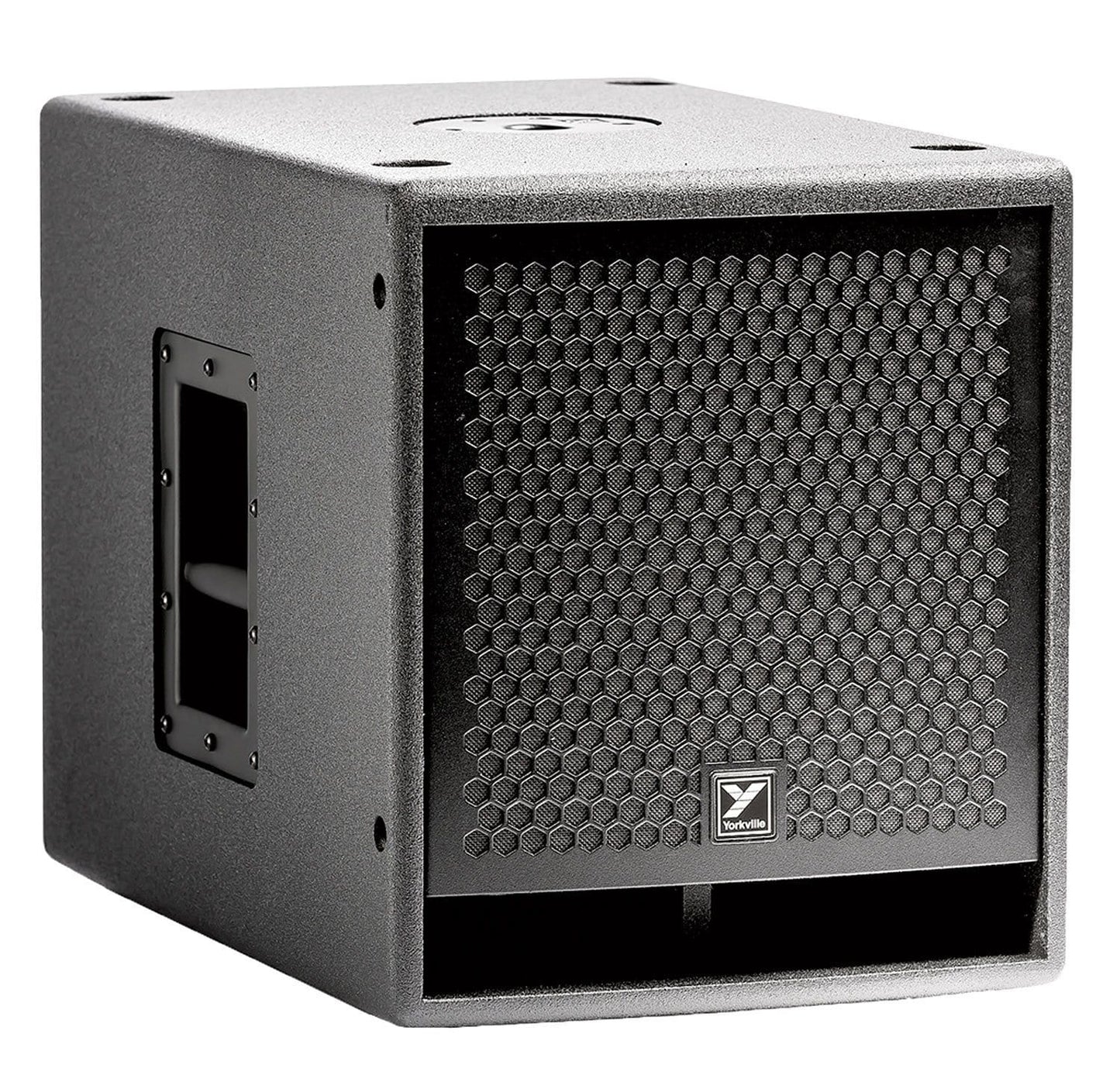

Yorkville PS15S 15-Inch Powered Subwoofer
The 1000W compact single 15-inch active PS15S bass reflex subwoofer is one of the most versatile compact active subwoofers Yorkville Sound offers. Designed to be the ideal companion to the Parasource PS12P full range loudspeaker, the PS15S actually can be easily integrated in to virtually any small or medium format PA application. Cable of direct connection to any audio source (including speaker level input) the PS15S can easily be added to virtually any mobile live sound or installation PA system quickly for added low end support. Solid 15mm birch plywood cabinet construction and an efficient Class-D power amplifier design provide unmatched long-term reliability in the field.
Features:- Compact high performance active subwoofer
- Single 15" long throw woofer w/ 3-inch voicecoil
- Max SPL 132dB peak (126dB continuous)
- Compact bass reflex design
- Handles line or speaker level (powered) input sources
- XLR and 1/4" inputs and link outputs
- Solid 15mm birch cabinet construction
- Integrated pole mount adaptor and all metal handles
- Made in canada
- Active or passive active
- Program power (watts): 1000W program (2000W peak)
- Max SPL (dB): 132dB Peak (126dB continuous)
- Frequency response (Hz +/- 3dB): 45Hz-100Hz
- Crossover frequency (Hz): fixed @ 100Hz
- Driver configuration: 1 x 15" bass reflex cabinet
- LF driver(s): 1 x 15" long throw ceramic w/ 3-inch voicecoil
- Power consumption: 3.4 amps
- Inputs: XLR balanced line level input, 1/4" line or speaker level input
- Outputs: XLR balanced link output, 1/4-inch link output
- Controls: output level, line/speaker level switch
- Enclosure materials: 15mm birch
- LED indicators: power, clip, limit
- Baffle material: 15mm birch
- Dimensions: 24" x 17.4" x 20" (D x W x H)
- Weight: 82 lbs./37.3 kg.
