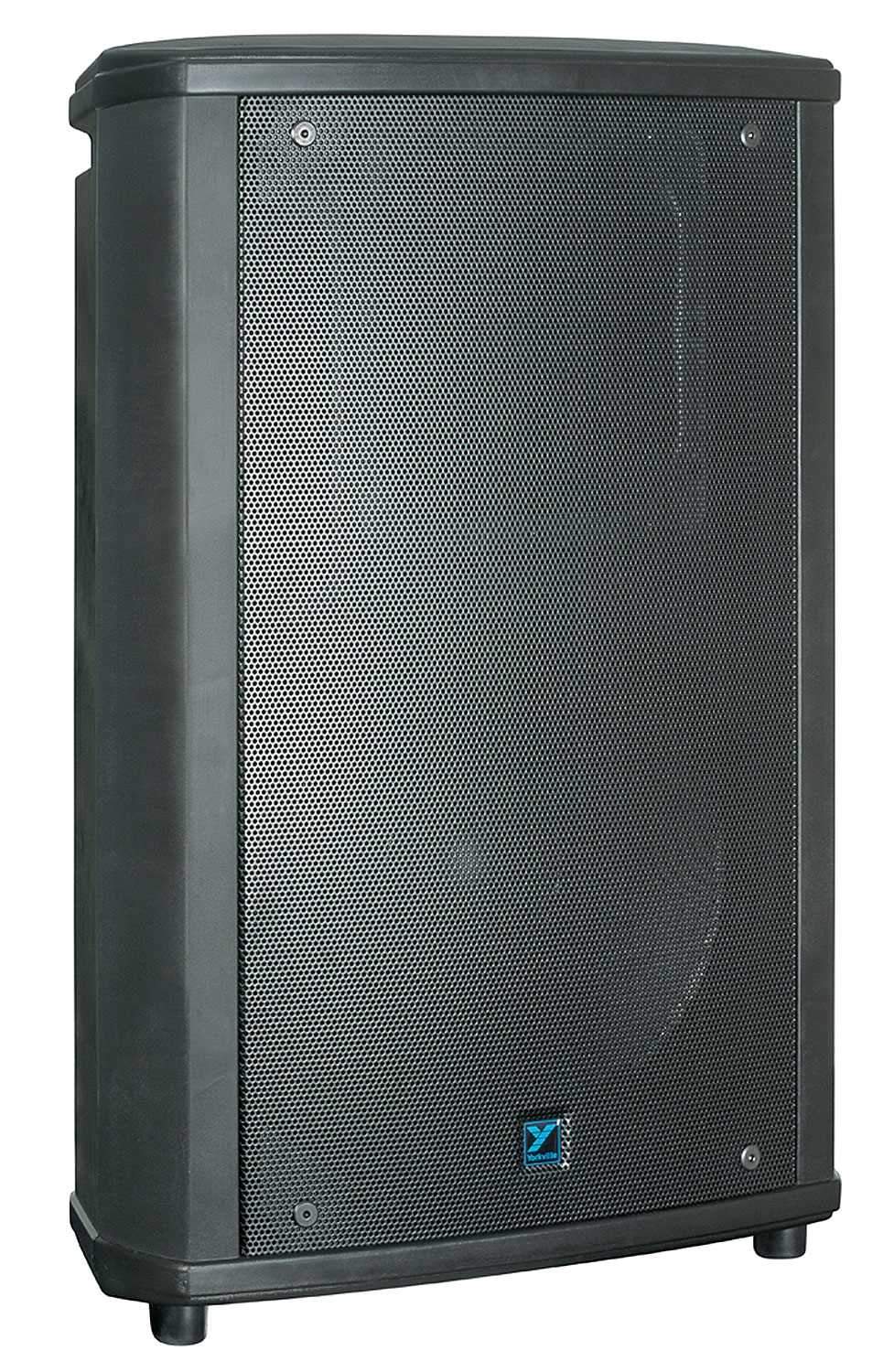

Yorkville NX300-2 15-Inch 2-Way Passive Speaker
The 300-watt NX300-2 is the most cost effective passive 15-inch and horn injection-molded loudspeaker available in the NX Series. Ideal for virtually any PA application, the unique trapezoidal shape employed on the NX300-2 allows the cabinet to be used as effectively as a monitor or front-of-house loudspeaker. The cabinet shape makes it ideal for mounting in tight arrays, or in multiple cabinet clusters. The rotatable 80° x 50° custom ABS waveguide horn used in the NX300-2 allows this loudspeaker to be flown either horizontally or vertically, or close to walls and ceilings making an ideal fill cabinet for installations. Integrated flypoints in the NX300-2 ensure this injection-molded loudspeaker can be easily adapted for installation without modification to the cabinet. Rugged bar handles and integrated standmount adaptor ensure maximum mobility and easy set-up in any live PA application.
Features:- 600 watt full range loudspeaker (300 watts program)
- Max SPL 125dB peak (122dB continuous)
- Ultra-light injection molded polypropylene construction
- Dual purpose full range and wedge monitor format enclosure
- Ultra-clear reproduction throughout bandwidth
- Ultra-high efficiency performance requires less power for more output
- High quality 1.5-inch (1-inch throat) high frequency driver
- Rotatable 80° x 50° horn
- Integrated flypoints for flyware
- Tough, full length metal grille
- Recessed input panels
- Dual bulb CTL high frequency protection
- Made in Canada
- System type: 2-way
- Active or passive: passive
- Program power (watts): 300 watts (600 watts peak)
- Biampable: no
- Nominal impedance (Ohms): 8
- Sensitivity (dB @1Watt/1m): 97
- Max SPL (dB): 125dB peak (122dB continuous)
- Frequency response (Hz +/- 3dB): 60 - 18k
- Crossover frequency (Hz): 1500
- Driver configuration: 15-inch / 1.5-inch
- HF driver(s): 1 inch throat, neo magnet, 1.5 inch aluminum diaphragm
- HF program power (watts): 25
- HF impedance (Ohms): 8
- HF dispersion (H° x V°): 80 x 50 rotatable
- HF protection: dual bulb CTL
- LF driver(s): 15-inch ceramic magnet, 2-inch voicecoil
- LF impedance (Ohms): 8
- Inputs - 1/4" jacks: 2
- Inputs - speakon 4-pin: 2
- Feet: yes
- Bar handles: 1 (side)
- Flying hardware: 1/4-20 x 5 - 2 (top), 2 (bottom), 1 (pullback)
- Optional flying hardware: NX flyware / eyebolts
- Pole mount adapter: (1) 3/8"
- Enclosure materials: injection molded polypropylene
