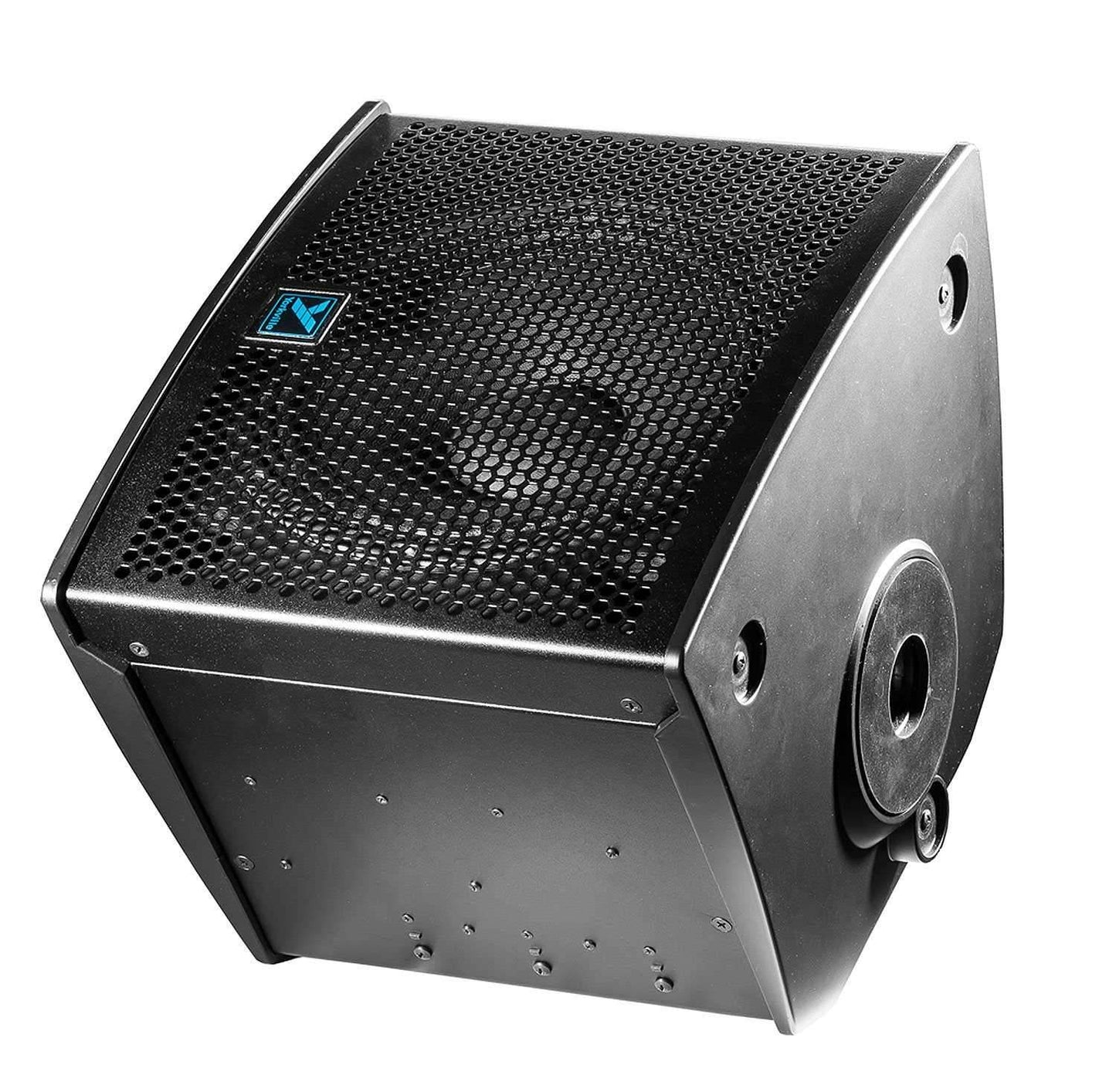

Yorkville NX10C 10-Inch Powered Coaxial Speaker

With it's 12" profile and innovative "through hole" pole mount design, the NX10C is the most versatile and compact professional PA cabinet ever. The innovative speaker stands "through-hole" design allows multiple NX10C cabinets to be mounted on a single standard speaker stand in a vertical array for very high volume applications. When wider horizontal coverage is required the NX10C cabinets can be rotated about the axis of the pole while still maintaining full phase coherency. Coverage for up to 360 degrees can be achieved. No need to bring separate stands for stage lighting and speakers when NX10C's can be mounted under the light bars, saving valuable stage space. For side-wash monitor applications on tight stages, the NX10C can be mounted under the front of house cabinets to provide a monitor signal that will be fully phase coherent with the front of house signal. The innovative custom rear mounted handle also functions as a tilt stand allowing the NX10C to be used as a compact wide coverage floor monitor or center fill cabinet. Versatile inputs for mic or line level sources as well as an 1/8" TRS jack allow the NX10C to direct connect to any audio source.

• Non-resonant polypropylene construction materials
• Innovative light weight biamplified power modules
• Reinforced cabinet design ensures a proper up-angle and stable footing
• Integrated bar handles and stand mount adaptors
• Integrated 1/4-20 flypoints and optional flyware assemblies

• Active or passive: active
• Program power (watts): 300W (600W peak)
• Biampable: self powered
• Max SPL (dB): 125dB peak (122dB continuous)
• Frequency response (Hz +/- 3dB): 80Hz - 20kHz
• Crossover frequency (Hz): 2500Hz
• Driver configuration: coaxial 10"/1"
• HF driver(s): 1" throat, ceramic magnet, 1.4" PETP film
• HF dispersion (°H x °V): 60 x 60
• LF driver(s): 10" ceramic magnet with a 2.5" voice coil
• HF amplifier type: class A/B
• LF amplifier type: two tier class- H
• Power cable: yes
• Power switch: yes
• Power consumption (typ/max): 100-240V, 12-5A, 1200W
• Inputs: 3 (combi-jack mic input / combi-jack line input / 1/8" TRS line input) 1/4" inputs are parallel
• Input sensitivity (Vrms Sine): 1.23 Vrms, +4dBu
• Mixer controls: contour (playback/vocal mode)
• Level controls: line/mic
• Limiter: yes
• LED indicators: power, clip
• Feet: yes
• Pole mount adapter (1 3/8"-3.5cm): pole through
