Yorkville LS800p 18-inch powered subwoofer 1500w
First choice in active subwoofers, the LS800P combines a cast-frame, neodymium-based 18-inch bass driver with a rear-loaded bass horn enclosure made from 15mm birch ply covered in rugged black carpeting (black ultrathane-painted version – LS800PB – is also available). Now add 1,500 continuous Watts of onboard power featuring full-time "invisible" limiting. Result - a rugged, high-powered "earth mover". Balanced XLR inputs are included along with 1/4-inch TRS inputs which, at the push of a button, can handle either line-level or speaker-level signals (you can simply connect it to any full-range speaker for quick and easy setups).. Connections also include both XLRM and 1/4" Output Link jacks for interconnecting up to 10 LS800Ps in larger concert systems. An additional XLR 'Mono Blend Input' allows the LS800P to function in a stereo system by blending the balanced L & R signals from a stereo mixer and creating a single in-phase mono signal.
The control panel features a +/- 12dB Level pot for matching the LS800P’s output with the rest of the system, a tunable 90 to 150Hz HF Roll off pot to let you match the LS800P to any full-range enclosure without an electronic crossover, a unique Shape control that modifies the bass response, a Line/Speaker Input Level button and LEDs to indicate Power, Limit and Clip.

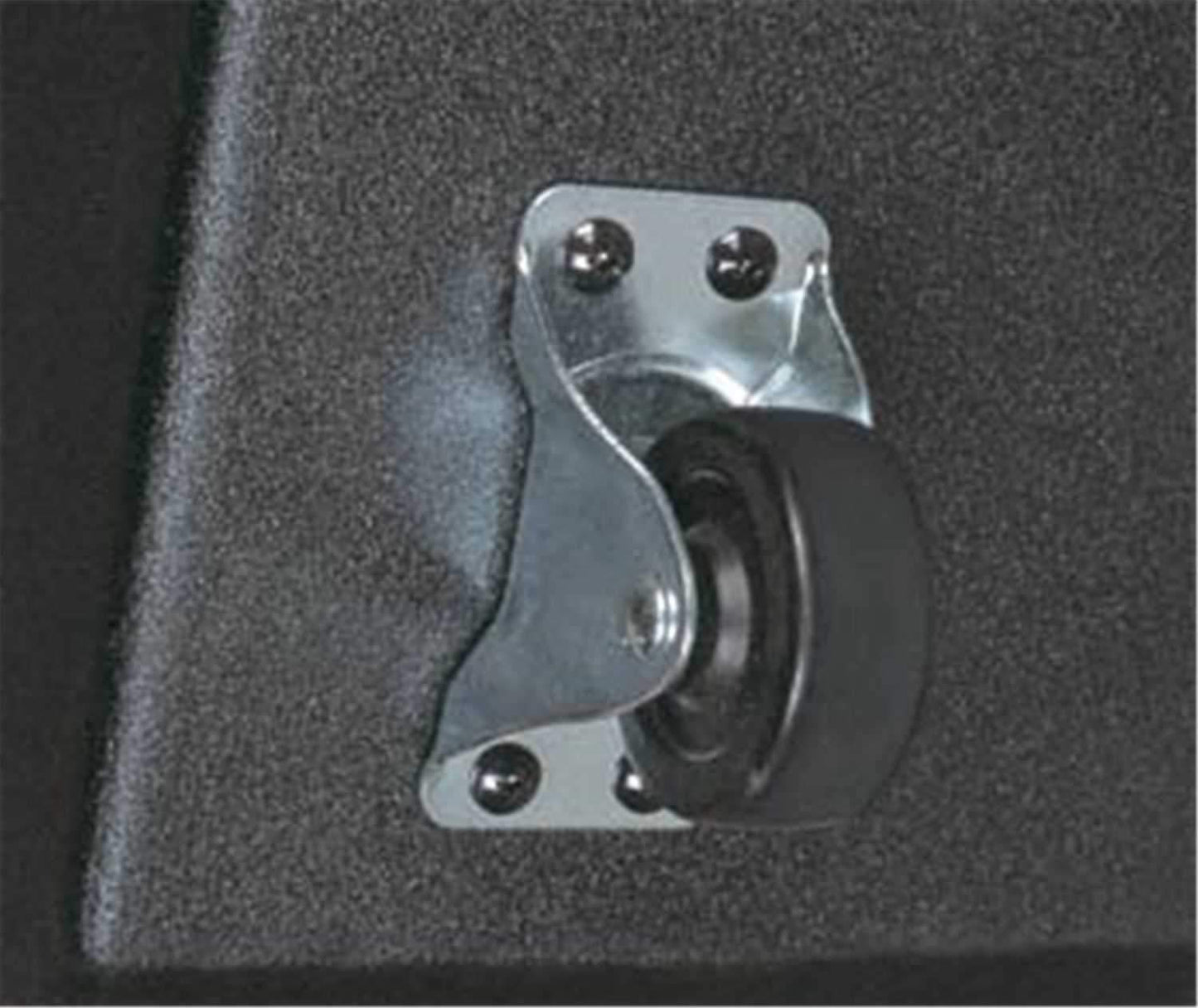

Hardware includes four steel inset handles, a steel top-mounted pole-stand adapter, a heavy-gauge curved steel grill and tilt-back wheels.
Features:
- System Type: Rear Horn Loaded Subwoofer
- Active or Passive: Active
- Program Power (Watts): 1500
- Max SPL (dB): 134
- Frequency Response (Hz +/- 3db): 45 - 150
- LF Driver(s): Single 18 inch w/ 4 inch voicecoil
- LF Program Power(Watts): 1500
- LF Protection: Thermal / Overcurrent / Clip
- Power Consumption (typ/max): 792/960VA (8A@60hz, 4A@50hz)
- Inputs - 1/4" Jacks: 2 line/speaker level inputs, 2 link (in/out)
- Inputs - XLR: 2 line inputs, 2 link (in/out)
- Level Controls: Master
- Other Controls / Features: Active Controls, Level, Low Pass Filter Frequency, Bass Boost Level
- Corners: Metal
- Feet: Rubber
- Bar Handles: 2 (Side), 1 (Rear)
- Pole Mount Adapter (1 3/8"-3.5cm): 1 (Top)
- Enclosure Materials: 15mm (5/8inch) 11-ply Russian Birch
- Grille: Perforated Metal
- Covering / Finish: Black Ozite (Carpet)
- Optional Covering / Finishes: Black Ultrathane Paint (LS800PB)
- Dimensions (DWH xbackW, inches): 23 x 27.5 x 32
- Dimensions (DWH xbackW, cm): 58.4 x 70 x 81.3
- Weight (lbs/kg): 137.3 / 62.3
