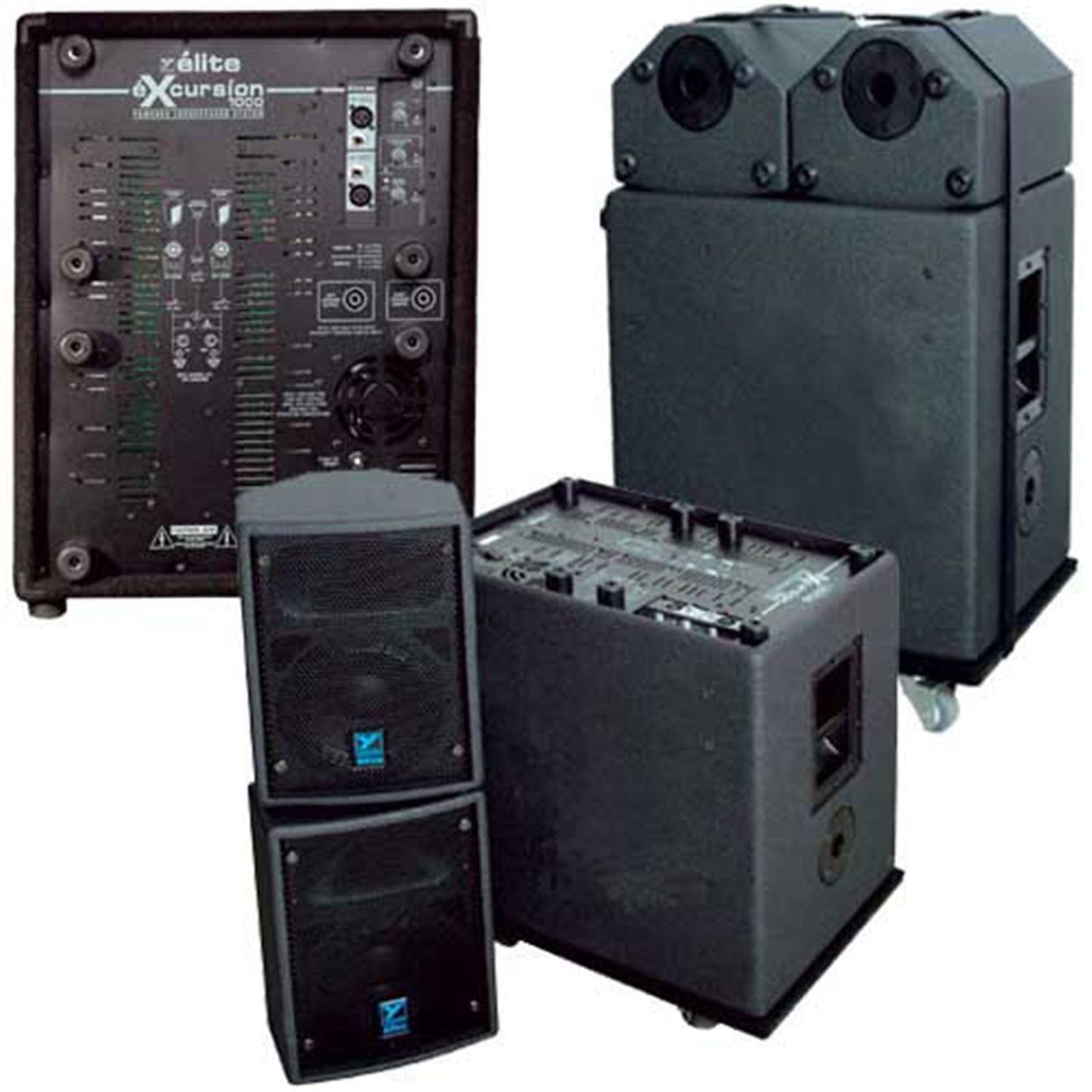

YORKVILLE EX-1 CARPETED SPEAKER SYSTEM
The simple concept behind the lite Xcursion1000 was to create a powerful, effective and highly mobile active stereo live PA / Club System centered around one 15-inch active subwoofer and two active 8-inch / 1-inch bi-amplified satellite loudspeakers.
The core of the lite Xcursion1000 is the single 15-inch loaded subwoofer that houses the input section, electronic crossover networks and five integrated power amplifier modules that power the entire Xcursion1000 system.
The Xcursion1000 system delivers over 950 watts total power. 650-watts is dedicated to the subwoofer, and 150-watts to each of the two satellite loudspeakers. To ensure system performance and clarity, the satellite speakers are bi-amplified (125-watts to each 8-inch driver and 25-watts to each 1-inch horn). The satellite speakers are connected to the subwoofer with two 8m Speakon four connector speaker cables that are included with the package. The system is powered by one AC line cord ensuring quick and convenient set-up and teardown, with a minimum of cabling and connectivity around the stage. True to Yorkville loudspeaker design, all of the cabinets in the lite Xcursion1000 are made with plywood, not MDF or composites.
Opto-limiter circuitry in the crossover network provides an unobtrusive and musical sounding compression that not only protects the speaker components, but also ensures balanced and clear reproduction from the satellite cabinets. The entire system can be connected to any mono or stereo mixer source through either XLR or 1/4-inch TRS balanced inputs. To ensure trouble free movement from Point A to Point B, the Xcursion1000 comes shipped with a detachable swivel caster dolly and Velcro tie down strap for the satellite cabinets. Unlike competitive system solutions, the caster kit from the lite Xcursion1000 does not remain attached to the subwoofer when the system is in use, eliminating caster buzz and rattle during live performances.
A complete, self contained and powered system with passive and active crossover networks, equalization, and separate stereo and subwoofer level control all built in, making the Xcursion Series the ultimate in compact live/DJ systems. A complete PA system that truly is Plug and Play.
Features:
- Ideal PA system solution for audiences of up to 300 people
- Complete PA system that truly is Plug and Play, all amplification is built-in
- Voiced for recorded music playback as well as live sound reinforcement applications
- XLR and 1/4-inch TRS balanced inputs connect easily to any mixer source
- Active crossover network and integrated power amplification creates a seamless balance between subwoofer and stereo full range bi-amplified loudspeakers
- System nests together for easy transportation and storage
- Ultra quiet, highly efficient, high output, low distortion, and lightweight compact PA solution
- Integrated bar handles and standmount adaptors
- Solid plywood cabinet construction
- Available in both Black Ozite Carpet (EX1) and Black Ultrathane (EX1B) painted finishes
- Removable caster kit
