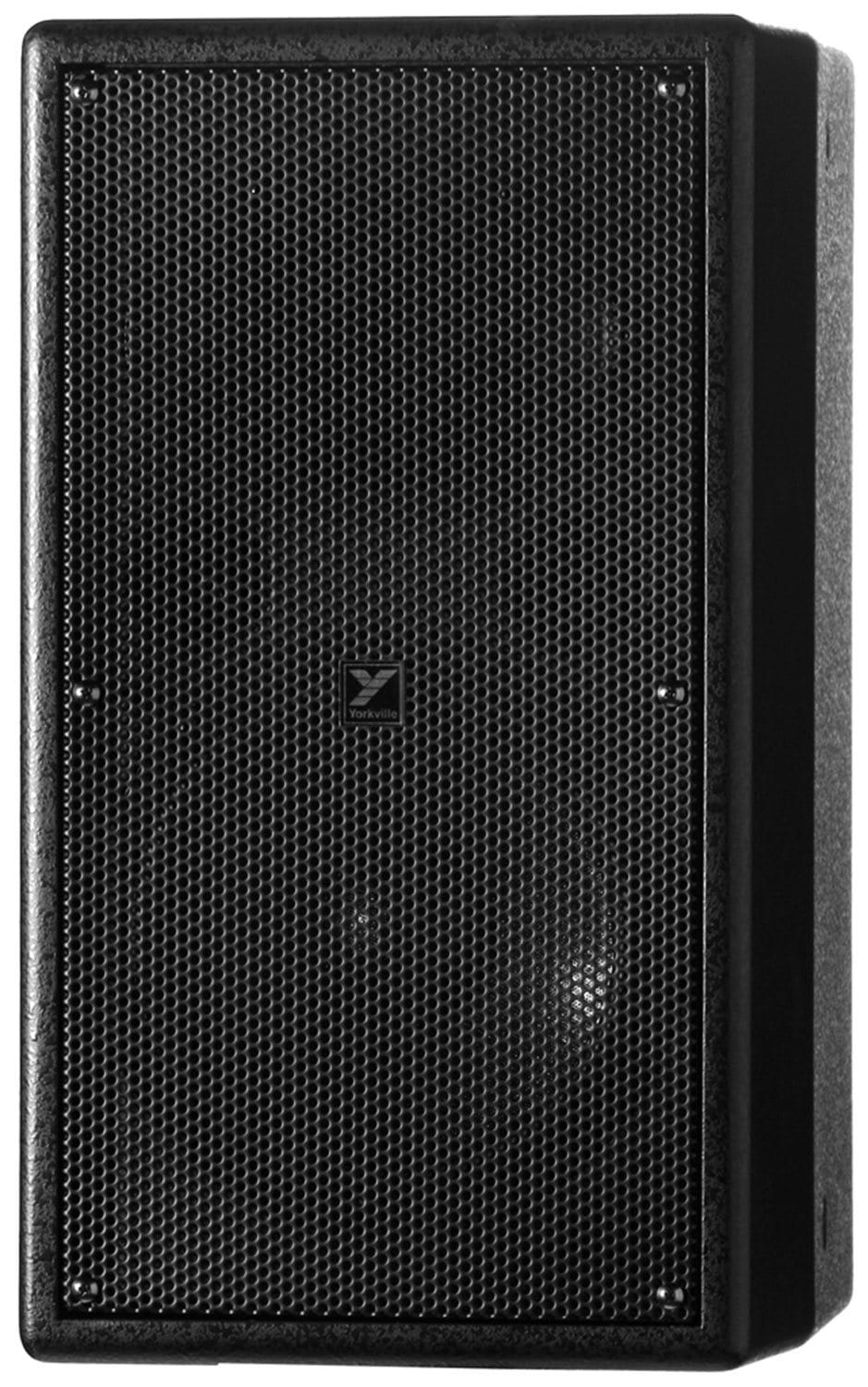

Yorkville C190 Coliseum 8-Inch Speaker
The compact 150W C190 is capable of delivering a full 70 to 20,000 Hz frequency response. This proven 8" woofer and horn design uses an injection molded 90 x 30° horn assembly with 1.4" titanium driver. Yorkville's ingenious self-resetting PTC high frequency protection circuit protects the high frequency components used in the C190. PTC offers serious advantages over protection schemes used in many loudspeaker cabinets. While always present in the signal path, remains inaudible until it becomes necessary for it to react, at which point it effectively reduces output to the horn, protecting it from damage due to excessive power input or signal distortion. Unlike a breaker it does not require a physical reset to allow signal back to the horn driver, and unlike a bulb or fuse, does not need to be replaced if the circuit is tripped, and the fuse is blown, making it the ideal high frequency protection scheme for an installation loudspeaker. A polemount socket and nine integrated 3/8" flypoints allow the C190 to be installed or flown easily and on virtually any angle without modification to the speaker. The all-metal grille protects the loudspeaker components while the all-metal input plate supports both 1/4" and binding post connectors.
Features:- 150W
- Ultra compact cabinet design
- 8" woofer / 1.4" titanium horn driver
- 90° x 30° horn
- Self resetting PTC high frequency driver protection
- Nine integrated 3/8" flypoints
- 3/4" MDF cabinet construction
- All metal grille / integrated standmount adaptor
- 1/4" and binding post inputs
