Description

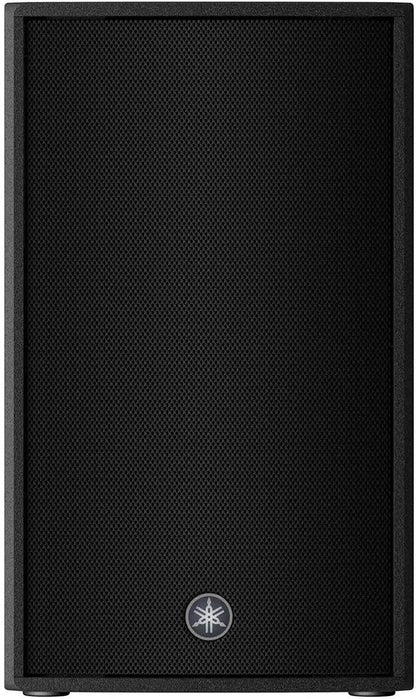

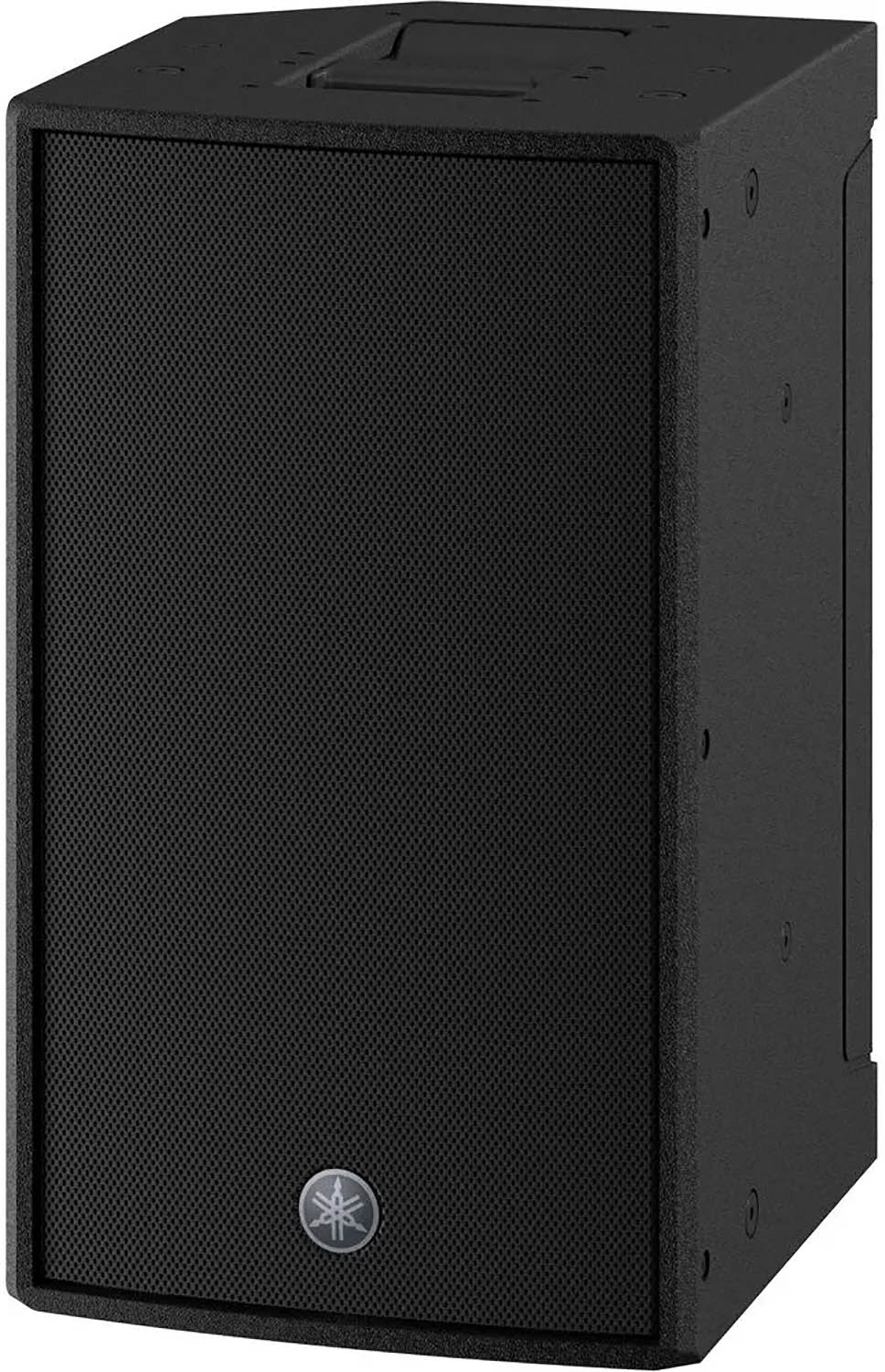

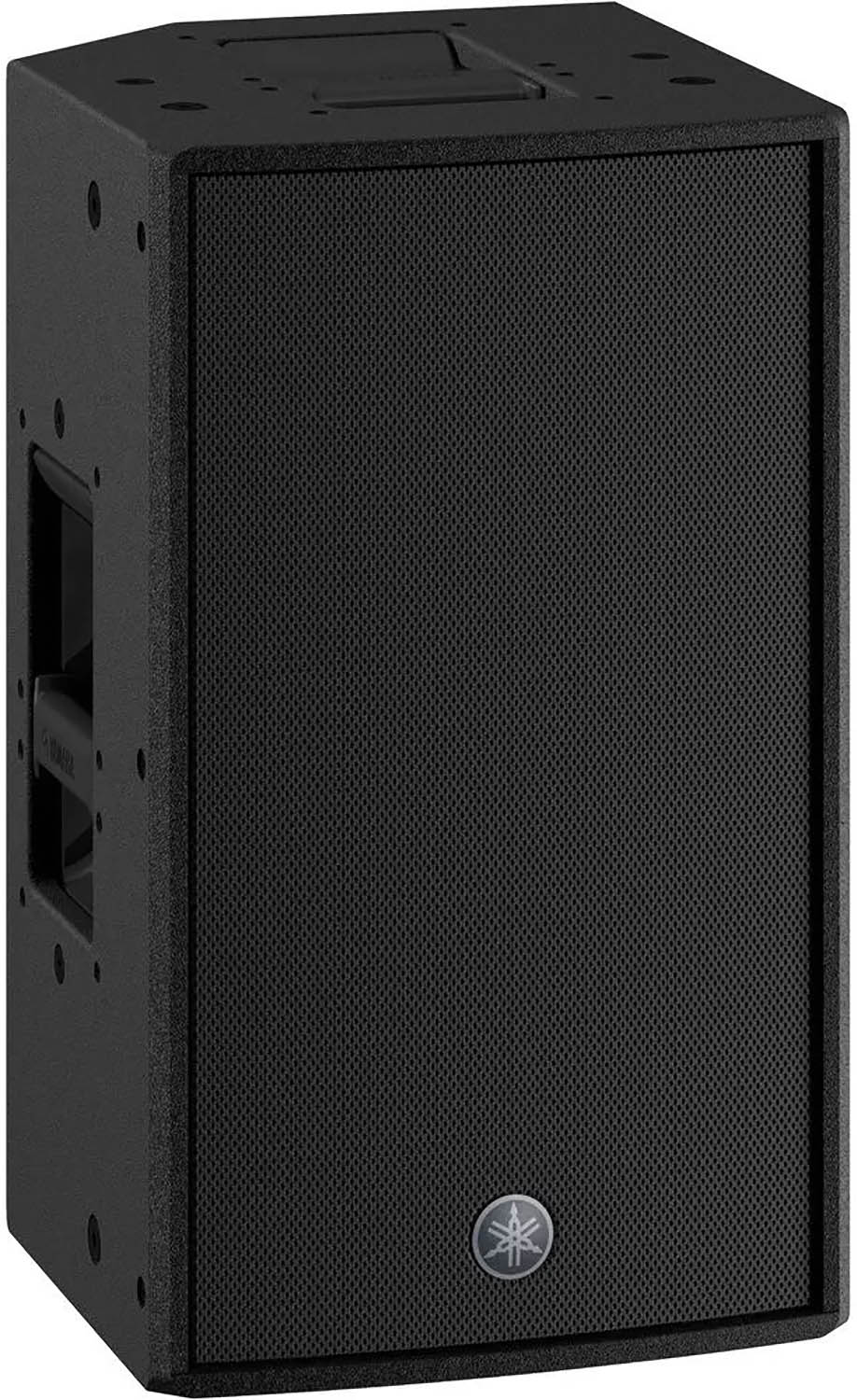

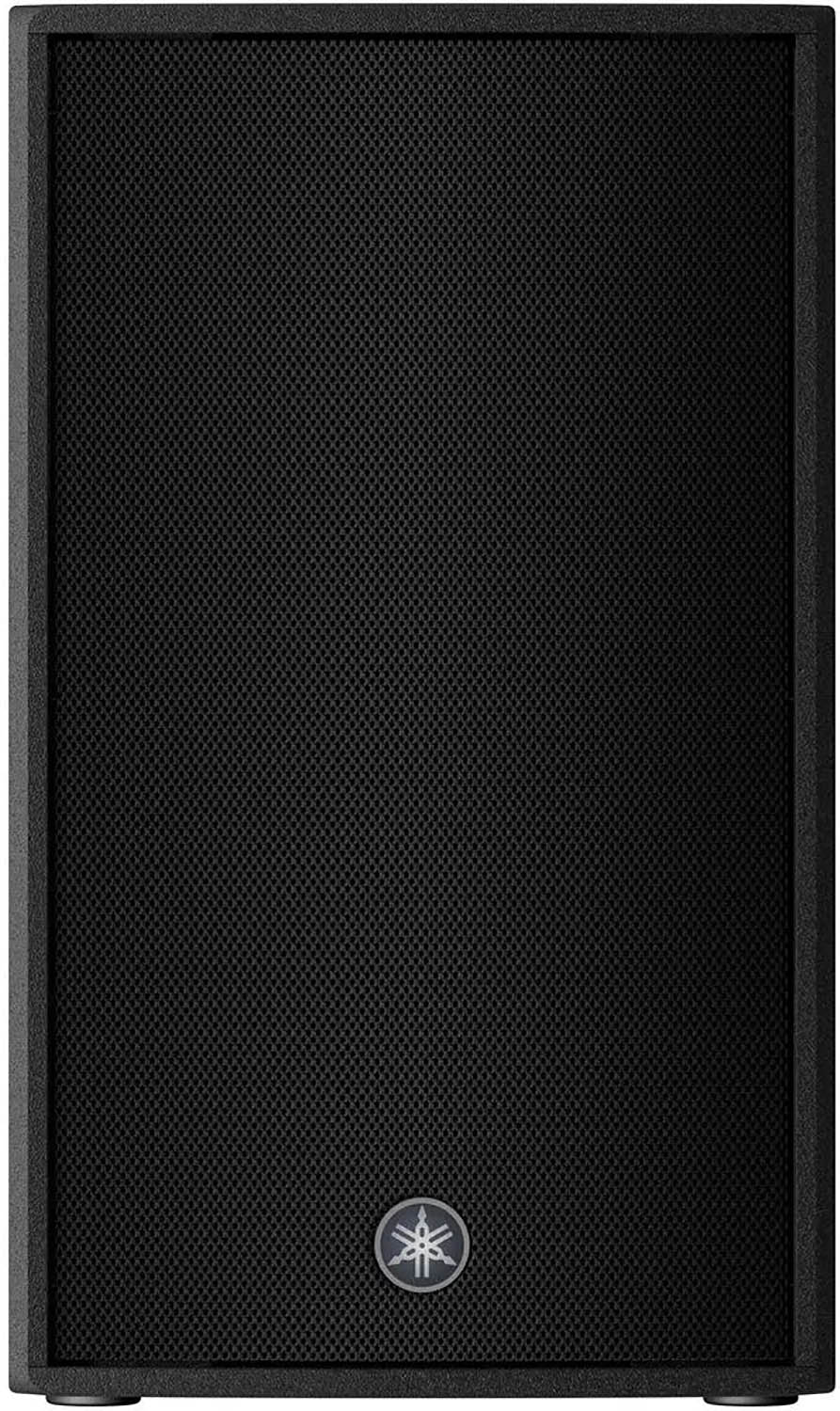

Yamaha DZR10 10 Inch LF / 2 Inch HF 2000 Watt Powered Speaker
The Yamaha DZR10 is a 2-way powered loudspeaker designed to deliver exceptional sound quality and performance. Featuring a high-frequency transducer with a 2-inch voice coil, titanium diaphragm, and neodymium magnet, and a low-frequency transducer with a 3-inch voice coil, this speaker ensures crystal-clear sound reproduction even at high volumes. With a 2,000-watt Class D amplifier, advanced FIR-X tuning, and D-Contour technology, the DZR10 offers tight low-end response, clarity in the mid-bass and vocal range, and superior sound quality for any application. Its lightweight, durable plywood cabinet with a premium-grade polyurea coating is perfect for both portable and permanent installations.
Features:

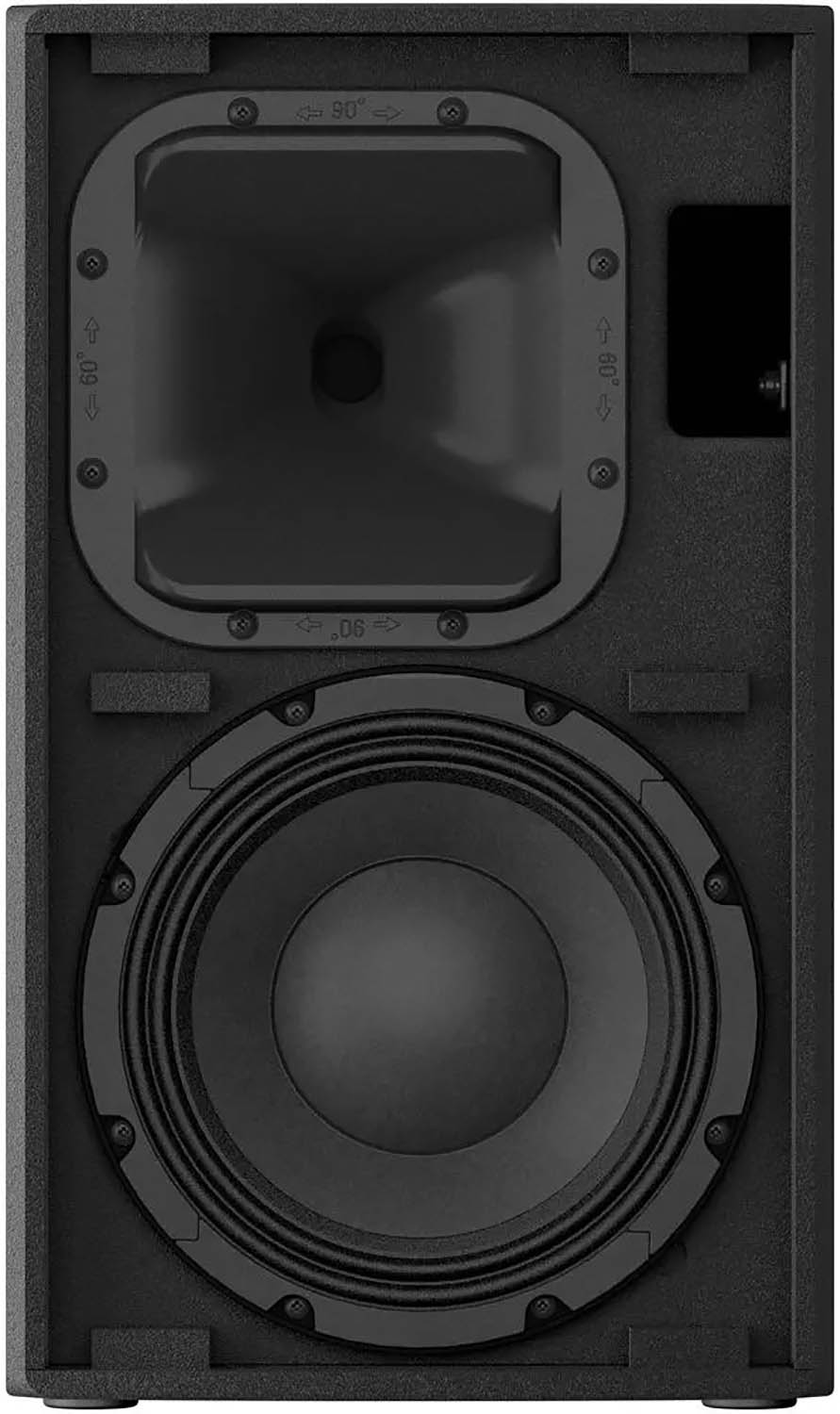

- 2-way powered loudspeaker with 2" HF and 10" LF drivers
- 2,000-watt Class D amplifier with a frequency range of 44Hz–20kHz
- FIR-X tuning minimizes phase distortion for crystal-clear sound
- D-Contour multiband compressor maintains clarity at high output levels
- Rotatable horn for vertical or horizontal mounting
- Universal switching mode power supply for stable operation
- Lightweight, durable plywood cabinet with polyurea coating
Specifications:
- Power Configuration: Bi-amped
- LF Driver: 10" cone with 3" voice coil, neodymium magnet
- HF Driver: 2" compression driver with 1" throat
- Power Output: 2,000W Peak (1,300W Continuous)
- Frequency Range: 44Hz–20kHz (-10 dB)
- Maximum SPL: 137 dB @ 1m
- Inputs: 2 x XLR-1/4" combo (line in)
- Outputs: 2 x XLR (thru/output)
- Signal Processing: PEQ, Delay, Routing, 8 User Presets
- Enclosure Material: Plywood with polyurea coating
- Mounting Options: Pole socket (2 x 35mm), Fly points (8 x M10, 2 x M8), Floor wedge
- Dimensions: 21.1" H x 12.4" W x 13.6" D
- Weight: 39.5 lbs.
