Yamaha DTX750K Electronic Drum Kit

Featuring all 3-zone DTX-PADs (with TCS head for superior feel), real hi-hat controller, and large 3-zone choke-able cymbals your playing feels so natural around the entire kit, even when integrated with acoustic drums. The DTX700 drum trigger module is "ready for the gig" with outstanding preset kits, as well as 64MB flash memory for loading user samples. In addition to the on-board groove tools, the module is equipped with 2 USB ports for expansion and connectivity with a computer and USB memory device, you can even import MIDI and audio data to the module. Check out the DTX750K and find out why so many world renown DTXdrums artists say that Yamaha DTX-PADs are the only electronic drum pads they will ever play.

• Module: DTX700
• Snare: XP100SD
• Tom: XP80 x 2
• Floor Tom: XP80
• Bass Drum: KP65
• Hi-Hat: RHH135 + HS650A
• Crash Cymbal: PCY135 x 2
• Ride Cymbal: PCY155
• Rack: RS700

• DTX-PAD: Snare,Toms
• Snare diameter: 10"
• 3-zone pads: Snare,Toms
• Realtime control knob: Snare
• Real Hi-Hat System: Yes
• Hi-Hat stand: HS650A
• 3-zone cymbals: Crash x2, Ride

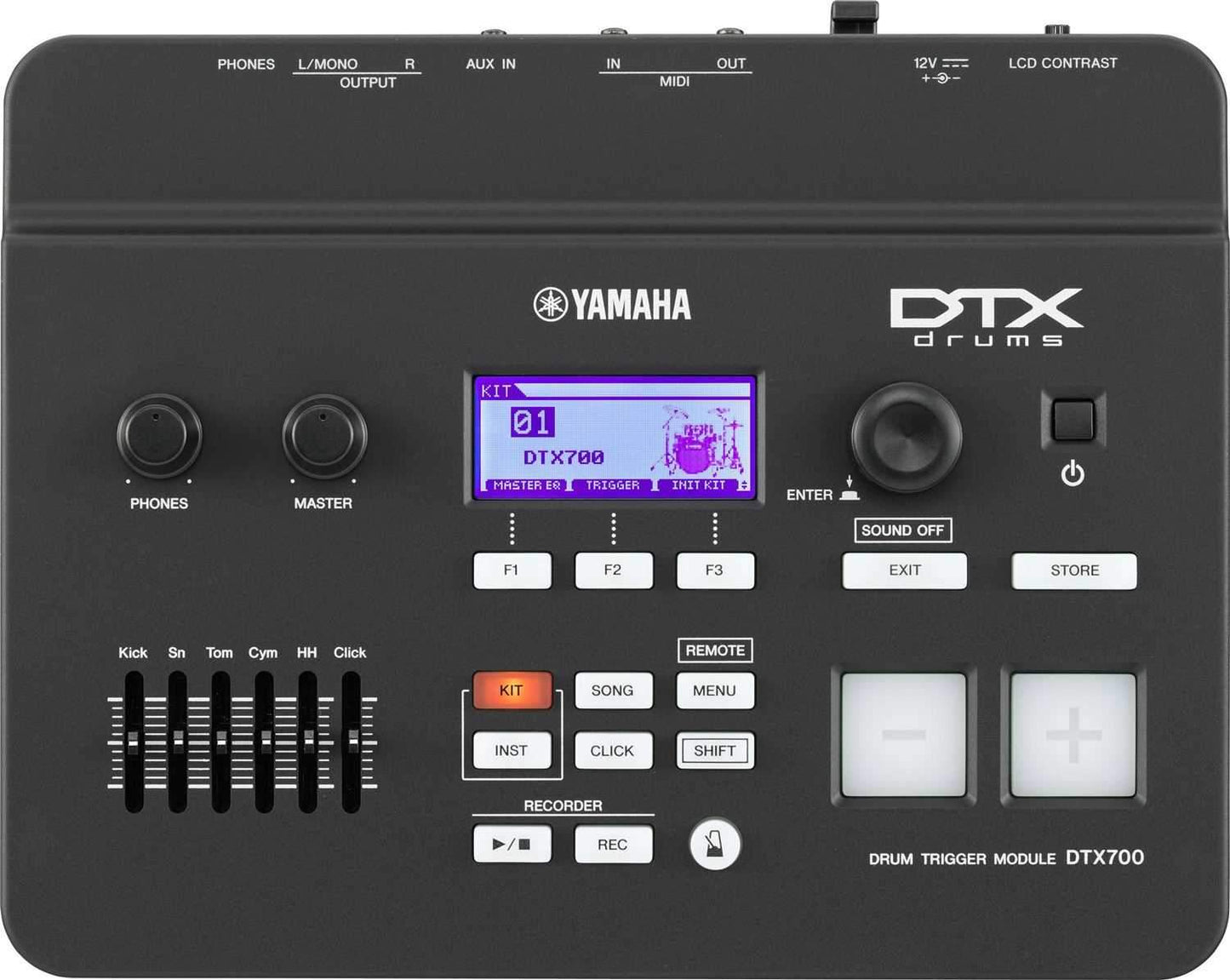

• Trigger Module: DTX700
• Rack System: RS700
• Pad Set: DTP750P (PAD SET) includes: XP100SD, XP80 x 3, KP65, SS662, DTP750C (PAD SET) includes: PCY135 x 2, PCY155, RHH135, HS650A, CH750 x 2, CHH755

• Width: 277 mm (10-29/32 inch)
• Height: 213 mm (8-25/64 inch)
• Depth: 95 mm (2-3/4 inch)
• Weight: 1.5 kg (3.31 lbs)

• Maximum Polyphony: 64 notes
• Voices: Drum and percussion: 1,268, Melodies: 128
• Effects: Reverb: 6, Chorus: 6, Variation: 42, Kit EQ: 4 band, Master EQ: 3 bands
• Drum kits: Preset: 50, User: 10 all of which may be edited and overwritten

• Note Capacity: Approx. 152,000 notes
• Note Resolution: 480 ppq (parts per quarter note)
• Song recording type: Real-time replace
• Song tracks: 1 track
• Songs: Demo: 2, Practice: 44, Pad: 17, User: 30 * all of which may be edited and overwritten
• Sequence formats: Proprietary, SMF format 0
• Click: Tempo: 30 to 300 BPM, Tap Tempo supported.
• Beat: 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16
• Timing: Accents, Quarter note, Eighth note, Sixteenth note, Triplet
• Training Functions: Measure break, Groove check, Rhythm gate

• USB TO DEVICE/TO HOST
• OUTPUT [L/MONO] (Standard mono phone)
• OUTPUT [R] (Standard mono phone)
• Trigger Input 1 to 8, 11 (Standard stereo phone
• L: Trigger Input
• R: Rim Switch)
• Trigger Input 9 and 10 (Standard stereo phone
• L: Trigger Input
• R: Trigger Input)
• HH-KICK (Standard stereo phone)
• HI-HAT CONTROL (Standard stereo phone)
• AUX IN (Stereo Mini)
• PHONES (Standard stereo phone)
• MIDI IN/OUT

Accessories: Power Adaptor (PA-150, or an equivalent), Module holder, Module holder fastening screws x 4, Owner's Manual, Data List, DVD-ROM (Cubase AI)

• Samples: 500
• Sample Data Bits: 16 bits
• Sampling Time: Mono/Stereo: 44.1kHz: 23 sec., 22.05kHz: 46 sec., 11.025kHz: 1 min. 32 sec., 5.5125kHz: 3 min. 4 sec.
• Sample formats: WAV, AIFF
