Yamaha DTX520K Electronic Drum Kit
Utilizing the TCS head for superior stick feel, the XP80 provides snare head, open rimshot, and closed rimshot voices in each of the three zones for authentic snare expression. The ride and crash cymbals both feature cup, bow and edge voices and are "choke-able". The realistic sounds of the DTX500 module lets you sound your best, and with the advanced practice tools and easy song recorder you will be getting better all the time.

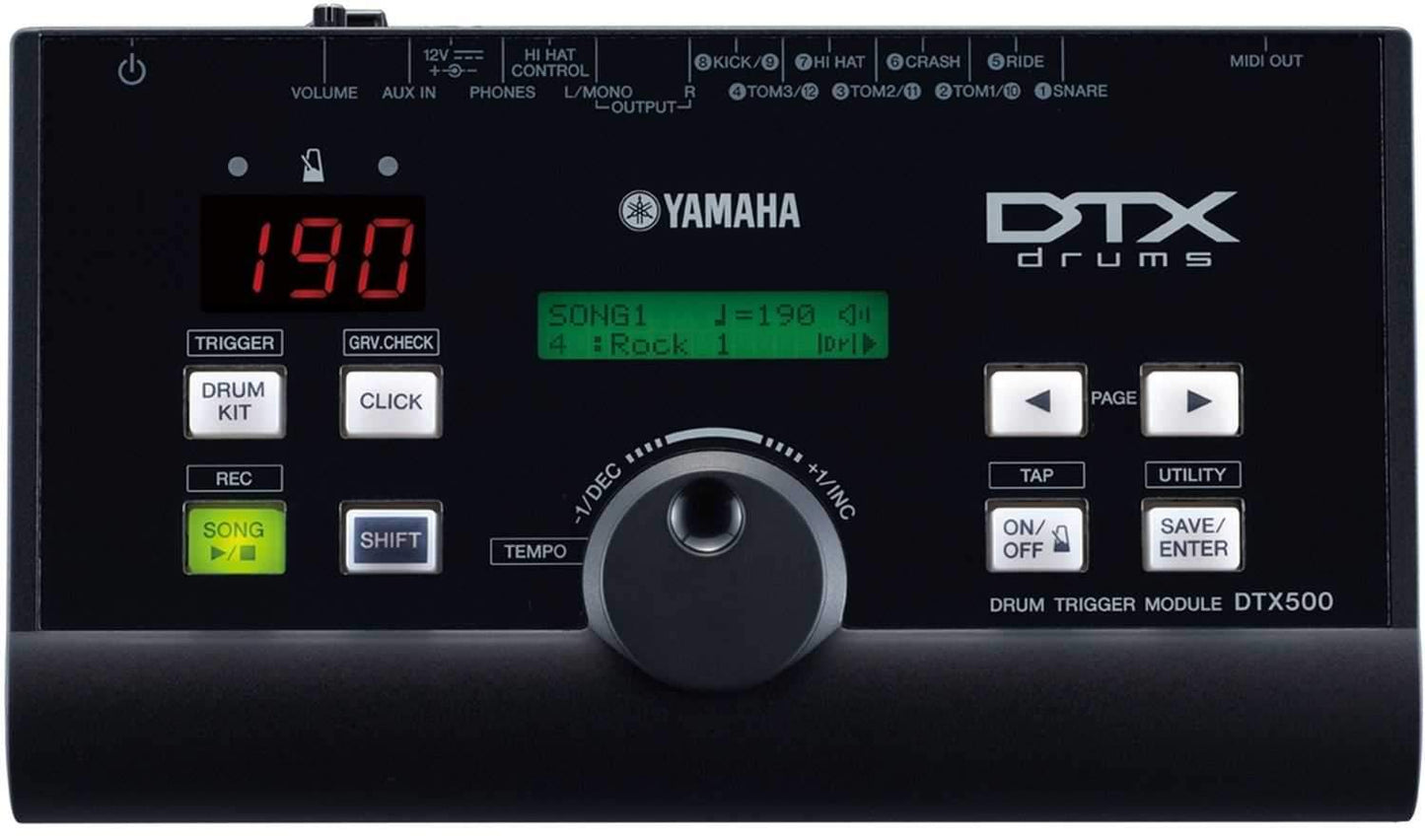

- Module: DTX500
- Snare: XP80
- Tom: TP65 x 2
- Floor Tom: TP65
- Bass Drum: KP65
- Hi-Hat: PCY100 + HH65
- Crash Cymbal: PCY100
- Ride Cymbal: PCY135
- Rack: RS500
- Bass Drum Pedal: No
- DTX-PAD: Snare
- Snare diameter: 8"
- 3-zone cymbals: Crash, Ride
- Real Hi-Hat System: No
- Trigger Module: DTX500
- Rack System: RS500
- Pad Set: DTP520P (PAD SET) includes: XP80, TP65 x 3, KP65, DTP520C (PAD SET) includes: PCY135, PCY100 x 2, HH65, HH Holder
- Width:252 mm (9-15/16 inch)
- Height: 147 mm (5-13/16 inch)
- Depth: 52 mm (2-1/16 inch)
- Weight: 898 g (2 lbs)
- Maximum Polyphony: 32 notes
- Voices: Drum and percussion: 427, Melodies: 22
- Effects: Reverb: 19, Master EQ: 2 bands
- Drum kits: Preset: 50, User: 20
- Note Capacity: Approx. 16,000 notes
- Note Resolution: 96 ppq (parts per quarter note)
- Song recording type: Real-time replace
- Song tracks: 1 track
- Songs: Demo: 3, Practice: 41, Pad: 19, User: 20
- Click: Tempo: 30 to 300 BPM, Tap Tempo supported.
- Beat: 1/4 to 9/4
- Timing: Accent, Quarter note, Eighth note, Sixteenth note, Triplet
- Training Functions: Measure break, Groove check, Rhythm gate
- OUTPUT [L/MONO] (Standard mono phone)
- OUTPUT [R] (Standard mono phone)
- Trigger Inputs 1, 5, 6, 7 (Standard stereo phone
- L: Trigger Input, R: Rim Switch)
- Trigger Inputs 2, 3, 4, 8 (Standard stereo phone
- L: Trigger Input, R: Trigger Input)
- HI-HAT CONTROL (Standard stereo phone)
- AUX IN (Stereo Mini)
- PHONES (Standard stereo phone)
- MIDI IN/OUT
