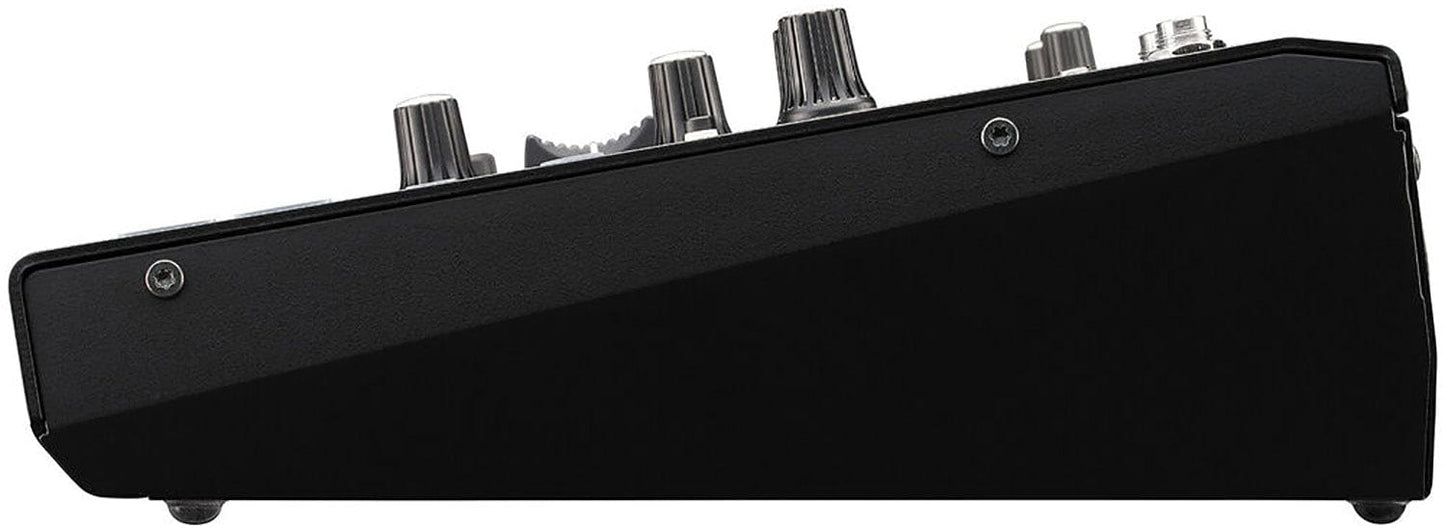

Yamaha AG08-B 8-Channel Mixer/USB Interface for IOS/Mac/PC - Black

As the flagship model of Yamaha’s second-generation AG series lineup, the AG08 combines all the essential functionality of its predecessors with a versatile selection of practical new features to give you a powerful all-in-one streaming station. By integrating more flexible I/O and USB routing options, expanded footswitch functionality, as well as additional DSP effects and improved internal circuitry for class leading sound, the AG08 is able to support an impressive depth of live streaming applications, as well as offline audio content creation. From single-user talking, gaming, ASMR, voice acting, or vocal/instrument performances, to multiple personnel applications even on the scale of a full-blown variety show, the real-world, real-time functionality of the AG08 will leave your audience wanting more.

Features:

• Two condenser microphones can be used simultaneously
• +48 V phantom power on CH1-2 input for condenser mics or Dl boxes
• Hi-Z input for guitars on CH2
• High resolution (24-bit, 192 kHz) 2-track audio recording and playback
• 4-pole mini input/output (TRRS) to support a wider range of streaming applications
• Flexible inputs and LOOPBACK function ideal for live streaming or recording
• Mute button for convenient live streaming
• Easy control and pro sound with 1-TOUCH effects (COMP/EQ, REVERB and Amp Simulator)
• AG Controller (Windows/Mac/iOS ) for precise parameter control
• Windows/Mac support by USB-C connection
• iOS connectivity via Apple Camera Adapter (requires external USB power supply)
• Android supported by 4-pole mini input/output (TRRS)
• USB-C power input (5 V DC, 900 mA)
• Cubase Al, WaveLab Cast, Cubasis LE and Rec'n'Share are available

Specifications:

• Input Channels
  • Mono (MIC/LINE): 2 - CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8"") stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) (*CH1 input and Headset mic cannot be used simultaneously)
  • Stereo (LINE): 3 - CH3/4: LR Stereo Phone, CH5/6: LR Stereo RCA/3.5 mm stereo mini (AUX), CH7/8: 4-pole mini in/out (TRRS)
  • AUX: 1 - Stereo mini
  • Smartphone: 1 - 4-pole mini input/output (TRRS)
  • USB: 1 - USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, FROM DAW)
• Output Channels
  • Phones: 2 - CH1: 1/4" (6.3mm) Stereo / HEADSET mini PHONES (*Cannot be used simultaneously), CH2: PHONES
  • Smartphone: 1 - 4-pole mini input/output (TRRS)
  • Monitor Out: 2 - LR Stereo: XLR, 1/4 TRS Phone
  • Stereo Out: 1 - MIX: LR stereo TRS Phone
  • USB: 1 - USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, TO DAW), 8 Channels Direct Out (*In Windows environment, ASIO channel and USB 2.0 exist independently.)
• Bus: 4 Stereo
  • Functions: MUTE button x5, CH1 FX preset button x4, Sound pad x6, +48 V phantom power x2, GUITAR(HI-Z) x 1, PAD x2, GAIN HIGH/LOW x1, LINE/USB x3, STREAMING ON/OFF x3, CUE x1, MIX MINUS (CH1, 2)
  • On-board DSP Processors: Voice Changer, Amp Simulator, COMP, EQ, REVERB (SPX Reverb), Delay, Ducker, Maximizer (*Detail is operated in AG08 Controller)
  • USB: 8 IN / 14 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C
  • Power Requirements: DC 12 V, 1.5 A / USB-C 5 V, 1.5 A
  • Power Consumption: Max. 7.5 W
  • Dimensions (H x W x D): 3.5 x 11.5 x 8.8 (88 x 290 x 222mm)
  • Net Weight: 4.9lbs (2.2kg)
  • Operating Temperature: 0 to 104°F (0 to + 40 °C)
