Warm Audio EQP-WA Pultec Tube Equalizer

The EQP-WA is a re-creation of the most renowned tube Equalizer in studio history, the "Pultec EQP-1A". Not only does the look and feel of the EQP-WA match the classic Pultec units, but the sonic quality has been carefully considered by using top-end components such as CineMag transformers and premium tubes. This fully discrete Tube EQ can pull euphoric sonics from any track and bring a brilliance and luster to mixes that’s nearly impossible to achieve inside-the-box. We are proud to have once again redefined the industry standard by bringing a fully professional-grade equalizer to the market at a price that's just as remarkable as the unit.

Our goal was to make a equalizer affordable for the first time, without compromising the quality and design parameters that make this type of equalizer so desirable.

Premium Components

The EQP-WA is a high-voltage tube equalizer, utilzing CineMag USA Transformers and two premium vacuum tubes by Tung-Sol.

A Two Tube Operation

The EQP-WA operates on two tubes: one 12AX7 and one 12AU7. We proudly use Tung-Sol brand tubes in this product for their sonic richness and 'open' sound. These 2 tubes are socketed for easy swapping and replacement.

Technical Specification

  • UTILIZES PREMIUM GRADE INPUT AND OUTPUT CINEMAG USA TRANSFORMERS.
  • TUBE EQUALIZER BASED ON THE CLASSIC "PULTEC" EQP-1A.
  • PREMIUM HIGH VOLTAGE 12AX7 AND 12AU7 TUBES.
  • CINEMAG INDUCTOR EQ SECTION.
  • EQ SECTION IS BYPASSABLE - SIGNAL STILL PASSES THROUGH TUBES AND TRANSFORMERS FOR WARMING EFFECT.

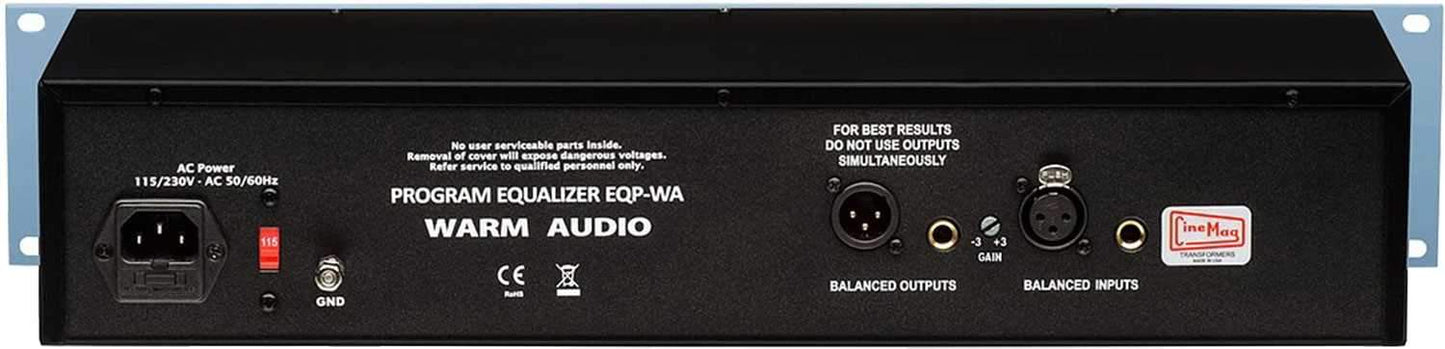

  • XLR AND TRS TRANSFORMER BALANCED OUTPUTS.
  • FLAT FREQUENCY RESPONSE FROM 20 HZ - 50 KHZ.
  • XLR AND TRS TRANSFORMER BALANCED INPUTS.
  • NO INSERTION LOSS - LOSS RESTORED BY TUBE AMPLIFIER.
  • 5 ADDED FREQUENCY POINTS FOR GREATER FLEXIBILITY.
  • SWITCHABLE 115/230 VOLT IEC POWER INLET.
  • DIMENSIONS: 19 X 3.5 X 6 INCHES - 2RU RACK MOUNTABLE.
  • LOW FREQUENCY BOOST - 20, 30, 60, 100, 200, 400, 800 HZ - 12 DB.
  • LOW FREQUENCY CUT - 20, 30, 60, 100, 200, 400, 800 HZ - 18 DB.
  • HIGH FREQUENCY BOOST - 3, 4, 5, 8, 10, 12, 16 KHZ - 18 DB.
  • HIGH FREQUENCY CUT - 3, 4, 5, 10, 20 KHZ - 14 DB.
  • BOOST AND CUT CONTROLS CAN BE USED SIMULTANEOUSLY FOR PHASE EFFECT.
