Theatrixx XVVHDMI2SDI HDMI to SDI Video Converter

Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment. Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows, and tours and often have a critical role. Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the xVision Video Converters.

Features:

• Integrated power supply with locking PowerCON connector. Never rely on a cluster of wall-warts again.
• Built-in convenience 120 V outlet to power nearby projector, TV, laptop, small video projector… Power bar to power both the converter and device not required anymore.
• Magnetic stacking system and non-skid rubber pad. Saves at least 10 gaffer tape rolls a year.

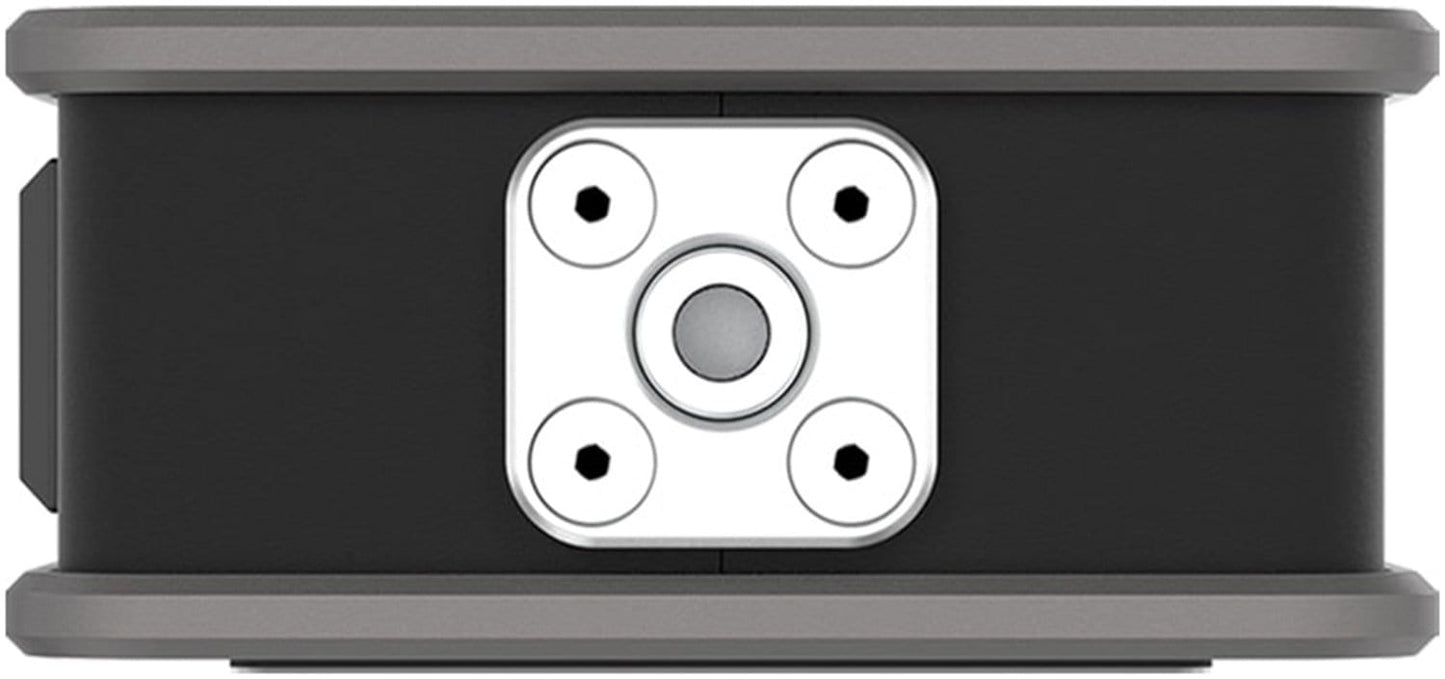

• Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter, and belt adaptor.
• Rugged, Tour-ready, and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
• Plug-n-play operation; No dipswitches, buttons, or menus to fumble with : It just works.
• Clear and ample status LED indicators for quick troubleshooting.
• HDMI input tested and compatible with Apple computers and iPad.
• Easy on-the-field identification with unique color and alphabetic coding system.
• Locking HDMI port prevents accidental disconnection.
• Integrated SDI splitter : Dual SDI outputs.
• Proudly designed and assembled in Canada.

Specifications:

• Connections
  • Video Input: 1 x HDMI 1.2 type A with locking system
  • Video Ouput: 2 x 3G/HD/SD SDI BNC
• Supported Signals
  • 3G Format Support: 1080p50, 1080p59.94, 1080p60.
  • HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
  • SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
  • SDI Video Sampling: 4:2:2 and 4:4:4
  • SDI Audio Sampling: Sample rate of 48 kHz and 24-bit
  • SDI Color Space: YUV and RGB
  • SDI Auto Switching: Automatically detects incoming signal format
  • SMPTE Standards: 425 M Level A & B, 424 M Level A, 292 M, 259 M
• Physical
  • Height: 50 mm (1.97 in)
  • Depth: 180 mm (7.08 in)
  • Width: 107 mm (4.21 in)
  • Weight: 1 kg (2.2 lbs.)
  • Alternate Form Factor: Also available as a Reversible Module
• Environmental
  • Relative Humidity: 0% to 90% non-condensing
  • Operating Temperature: 0-40 °C
• Power Requirements
  • Power Supply:
    • Built-in power supply
    • PowerCON input
    • Edison Nema 5-15 output (loop-thru)
  • Power Consumption: 15W
  • Voltage Range: 100-120V, 50-60Hz (100-240V, 50-60Hz available with PowerCON True1)
  • Courtesy Outlet: Max 10A, same voltage as input
