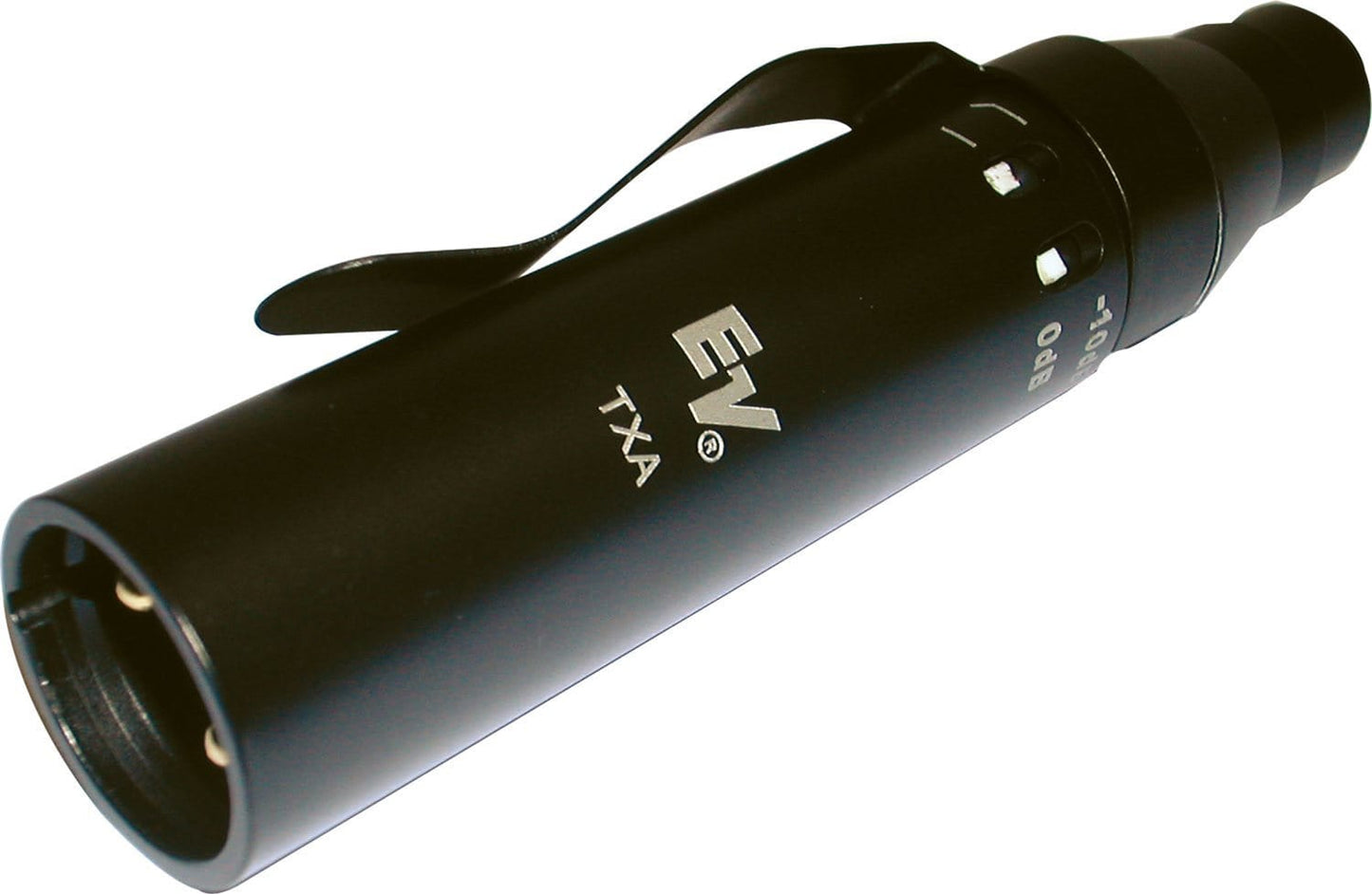

Telex TXA TA4F To XLR Adaptor
The TXA is designed to enable the use of lavalier, head-worn and other TA4F-terminated Electro-Voice professional microphones in a wired configuration. Using standard phantom power through the TXA ensures the same high-quality audio performance that you expect using Electro-Voice microphones over wireless systems.
Features:- Enables use of Electro-Voice lavalier and headworn microphones in a wired configuration
- Designed for vocal, speech, and instrument use
- Selectable high-pass filter
- -10 dB attenuation switch
- Convenient, optional belt clip
- Frequency response: 20 Hz - 20 kHz
- Distortion (THD, 1 kHz): <1% at -4.8 dBV, <1% at 4.7 dBV; -10 dB pad engaged
- Low-frequency roll-off: -6 dB at 100Hz
- Attenuation: 0 or -10 dB at 1000 Hz
- Power requirements: 9 - 52 V Phantom Power
- Input: TA4M
- Output: XLRM
- TA4M pinout: pin 1: ground, pin 2: microphone signal, pin 3: +5VDC bias, pin 4: not connected
- Maximum microphone current supply: 2.0 mA
- Included accessories: belt clip
- Color: black
- Weight: 58.5 g (2.06 oz)
