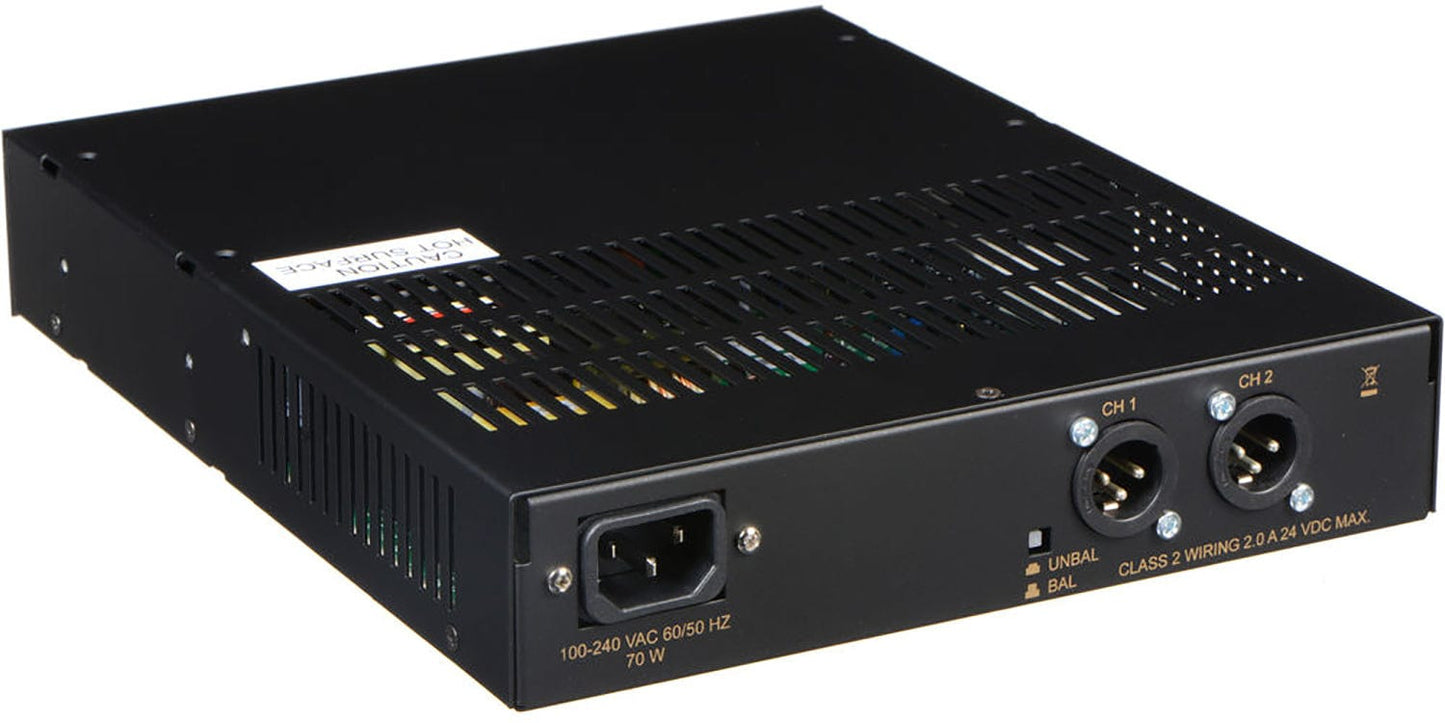

Telex PS-2001L Power Supply for 2-Channel RTS Intercoms
The Telex PS-2001L is a 2-channel 2.0-amp switching power supply housed in a 1/2-space 1RU metal chassis, designed for use with the patented Telex Audiocom series of wired intercom user stations. The unit is equipped with switchable balanced or unbalanced XLR connectors, and a front panel channel combine or isolate switch.
Features:
- 2-channel 1/2-space rackmount or desktop switching power supply for Telex Audiocom wired intercom user stations
- Switchable Balanced/Unbalanced XLR connectors for Audiocom or Clearcom system operation
- Front Panel Combine/Isolate switch enables combined audio signals of both channels to form single audio channel in Combine mode, or two independent user audio channels in Isolate mode
- Front panel independent 1 and 2 channel status indicators show green for normal operation, red for overload or short circuit activity
- Overload and short circuit protection circuitry with automatic reset
- Non-marring rubber feet supplied for desktop use
Specifications:
- Number of Channels: 2
- Input Power: 100 - 240VAC, 50/60Hz
- Output Power: 21VDC +/-1V, 2A
- Connectors:
- 2 x 3-pin XLR Male, Balanced/Unbalanced
- 1 x 3-prong Power Cable In
- Dimensions: 1.75 x 8.25 x 10.3" (44.5 x 209.5 x 261.9mm)
- Weight: 2.5 lb (1.13 kg)
- Packaging Info:
- Package Weight: 5.5 lb
- Box Dimensions (LxWxH): 12.5 x 11.8 x 2.8"
