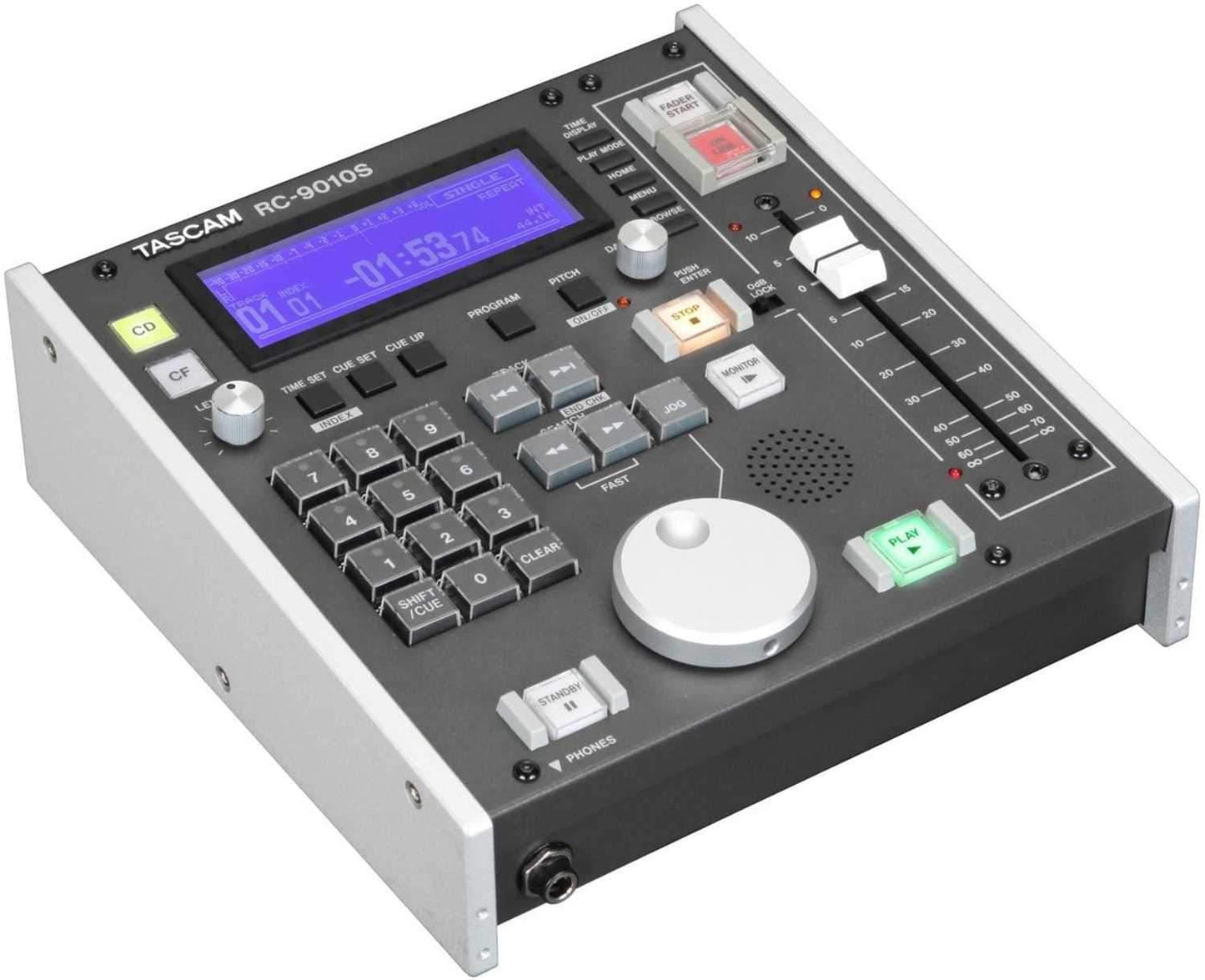

Tascam Remote Control for CD-9000
The RC-9010S is a remote control designed specifically for Tascam's CD-9010 and CD-9010CF Broadcast CD Players. With the combination of the RC-9010S and CD-9010CF/CD-9010, 24-bit high-resolution monitoring and signal-to-noise ration is maintained at lower-volume playback. It features a digitally controlled 100mm fader that offers degradation-resistance and an ideally-shaped aluminum jog wheel with special attention paid to producing an ergonomic design
The frequently used function keys on the RC-9010S feature materials that are able to withstand up to several million cycles. The transport keys are illuminated, and the operation keys are ideally placed based on the evaluation of operators in the broadcast industry.
The connection between the CD-9010CF/CD-9010 and RC-9010S needs only one dedicated cable to provide manageability and portability. The audio signal lines are carefully shielded to avoid interference from other command signal lines in the cable and prevent noise regeneration.
Features:- Key layout suitable for broadcast-use
- Long-life and high-durability keys and fader
- Half-rack size
- Large dot-matrix LCD same as CD-9010CF/CD-9010
- Illuminated keys for transport
- High-performance 128 pulse optical JOG dial
- 10 keys for time search and index search and cue memory
- Online function
- 100mm fader with 0dB lock function
- Built-in monitor speaker
- Phones: 6.3mm 1/4-inch stereo phone jack
- Max output level: 45mW + 45mW (1kHz, THD 0.1%, 32ohms loaded)
- Speaker output: Monaural
- Max output: 1W
- To player unit: D-sub 15-pin
- Power: Supplied by main unit
- Power consumption: 3.6W
- Dimensions (W x H x D): 220 x 77.2 x 227.6 mm
- Weight: 2.4kg
